Retail Store Sound System with 28 JBL Control 16C/T In-Ceiling Loudspeakers and Mixer Amplifier

Retail Store Sound System with 28 JBL Control 16C/T In-Ceiling Loudspeakers and Mixer Amplifier

This JBL retail store sound system is the ideal system for medium to large coverage areas such as small grocery stores or home goods retailers where high-quality audio can be used to enhance the customers' overall shopping experience.

The JBL Control 16C/T compact 6.5" speaker is designed to provide excellent sound quality for a wide variety of medium to high volume applications such as music cafes, business music systems, retail stores, music/ paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more. The speaker delivers consistent sound quality for listeners located both off and on axis. The high technology 6.5" low-frequency driver is designed with a lightweight, high temperature anodized aluminum voice coil former and high-temperature grade voice coil for stable performance and reliability under long-term high power working conditions. The butyl rubber surround provides long-term durability and excellent sonic damping while the polypropylene cone is water and humidity resistant. The FEA-optimized motor construction and cone geometry, along with linear suspension spider design, allow for a smooth frequency response and more consistent off-axis performance. The 0.75" high-frequency driver features a highly damped treated silk dome for clear and warm sound, a lightweight Kapton™ voice coil for better high-frequency response and excellent reliability, low viscosity liquid cooling for power handling and reliability, and a wide dispersion waveguide design to produce wide coverage and smooth frequency response.

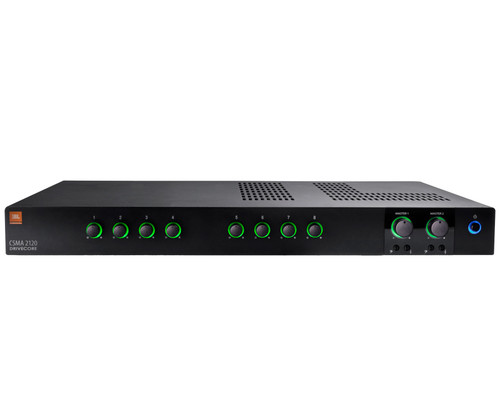

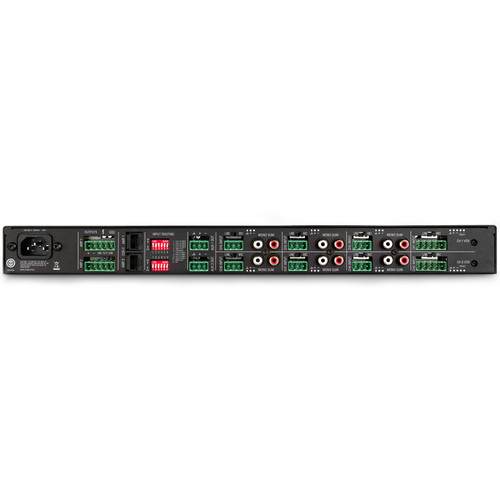

The JBL CSMA series of mixer-amplifiers are a professional tool designed and built for Installed sound applications. The CSMA 2120 is a 120 W, dual channel model with eight mixer channels. It provides mixer capability with independent level control for each input channel and amplification with a choice of low impedance, 70 V or 100 V outputs. The product includes a rack mounting kit for installations to a cabinet. The system can be easily expanded with additional JBL Commercial Series Amplifiers and Commercial Series Mixers. Provisions are included for a remote volume control using the JBL CSR-V control module.

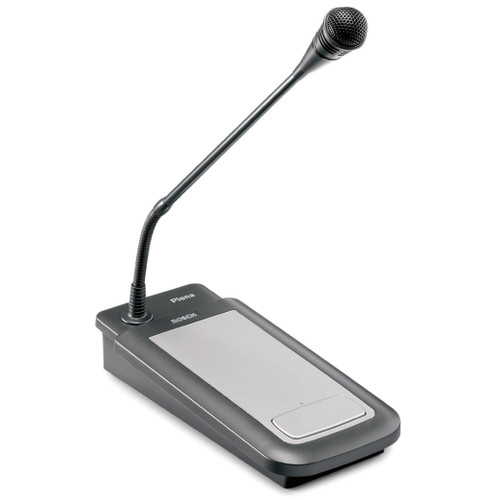

The Bosch Plena PLE-1CS tabletop microphone is a stylish, high-quality tabletop unidirectional condenser microphone, intended for making calls in a public address system. Its heavy metal base and rubber feet ensure stability on any flat surface. The special design also allows the unit to be neatly flush-mounted in desktops. The PTT-key (press-to-talk), not only switches on the microphone, but also provides priority contacts, that are compatible with the Plena range of amplifiers. The switching characteristic of the PTT-key can be configured internally for PTT-mode (on as long as pressed) or togglemode (press to switch on, press again to switch off). It is equipped with a fixed, flexible 2 m cable and a 5‑pin Euro style connector for the balanced signal and the priority contact. If the priority contact is not required, the microphone can be connected to amplifiers with 3‑pin Euro style connector. A green LED indicates when the microphone is active.

The JBL CSR-V Remote Control (when used with a CSM mixer) uses analog DC voltage to allow you to remotely control the volume of 1 source. It is wired with Category 5 cable with universally accepted RJ-45 connectors up to 1000 feet in length.

Not sure if this is the right Retail Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.
