- Description
Details
This Atlas Sound Professional retail store sound system is ideal for small coverage areas and can be expanded beyond that for further coverage and control over separate zones and paging.
Atlas Sound’s FAP62T combines superior coaxial loudspeaker performance with even dispersion and easy installation. A low profile enclosure and wide coverage make the FAP62T a perfect choice for low ceilings. The FAP62T will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. The FAP62T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.
The Atlas Sound AA50PHD is a four input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With one microphone/line input and three stereo line inputs, the AA50PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers. The AA50PHD includes a patent pending automatic system test, the Push Here Diagnostic (PHD).
The Atlas Sound WPD-RISRL features an audio source slide selector as well as a source volume control. The unit includes an LED indicator to indicate which source is selected and if it is active. The unit fits in a single gang electrical outlet and uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors. When connected to the RIS output on an appropriate AAPHD amplifier, the WPD-RISRL allows for remote selection and volume adjustment of inputs 2, 3, and 4 allowing the rack to remain locked and secured.
Optional Upgrade to the FAP63T Speakers:The AtlasIED FAP63T Strategy III is a 6.5" coaxial loudspeaker with 70.7/100V - 32W Transformer and 8Ω Bypass that is the next generation of industry-leading, in-ceiling loudspeaker technology. It is packed with new performance innovations at an affordable price point for every style of install applications. If you require an in-ceiling loudspeaker with excellent speech intelligibility, crisp music reproduction, quick installation, and wide audience coverage, look no further - this is the Right Choice. We achieved these new standards by building upon the current Strategy Series excellent reputation and by extensive market research to make it even better. The results are outstanding and will have you choosing them for all your projects going forward.
- Features
Features
Atlas Sound FAP62T In-Ceiling Loudspeakers:
- 4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining Additional Strategy Full Range Speakers or Subwoofers
- Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
- Enhanced Quality 70.7V / 100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
- Extended Low Frequency Response from the 285 Cubic Inch Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure
- Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
- "Press Fit" Grilles Blend Better into Contemporary Architecture
- Unique "Trap Door" Input Section Allows for Through Conduit Runs with Rigid or Flex Conduit

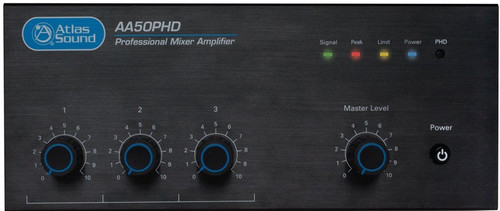

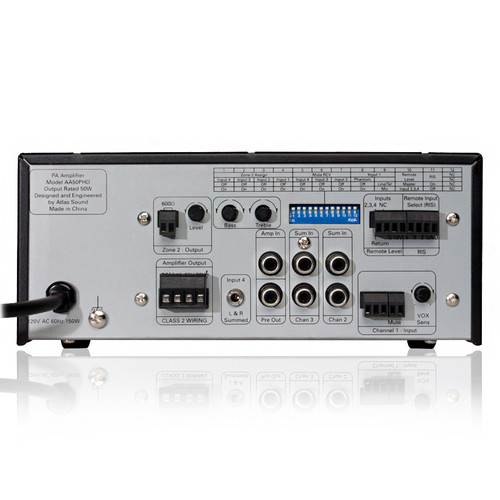

Atlas Sound AA50PHD Mixer Amplifier:
- 50W into 25V / 70.7V and 4Ω Loads
- Rear Mounted DIP Switch Allows Mute Receive for Inputs 2 and 3
- Contact Closure Mute Terminals
- Variable Mute Sensitivity Control for Input 1
- Preamp In for External Processors
- Line Output
- Remote Input Select (RIS)
- Remote Level Control
- Input Assignable Zone 2 Output
- Three Unbalanced, Summing Line Level Inputs
- Balanced Mic/Line/Tel Input w/ Phantom Power
- Automated Diagnostic System Test (Push Here Diagnostic)

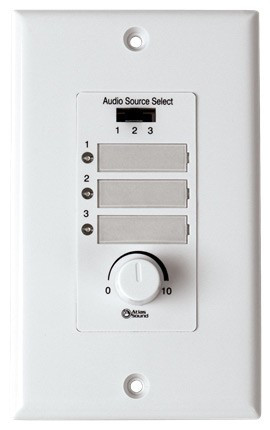

Atlas Sound WPD-RISRL Wall Plate Volume Control:
- Designed for Remote Input Selection and Volume Adjustment Used with Select AAPHD Amplifiers
- Input Select Slide Switch
- Level Control Via On Board 10k Ω Potentiometer
- System Status Indicator (Red)
- 8-Conductor Interface Connection
- Label Guard
- System Includes
System Includes
- (4) Atlas Sound FAP62T In-Ceiling Loudspeakers
- (1) Atlas Sound AA50PHD Mixer Amplifier
- (1) Atlas Sound WPD-RISRL Wall Plate Volume Control
- Reviews
Write Your Own Review
System Components
-
Atlas Sound AA50PHD 4-Input 50W BGM Mixer Amplifier 25V/70.7V and 4 Ohm Outputs
List $554.99Pro Acoustics Price $445.99Savings $109.00 (20%) -
Atlas Sound FAP62T 6" Coaxial Stategy II In Ceiling Loudspeaker 32 Watt 70/100V - Pair
List $357.98Pro Acoustics Price $289.98Savings $68.00 (19%) -
Atlas Sound WPD-RISRL Volume Control Input Select Switch
List $64.99Pro Acoustics Price $54.99Savings $10.00 (15%)
