Inside the Design
This Atlas Sound professional retail store sound system is ideal for medium-sized coverage areas and can be expanded beyond that for further coverage and control over separate zones and paging. Perfect for small strip mall stores, outlet mall retail stores or boutique shops.
Sound System Features:
- Excellent speech intelligibility, crisp music reproduction, quick installation, and wide coverage
- Six input channel mixer amplifier designed for distributed business paging and background music (BGM)
- Features music on hold (MOH) and a patent pending automatic system test, Push Here Diagnostic® (PHD) designed to check the connected loudspeaker lines for wiring and impedance errors
- Also incorporates a Remote Input Selection and Remote Level Control feature allows the integrator to use the WPD-RISRL remote wall plate
- The BTR1 provides ultimate wireless freedom and flexibility with extended 100ft range wireless streaming

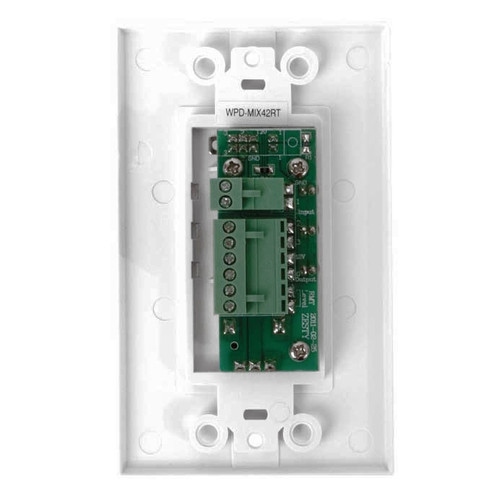

- The WPD-RISRL allows for remote selection and volume adjustment of inputs 2, 3, and 4 allowing the rack to remain locked and secured
About the System Components
Atlas Sound FAP63T In-Ceiling Speakers
The AtlasIED FAP63T Strategy III is a 6.5" coaxial loudspeaker that is the next generation of industry-leading, in-ceiling loudspeaker technology. It is packed with new performance innovations at an affordable price point for every style of install applications. If you require an in-ceiling loudspeaker with excellent speech intelligibility, crisp music reproduction, quick installation, and wide audience coverage, look no further - this is the Right Choice. We achieved these new standards by building upon the current Strategy Series excellent reputation and by extensive market research to make it even better. The results are outstanding and will have you choosing them for all your projects going forward.

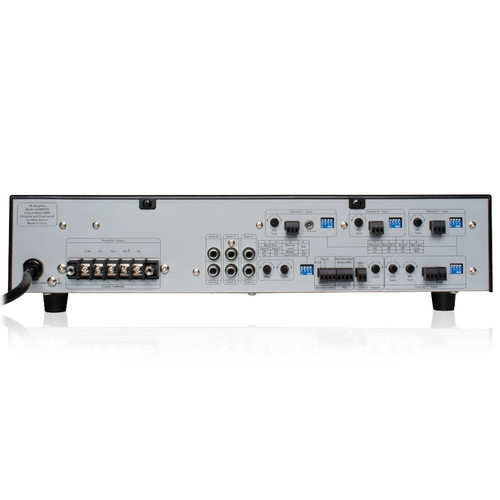

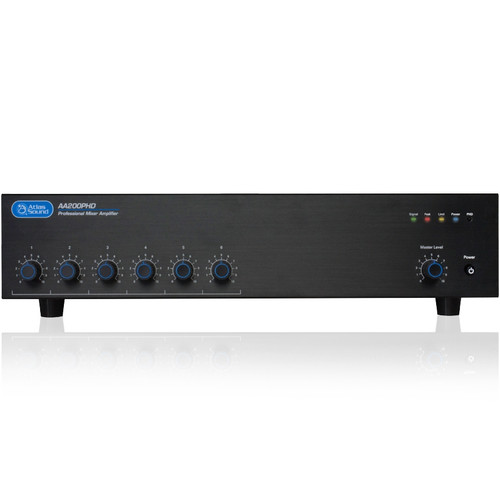

Atlas Sound AA200PHD 6-Input 200W Mixer Amplifier
The AA200PHD is a six input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, medium to large speech privacy systems, and in applications where music on hold (MOH) plus paging is required.With one microphone/line input and two stereo line inputs, the AA200PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers. What Sets the AAPHD Series Apart? The AA200PHD includes a patent pending automatic system test, the Push Here Diagnostic® (PHD). The PHD button is designed to check the connected loudspeaker lines for wiring and impedance errors. This test can be activated once all loudspeakers are connected and the circuit automatically verifies that the attached loudspeakers' tap settings do not exceed the amplifier's rated power, no loudspeakers are mistakenly tapped at 8½, and the loudspeaker wire is free from shorts.
Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver
The BTR1 Bluetooth wireless audio receiver streams high-fidelity audio to your commercial sound system from any Bluetooth-enabled device. The BTR1 provides superior high-resolution audio streaming with an extended wireless range of up to 100 feet. This Bluetooth stereo receiver is easy to set up, pairs quickly, remembers up to 8 devices, and automatically reconnects to the last paired device.
