Inside the Design
This professional Bose retail store sound system is designed to deliver high-quality background and foreground music in both indoor and outdoor environments. Featuring eight Bose DesignMax surface-mount loudspeakers, this system offers wide and even coverage with exceptional sound clarity. The Bose FreeSpace IZA 2120-HZ amplifier integrates source selection, volume control, and EQ processing in one streamlined unit, making it simple to manage sound in commercial spaces. Two Bose ControlCenter wall-mounted controllers provide convenient zone volume and source control. This setup is ideal for enhancing the customer experience in retail environments while offering seamless operation and professional audio performance.
Sound System Features:
- Complete commercial-grade sound system designed for retail store applications
- Eight weather-resistant Bose loudspeakers deliver clear, full-range sound indoors or outdoors
- Dispersion Alignment ensures balanced audio coverage across the entire listening area
- QuickHold mounting system allows for fast and secure speaker installation
- Integrated zone amplifier with volume, tone, and source control simplifies operation
- Supports 70V/100V distributed audio systems with paging and remote control compatibility
- Two wall-mounted zone controllers offer localized control for volume and source selection
About the System Components
Bose DesignMax DM3SE Indoor/Outdoor Speakers
The Bose DesignMax DM3SE is a 3.25" 2-way surface-mount loudspeaker designed for commercial audio systems. With an IP55 weather-resistant rating, these speakers are suitable for indoor and outdoor use. Dispersion Alignment technology ensures smooth frequency response and even coverage throughout the space. A QuickHold mounting system simplifies installation and minimizes the risk of damage. The DM3SE combines sleek aesthetics and powerful performance, making it ideal for delivering rich background music and clear announcements in retail environments.

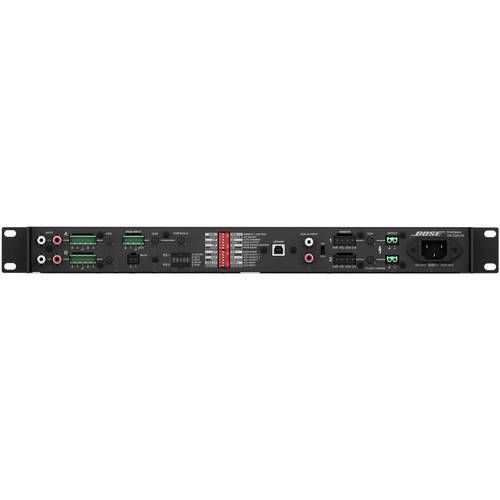

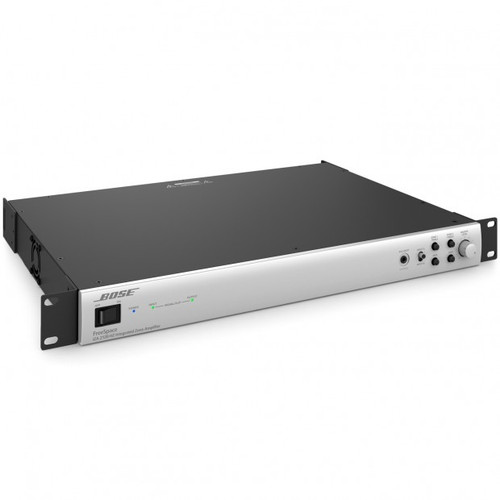

Bose FreeSpace IZA 2120-HZ Integrated Zone Amplifier
The Bose FreeSpace IZA 2120-HZ is a 120-watt commercial amplifier with four inputs and two outputs, specifically designed for background and foreground music and paging applications. It features Opti-voice paging for intelligible speech and SmartBass processing for enhanced low-frequency performance. With onboard DSP, source selection, and zone volume control, this amplifier is an all-in-one solution for professional sound distribution. It is compatible with Bose ControlCenter wall controllers and supports Cat 5 wiring for remote installation.
Bose ControlCenter CC-2 Zone Controllers
The Bose ControlCenter CC-2 zone controllers provide remote volume and source control for Bose FreeSpace amplifiers. These Decora-style wall plates blend seamlessly into commercial interiors and are designed for simple user operation. Each controller connects via standard Cat 5 cable, offering intuitive access to zone settings without requiring users to interact with the amplifier directly. Ideal for retail or hospitality environments, these controllers enhance convenience while maintaining audio consistency across zones.
