Revolabs Fusion 4-Channel Portable Wireless Receiver (Discontinued)

Part #:
01-4FUSION-NM
Model #:
01-4FUSION-NM
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

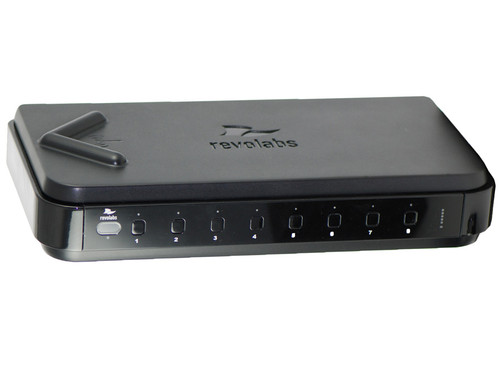

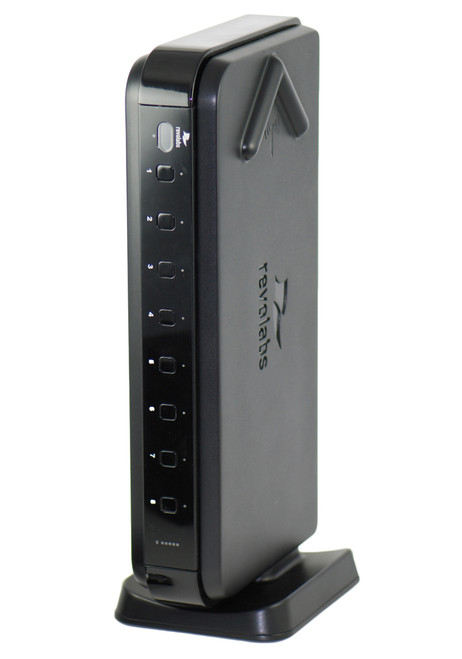

The 01-4FUSION-NM is a wireless microphone receiver for the Revolabs Fusion 4. It combines a wireless microphone receiver, digital signal processor, audio mixer, Acoustic Echo Cancellation and Noise Reduction technology into a simple to use package.

Description

The 01-4FUSION-NM is a wireless microphone receiver for the Revolabs Fusion 4. It combines the wireless microphone receiver with a digital signal processor, audio mixer and Acoustic Echo Cancellation and Noise Reduction technology.

Revolabs Fusion provides all the connectors required for connectivity between speakers or amplifiers in the room. Revolabs Fusion can also be directly connected to most major video conferencing solutions in the field, such as Lifesize, Polycom, Sony and Tandberg, making it the ideal wireless unified communication solution for conference rooms.

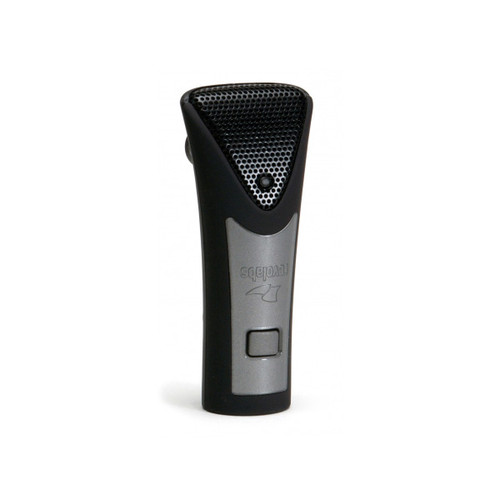

The Revolabs Fusion comes in a four or an eight microphone version, making it versatile to cover the audio needs of mid- to- large size conference rooms. As with all Revolabs products, the microphones used with Fusion can be mixed and matched based on the needs of the conference room it is used in. Offered separately, the microphones are sleek in design and come in several different styles: wearable, tabletop directional, tabletop omni-directional, and XLR adapter for handheld and broadcast quality microphones.

To enable telephone conferences, Revolabs Fusion includes a telephone line-in connector that plugs in directly to a telephone network as a conference phone. It also provides a telephone set connection, allowing users to plug a desktop phone in for non-speaker calls. The Revolabs Fusion wireless dialer enables users to set up calls from anywhere in the conference room. All wireless communication between the microphones and the Revolabs Fusion is digitally encrypted using 128-bit encryption technology, securing the communication and preventing unwanted listeners from listening in.

Rechargeable batteries in the microphones, which provide up to eight hours of talk time with a two-hour recharge time. With this wireless solution, Enterprise users can finally move around their conference room and still be heard.

Features

  • Wideband frequency response provides high definition audio delivering spoken word clarity
  • Wireless Freedom
  • Lets users sit anywhere within a conference room or walk around freely
  • Multiple Microphone Support
  • Wearable, tabletop boundary and handheld
  • No More Cell Phone Buzz
  • RF Armor™ technology lets microphones operate “buzz” free, even when in direct contact with other wireless electronic devices
  • Secure 128-bit encryption prevents unwanted listeners

Specifications

Audio
Channels 4 channels per system
Radio Frequency North and South America: 1920 to 1930 MHz
International: 1880 to 1900 MHz (DECT EU)
Audio Range 100 ft (30 m) approx. (no obstructions)
Out-of-range alarm
Bandwidth 100-6,800 Hz
Base Station
Power 24V DC, 2.5A locking power connector
Power supply included; 100-240V, 50-60 Hz
Connectors/Interfaces IR Remote Serial DB9 Sensor
Audio Control RJ45 - firmware updates only
Telephone Line/Telephone Set-In RJ11
Network RJ45 - firmware updates only
Mic Level XLR male conference out
Aux In/ Aux Out line level RCA Plug
Record Out/Room Out line level RCA Plug
Conference In/ Conference Out line level RCA Plug
Power 5V DC, 2A
100-240V, 50-60 Hz
Connectors 4 proprietary 4 pin microphone charge jacks
Microphones
Battery Lithium Polymer
Talk Time Up to 8 hours
Charge Time 2 hours
Encryption 128-bit proprietary (per microphone channel)
RF Shield No cell phone interference due to RF Armor™ technology
Mute Button For muting and pairing
LED Indicator For mute status, pairing, and battery charge
Audio Out Port 2.5 mm unbalanced for earpiece
Power/Charging Port Revolabs proprietary 4 pin
Connector 3 pin XLR Female for use with dynamic microphones only (XLR Adapter)
