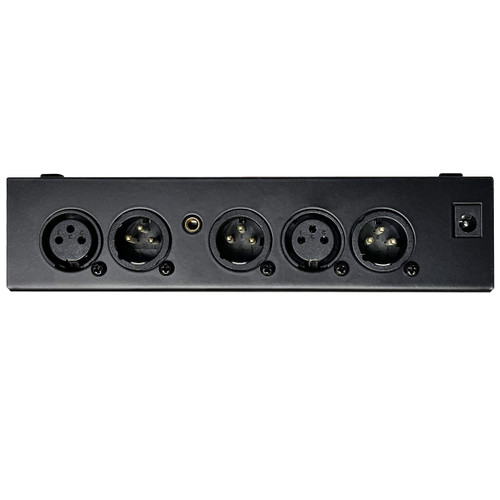

Experience top-notch microphone pre-amplification with the MP213, a versatile unit tailored for various applications. Equipped with both XLR and 1/8" inputs, as well as XLR and 1/8" outputs, this compact device offers unparalleled convenience.

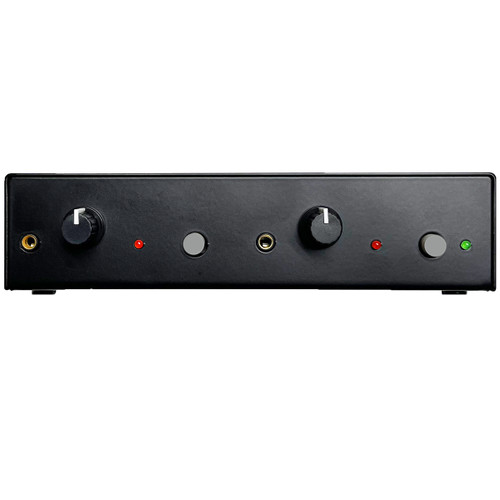

With individual Gain controls and Clip LED indicators for each channel, achieving the perfect audio balance is now effortless. Additionally, the +48v Phantom power feature supports condenser microphones, ensuring professional-grade performance.
The MP213 stands out with its specially designed 1/8" stereo output, catering to both camera microphone mixing and monitoring needs. Seamlessly adapt to different setups with this multipurpose output option.
Built to deliver studio-grade performance, the MP213 utilizes a servo-balanced instrumentation amplifier, setting it apart from competitors using transistor inputs. This exceptional design provides an impressive 40 dB better common mode rejection ratio (CMRR) and significantly lower distortion.
Embrace superior audio quality and versatility with the MP213—a small package that packs a powerful punch for all your microphone pre-amplification requirements.
| Audio I/O | (2) XLR 3-Pin Mic Input (3) XLR 3-Pin Output (2) 1/8" / 3.5 mm TRS Input (1) 1/8" / 3.5 mm TRS Output |
|---|---|
| Input Impedance | 10 Kilohms (Balanced/Unbalanced) |
| Max Input Level | +4 dBV XLR Balanced, +10 dBV Unbalanced |
| Gain | Maximum Gain: 60 dB (XLR), 54 dB (3.5 mm) |
| Phase Shift | |
| EIN | -108 dB Maximum |
| THD | |
| Power Source | AC Input (Included) |
| DC Input Power | 15 VDC |
| Dimensions (H x W x D) | 1.4" (35.56 mm) x 6.75" (171.45 mm) x 4.2" (106.68 mm) |
| Weight | 1.1 lbs (0.50 kg) |
