Rolls MX34c LiveMix 2-Channel Microphone Mixer

By Rolls Audio

Rolls MX34c LiveMix 2-Channel Microphone Mixer

Name: Rolls MX34c LiveMix 2-Channel Microphone Mixer
Brand: Rolls Audio
SKU: ROLLS-MX34c
Price: 139 USD
Availability: InStock

Write a Review

Part #:

MX34c

Model #:

MX34c

Current Stock:

MSRP: $189.00

$139.00

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

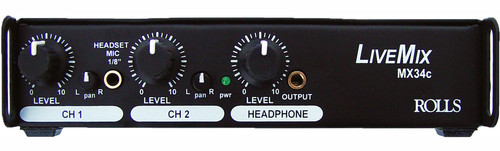

The Rolls MX34c LiveMix two channel microphone mixer. Although having many uses, this little mixer was originally designed with the video camera operator in mind.

Description

The MX34c is a two channel microphone mixer with balanced XLR inputs, phantom power, and stereo 1/8" (3.5 mm) outputs. The 3.5mm output may be switched either mic or line level. It has a stereo 1/8" (3.5 mm) Auxiliary input for connection to any stereo line-level source such as an AM/FM tuner, CD player etc. And a 3.5 mm headset mic in on the front for narration, etc.. Each channel has a Level and Pan control, and a separate headphone circuit allows for monitoring all signals without effecting the main output signal. Holes for a shoulder strap, easy-access controls, and smart Input/Output jack placement make the MX34c ideal for the live recording enthusiast. The 9 volt alkaline batteries ensure adequate signal strength as well as phantom power for your favorite condenser microphone.

Features

9V Battery or AC adapter operation
2 Mic Inputs
+18VDC Phantom Power
3.5 mm Stereo Output
3.5 mm Stereo Headphone Output
Pan control on each channel
Auxiliary 3.5mm Input
3.5 mm mic in jack for headset or other mic

Specifications

Input Impedance	Mic - 600 Ohms or greater XLR; aux - 47K stereo 3.5mm
Output Impedance	50 Ohms
THD + Noise	.02%
S/N Ratio	110 dB
Frequency Response	20 Hz - 30 kHz (+0 / -1 dB)
Max Output Level	+ 14 dB
Max Input Level	+20 dB
Max Gain	+70 dB
Batteries	2 X 9V Alkaline
Current Draw	30 mA
Phantom Power	+18 VDC
Input Connectors	2 Female XLR, 1/8" (3.5mm)
DC Power Jack	(5.5 X 2.1 mm tip negative)
Output connectors	3.5mm stereo main out; 3.5mm Headphone
Dimensions (H x W x D)	1.4" (3.56 cm) x 6.3" (16.00 cm) x 3.7" (9.40 cm)
Weight	1 lbs (0.45 kg)
