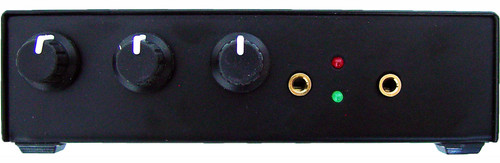

Rolls MX310 MorMics 3-Channel Mic Mixer/Combiner

Rolls MX310 MorMics 3-Channel Mic Mixer/Combiner

Name: Rolls MX310 MorMics 3-Channel Mic Mixer/Combiner
Brand: Rolls Audio
SKU: ROLLS-MX310
Price: 119 USD
Availability: InStock

Write a Review

Part #:

MX310

Model #:

MX310

Current Stock:

MSRP: $159.00

$119.00

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Rolls MX310 MorMics - three channel microphone mixer. Although having many uses, this little mixer was originally designed for people that need to plug 2 or 3 more mics into a mic input.

Description

The MX310 MorMics - three channel microphone mixer. Although having many uses, this little mixer was originally designed for people that need to plug 2 or 3 more mics into a mic input. The MX310 is a 3 channel microphone mixer with balanced XLR inputs, phantom power, and XLR Mic/Line output. It has a stereo 1/8" (3.5 mm) Auxiliary input for connection to any stereo line-level source such as an AM/FM tuner, CD player etc. A 3.5mm stereo output jack is provided for connection to a computer, ear buds, or other monitoring.

Features

3-Channel mono microphone mixer
Output level controls and a mic/line-level output switch
Phantom Power and Low-Cut switches for each Mic input

Specifications

Input Impedance	600 Ohms
Output Impedance	600 Ohms Mic-200 Ohms line
THD + Noise	.05% Typical
Frequency Response	20 Hz - 20 kHz (+0 / -3 dB)
Voltage Gain	50 dB line/10 dB Mic
Low Cut	-3 dB @ 100 Hz
Current Draw	20 mA
Phantom Power	+12 VDC
Connectors	3 Female XLR, 1 Male XLR, 1 1/8" TRS, DC Power Jack
Maximum Supply Voltage	16 VDC
Dimensions (H x W x D)	1.5" (38.1 mm) x 5.25" (133.4 mm) x 3.75" (95.3 mm)
Weight	1 lbs (0.45 kg)
