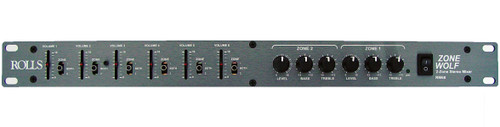

Rolls RM68 Zone Wolf 6 Channel Rack 2-Zones 6-Assignable RCA Inputs Mount Mic/Line Mixer (Discontinued)

Name: Rolls RM68 Zone Wolf 6 Channel Rack 2-Zones 6-Assignable RCA Inputs Mount Mic/Line Mixer (Discontinued)
Brand: Rolls Audio
SKU: ROLLS-RM68
Price: 299 USD
Availability: OutOfStock

Write a Review

Part #:

RM68

Model #:

RM68

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Rolls RM68 Zone Wolf 6 Channel Rack 2-Zones 6-Assignable RCA Inputs Mount Mic/Line Mixer is designed to mix up to three microphones with three stereo sources, and send them in any combination to two separate zones. It's versatile inputs and outputs as well as commercial grade design make it an important problem solver in many audio situations.

Description

The Rolls RM68 Zone Wolf 2 Channel Zoning Mixer is designed to mix up to three microphones with three stereo sources, and send them in any combination to two separate zones. It's versatile inputs and outputs as well as commercial grade design make it an important problem solver in many audio situations such as restaurants, churches, schools, etc. It also works great as a HiFi preamp.

Features

2-Zones / 6-Assignable RCA Inputs
3 XLR Inputs w/Phantom Power
Bass & Treble Control on each Zone
Talkover on Mic 1 to Assigned Zone
1/4" TRS Outputs

Specifications

Input Impedance
Mic	600 Ω XLR balanced
Source	22K Ω RCA unbalanced
Bus Input	22K Ω unbalanced
Max Input Level
Mic	-14 dBV balanced
Source	+24 dBV

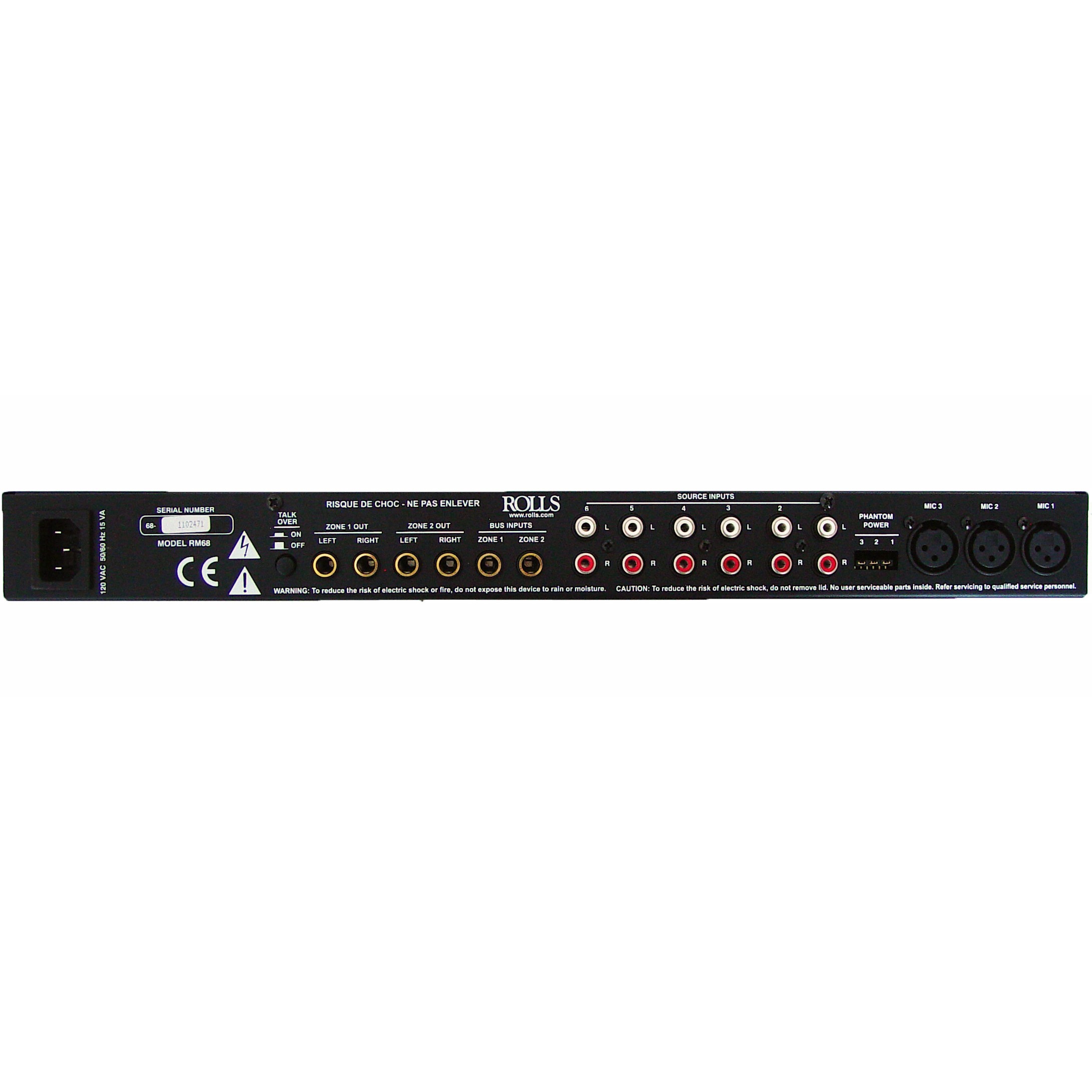

Input Connectors	3: XLR, 6: stereo RCA, 2: 1/4" (Bus inputs)
Outputs	1/4" balanced Main out, 1/4" unbalanced Prefade out
Max Gain	Mic: 60 dB, Line: 26 dB
Tone Control	12 dB boost/cut
Phantom Power	+12 VDC
Output Level	+17 dBV max
Output Impedance	51 Ω
Phase Shift
Max S/N ratio	106 dB
THD
CMRR	>52 dB (Mic)
Dimensions	19" (483 mm) x 1.75" (45 mm) x 6" (150 mm)
Weight	5 lbs (2.3 kg)
