Samson Stage v166 Handheld Wireless System (Discontinued)
Usually arrives in 5-9 business days.
The Samson Stage v466 Quad Handheld Wireless System is designed for four times the versatility by letting you use four microphones simultaneously with a single receiver. The system includes four HT6 dynamic handheld microphone transmitters, each with a Samson H6 dynamic microphone element for capturing clear, accurate vocals.
Designed for four times the versatility, Samson's Stage v466 Quad Vocal Wireless System let's you use four microphones simultaneously with a single receiver. It's the ideal wireless solution for vocalists, karaoke performers, DJs or any application where multiple mics are needed.
At the core of the Stage v466 system is a full-rack quad VHF wireless receiver. The receiver's front panel features an RF channel indicator and a large rotary volume knob for each channel. The receiver also offers two tuned antennas, XLR mix, as well as four 1/4" outputs that give you the option for each transmitter pair mixed or each transmitter individually. The Stage v466 system comes with two 1/4" to 1/4" cables.

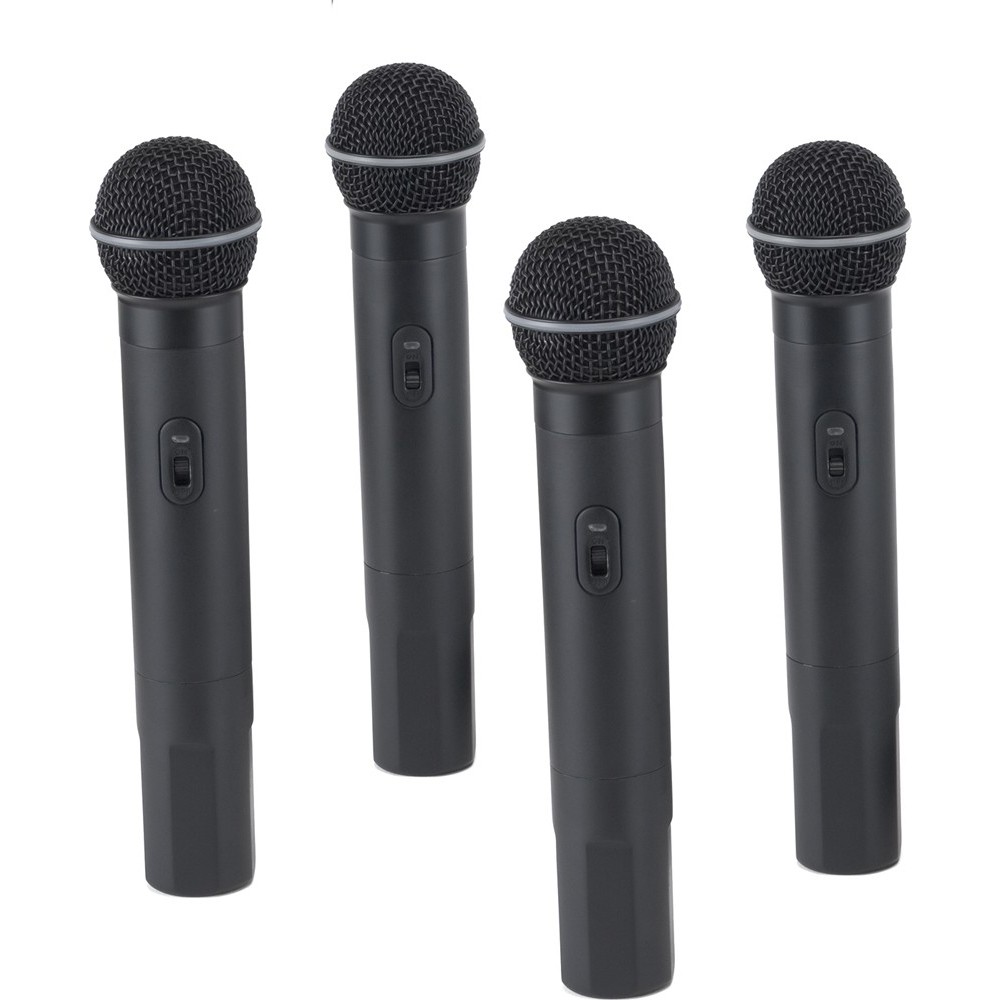

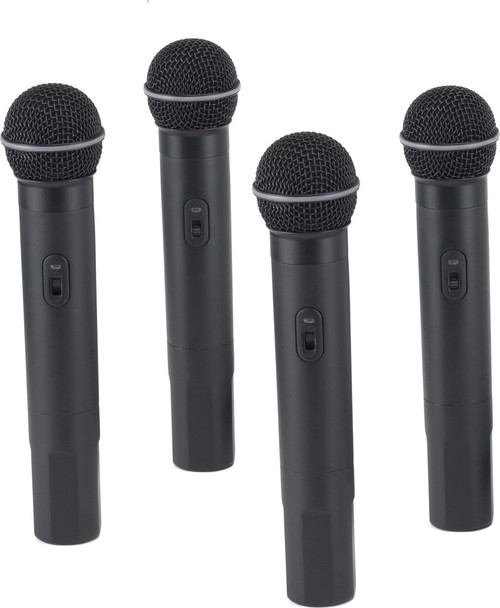

The Stage v466 system includes four HT6 dynamic handheld microphone transmitters, each with a Samson H6 dynamic microphone element for capturing clear, accurate vocals. Each transmitter operates for up to ten hours on a single 9-volt battery (four included) and offers a handy audio on/off switch. With the meticulous engineering, state of the art technology and impressive audio capabilities that are built into every Samson wireless system, the Stage v466 system ensures crystal clear operation and the most dependable quad-channel performance available.
The beauty of the Stage v466 system is that you can have all four channels running simultaneously. This makes it perfect for a variety of scenarios where multiple voices exist, including bands with multiple singers. Beyond the system's ability to capture stunning vocals in musical settings, Stage v466 allows bands, quartets and other small musical groups to add energy and movement to their performances.
| Operating Frequency | VHF 173.80 MHz to 213.20 MHz |
|---|---|
| Number of Channels | Fixed channel |
| Frequency Stability | ±0.005% |
| Modulation Mode | FM |
| Maximum Deviation | ±15 kHz |
| Operating Range | 250’ (line of sight) |
| Operating Temperature Range | 40° F (4° C) to 104° F (40° C) |
| Frequency Response | 80 Hz to 15 kHz |
| Image Rejection | 30 dB |
| Dynamic range | 95.5 dB |
| Maximum Output | 900mV |
| Sensitivity | 10 dBμV for 48 dB S/N |
| Output Connectors | Four - 1/4” TS (“mono”) phone jack; Balanced XLR |
| Audio Output Levels | 10dB unbalanced (1/4” phone connector); +4dBu balanced (XLR connector) |
| Power Supply | 100-240V AC (50/60 Hz) to 12V DC 0.5A |
| RF Power Output | 10 mW |
| Microphone Element | H6 Dynamic unidirectional |
| Typical Battery Life (9 V alkaline battery) | 9-hours |
| Current Consumption | 30 mA typical |
| Receiver (H x W x D) | 1.75" (44 mm) x 12.2" (309 mm) x 4.3" (111 mm) |
| Transmitter (Diameter x D) | 2.1” (52.6 mm) x 9.3” (235.5 mm) |
| Receiver | 1 lb (0.6 kg) |
| Transmitter | 0.4 lbs (0.18 kg) |
