Samson Synth 7 Handheld UHF Wireless System (Discontinued)

Description

Details

Samson's Synth 7 Handheld UHF Wireless System sets the standard for premium UHF wireless performance. Featuring rugged all-metal construction on both the receiver and transmitter, advanced features and flawless operation, Synth 7 Handheld is the future of wireless for singers, presenters, educators and others.

The Synth 7 Handheld allows for up to 20 systems to operate simultaneously (region dependent) with up to 300' separating the receiver and transmitter. The system's UR7 Wireless Receiver matches rugged all-metal construction with an incredible user experience. The UR7's multifunctional full-color LCD plays host to a variety of amazing features, including an auto frequency spectrum analyzer that seeks out the most desirable operating frequency in your area. Via the LCD, you can also manually select from over 100 operating channels across the systems 25MHz bandwidth, lock the receiver for uninterrupted performance and monitor the battery life of your transmitter. For further control over your performance, an Advanced Settings menu offers Squelch and Tone Key controls. Lastly, an IR set function automatically syncs the UR7 receiver with the transmitter for fast and easy setup.

The Synth 7 Handheld also features the all-metal UH7 Handheld Transmitter, which integrates Samson's Q8 Professional Dynamic Microphone capsule for world-class sound reproduction. Complete with its own LCD for monitoring battery life (up to 15 hours on two AA batteries) and current operating channel, the UH7 was meticulously crafted to meet the demands of serious performers.

The Synth 7 Handheld represents the culmination of Samson's long history in wireless microphone technology and our steadfast commitment to giving singers, presenters, educators and others the best products at groundbreaking prices. With Synth 7, Samson is the wireless future.

Features

Features

Synth 7 Handheld System

Premium UHF wireless system
Rugged all-metal construction on receiver and transmitter
1/4" audio cable, AC adapter and rackmount kit included

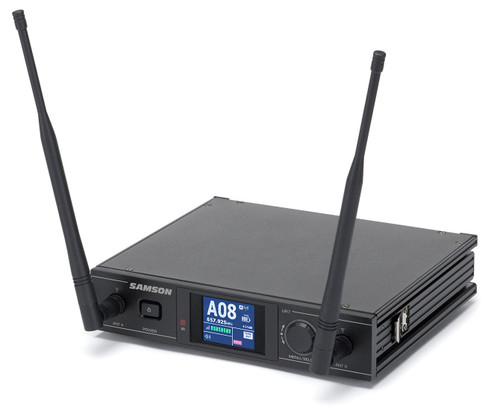

UR7 Wireless Receiver

Multifunctional full-color LCD
100 operating channels across 25MHz bandwidth
Up to 20 systems can be operated simultaneously (region dependent)
Auto frequency spectrum analyzer
IR set automatically links with transmitter
Lock setting for uninterrupted performance
Selectable Squelch control (Low, Mid, High)

UH7 Handheld Transmitter

Q8 Professional Dynamic Microphone capsule
LCD indicates battery level and operating channel
Offers up to 15 hours of battery life using two AA batteries
300' operating range

Specification

System
Working Range	300’ (100m) line of sight
Audio Frequency Response	50 Hz - 15 kHz
T.H.D. (Overall)	<1% (@AF 1 kHz, RF 46 dBu)
Dynamic Range	>100 dB A-weighted
Signal to Noise	>90 dB
Operating Temperature	–10°C (14°F) to +60°C (+140°F)
Tone Key Frequency	32.768KHz
UH7 Handheld Transmitter
Microphone Element	Q8 Dynamic
Input Gain Range	28 dB
RF Power	10 mW EIRP
Power Requirements	Two AA (LR6) alkaline batteries
Battery Life	Up to 15 hours
UH7 Dimensions (H x Dia)	10.5” (266 mm) x 2.2” (55 mm)
UH7 Weight	0.68 lbs (310.2 g)
Dimensions (H x W x D Boxed)	12" (304.8 mm) x 15.75" (400.1 mm) x 3.5" (88.9 mm)
Weight (Boxed)	5.5 lbs (2.49 kg)

Consumer Alert

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
