Samson Synth 7 Headset UHF Wireless System (I Band) (Discontinued)

Part #:
SWS7SBQV-I
Model #:
Synth 7 Headset
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Samson Synth 7 Headset allows for up to 20 systems to operate simultaneously and was meticulously crafted to meet the demands of serious performers.

Description

Samsons Synth 7 Headset System sets the standard for premium UHF wireless performance. Featuring rugged all-metal construction on both the receiver and transmitter, advanced features and flawless operation, Synth 7 Headset is the future of wireless for singers, dancers, DJs, presenters and others.

The Synth 7 Headset allows for up to 20 systems to operate simultaneously (region dependent) with up to 300' separating the receiver and transmitter. The system's UR7 Wireless Receiver matches rugged all-metal construction with an incredible user experience. The UR7's multifunctional full-color LCD plays host to a variety of amazing features, including an auto frequency spectrum analyzer that seeks out the most desirable operating frequency in your area. Via the LCD, you can also manually select from over 100 operating channels across the systems 25MHz bandwidth, lock the receiver for uninterrupted performance and monitor the battery life of your transmitter. For further control over your performance, an Advanced Settings menu offers Squelch and Tone Key controls. Lastly, an IR set function automatically syncs the UR7 receiver with the transmitter for fast and easy setup.

The Synth 7 Headset also features the all-metal UB7 Beltpack Transmitter and QV Headset Microphone with hyper-cardioid pickup pattern, excellent feedback rejection and locking connector. Complete with its own LCD for monitoring battery life (up to 15 hours on two AA batteries) and current operating channel, the UB7 was meticulously crafted to meet the demands of serious performers.

The Synth 7 Headset represents the culmination of Samson's long history in wireless microphone technology and our steadfast commitment to giving singers, dancers, DJs, presenters and others the best products at groundbreaking prices. With Synth 7, Samson is the wireless future.

Features

Synth 7 Headset System

  • Premium UHF wireless system
  • Rugged all-metal construction on receiver and transmitter
  • 1/4" audio cable, AC adapter and rackmount kit included



UR7 Wireless Receiver

  • Multifunctional full-color LCD
  • 100 operating channels across 25MHz bandwidth
  • Up to 20 systems can be operated simultaneously (region dependent)
  • Auto frequency spectrum analyzer
  • IR set automatically links with transmitter
  • Lock setting for uninterrupted performance
  • Selectable Squelch control (Low, Mid, High)

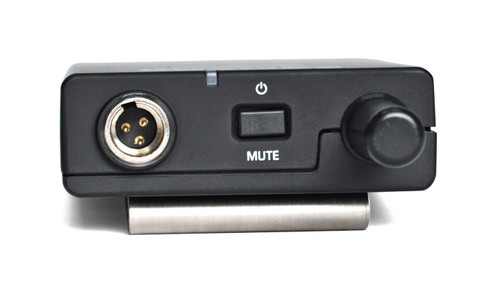

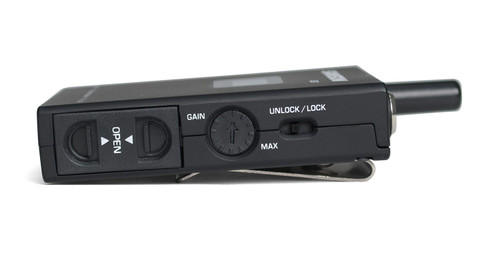

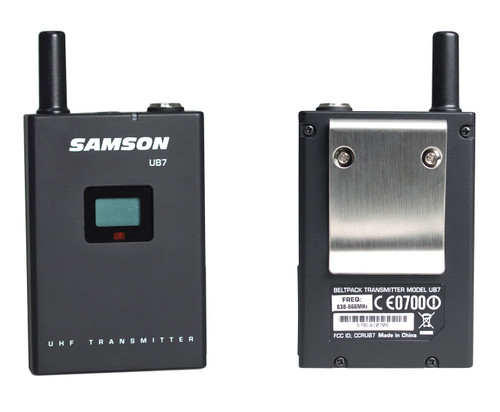

UB7 Beltpack Transmitter

  • QV Headset Microphone with hyper-cardioid pickup pattern, excellent feedback rejection and locking connector
  • LCD indicates battery level and operating channel
  • Offers up to 15 hours of battery life using two AA batteries
  • 300' operating range



Specifications

Working Range 300’ (100m) line of sight
Audio Frequency Response 50 Hz - 15 kHz
T.H.D. (Overall)
Dynamic Range >100 dB A-weighted
Signal to Noise >90 dB
Operating Temperature –10°C (14°F) to +60°C (+140°F)
Tone Key Frequency 32.768KHz
Input Connector Mini-XLR (P3)
Input Impedance 1MΩ
Input Gain Range 38 dB
RF Power 10 mW EIRP
Power Requirements Two AA (LR6) alkaline batteries
Battery Life Up to 15 hours
UB7 Dimensions (H x W x D) 2.4" (62 mm) x 0.78" (20 mm) x 3.5" (90 mm)
UB7 Weight 0.31 lbs (139.4 g)
Dimensions (H x W x D Boxed) 12" (304.8 mm) x 15.75" (400.1 mm) x 3.5" (88.9 mm)
Weight (Boxed) 5.5 lbs (2.49 kg)

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
