Samson's Synth 7 Presentation System sets the standard for premium UHF wireless performance. Featuring rugged all-metal construction on both the receiver and transmitter, advanced features and flawless operation, Synth 7 Presentation is the future of wireless for presenters, educators and others.
The Synth 7 Presentation allows for up to 20 systems to operate simultaneously (region dependent) with up to 300' separating the receiver and transmitter. The system's UR7 Wireless Receiver matches rugged all-metal construction with an incredible user experience. The UR7's multifunctional full-color LCD plays host to a variety of amazing features, including an auto frequency spectrum analyzer that seeks out the most desirable operating frequency in your area. Via the LCD, you can also manually select from over 100 operating channels across the systems 25MHz bandwidth, lock the receiver for uninterrupted performance and monitor the battery life of your transmitter. For further control over your performance, an Advanced Settings menu offers Squelch and Tone Key controls. Lastly, an IR set function automatically syncs the UR7 receiver with the transmitter for fast and easy setup.

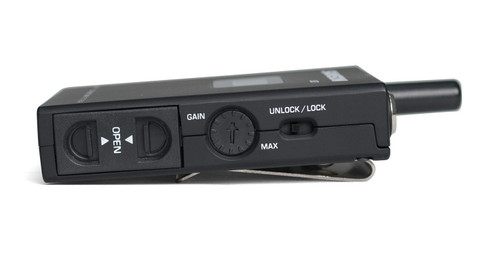

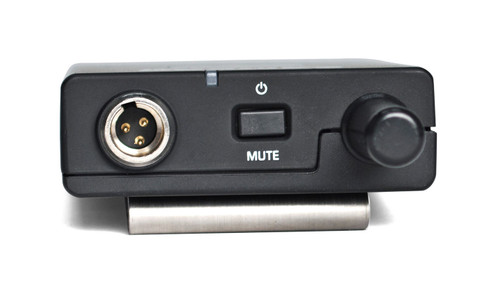

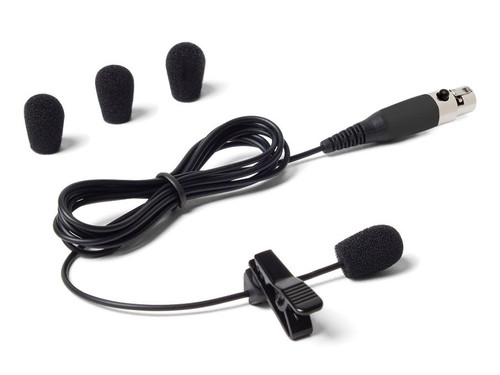

The Synth 7 Presentation also features the all-metal UB7 Beltpack Transmitter and LM10 Lavalier Microphone with Micro-Miniature Condenser Capsule, lightweight clip design and locking connector. Complete with its own LCD for monitoring battery life (up to 15 hours on two AA batteries) and current operating channel, the UB7 was meticulously crafted to meet the demands of serious performers.
The Synth 7 Presentation represents the culmination of Samson's long history in wireless microphone technology and our steadfast commitment to giving presenters, educators and others the best products at groundbreaking prices. With Synth 7, Samson is the wireless future.
- Features
Features
- Synth 7 Presentation System
- Premium UHF wireless system
- Rugged all-metal construction on receiver and transmitter
- 1/4" audio cable, AC adapter and rackmount kit included
- UR7 Wireless Receiver
- Multifunctional full-color LCD
- 100 operating channels across 25MHz bandwidth
- Up to 20 systems can be operated simultaneously (region dependent)
- Auto frequency spectrum analyzer
- IR set automatically links with transmitter
- Lock setting for uninterrupted performance
- Selectable Squelch control (Low, Mid, High)
- UB7 Beltpack Transmitter
- LM10 Lavalier Microphone with Micro-Miniature Condenser Capsule, lightweight clip design and locking connector
- LCD indicates battery level and operating channel
- Offers up to 15 hours of battery life using two AA batteries
- 300' operating range
- Consumer Alert Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
- Specification
System Working Range 300’ (100m) line of sight Audio Frequency Response 50 Hz - 15 kHz T.H.D. (Overall) <1% (@AF 1 kHz, RF 46 dBu) Dynamic Range >100 dB A-weighted Signal to Noise >90 dB Operating Temperature –10°C (14°F) to +60°C (+140°F) Tone Key Frequency 32.768KHz UB7 Belt Pack Transmitter Input Connector Mini-XLR (P3) Input Impedance 1MΩ Input Gain Range 38 dB RF Power 10 mW EIRP Power Requirements Two AA (LR6) alkaline batteries Battery Life Up to 15 hours UB7 Dimensions (H x W x D) 2.4" (62 mm) x 0.78" (20 mm) x 3.5" (90 mm) UB7 Weight 0.31 lbs (139.4 g) Dimensions (H x W x D Boxed) 12" (304.8 mm) x 15.75" (400.1 mm) x 3.5" (88.9 mm) Weight (Boxed) 5.5 lbs (2.49 kg) - Reviews
