Sennheiser EW 172 G3 MKE 2 CC Wireless Instrument System with Lavalier Microphone (Discontinued)

Part #:
EW 172 G3 MKE 2 CC
Model #:
EW 172 G3 MKE 2 CC
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Sennheiser EW 172 G3 MKE 2 CC Wireless Instrument System with Lavalier Microphone is an instrument set with cable emulator for individual sound adjustment and the Lavalier Microphone designed for all areas of live work.

Description

The Sennheiser EW 172 G3 MKE 2 CC Wireless Instrument System with Lavalier Microphone is an instrument set with cable emulator for individual sound adjustment and the Lavalier Microphone is a high-quality, sub-miniature omni-directional clip-on lavalier microphone designed for all areas of live work.

The system’s new cable emulator feature allows you adjust virtual cable lengths to get sound response just like a cable. Another great new feature for guitarists is the built-in guitar tuner, right on the display. A built in 5 band EQ allows you to fine tune your sound even further. Bass players in particular will be pleased with the enhanced AF frequency response: it starts at a thundering 25 Hz, which will especially please players with 5 string bass guitars.

With its improved design and new features, this rugged G3 rack receiver is ready for the road with its proven transmission reliability and inspiring flexibility. The sound check mode allows you to check the audio and RF signal at any time during setup. 20 frequency banks with 12 preset frequencies each, plus a user-programmable bank mean you can easily run multiple channels of G3 wireless simultaneously.

The wireless body-pack standard gets even better. Sennheiser has packed many useful features in the 158g weight of the SK 100 G3. The SK 100 G3 has an easy-to-read graphic display, infrared sync, charging contacts, cable emulation, RF mute, an intuitive menu and much more. As features alone are no substitute for audio quality, the AF frequency response was expanded to 25-18,000 Hz for the truest sound.

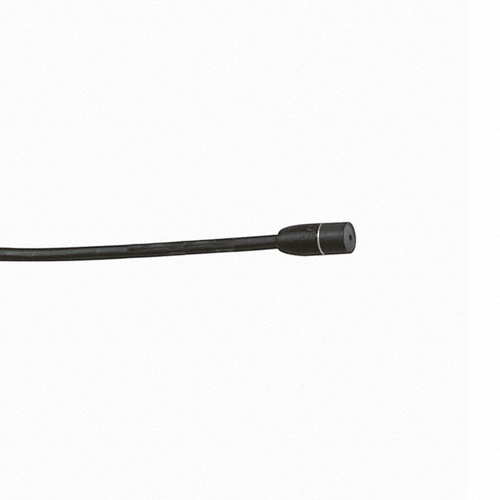

The MKE 2 Gold sub-miniature omni-directional lavalier is ideal for television broadcast and theatrical productions. Its accurate frequency response produces natural, uncolored sound. A unique Umbrella Diaphragm delivers moisture-resistant performance with the identical high audio quality of the industry standard MKE 2 lavalier. Its size makes it not only unobtrusive and easy to conceal, but also offers a textbook perfect omni-directional polar pattern. An extremely thin low mass diaphragm exhibits extraordinary transient response. The microphone also comes with two additional sound inlet caps to tailor the high frequency as needed.

Standard instrument cable for evolution wireless bodypack transmitters.

Features

ew 172 G3 Wireless Instrument System:

  • Sturdy metal housing (transmitter and receiver)
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitters via infrared interface
  • User-friendly menu operation with more control options
  • Illuminated graphic display (transmitter and receiver)
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Integrated Equalizer, Soundcheck mode and guitar tuner
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

MKE 2 GOLD Lavalier Microphone:

  • Dual-diaphragm design virtually eliminates "sweat-outs"
  • Stranded, stainless-steel reinforced cable provides maximum strength and low contact noise
  • Acoustical equalization via supplied end caps
  • 1-year warranty

Specifications

ew 172 G3 Wireless Instrument System
Compander HDX
Audio-XLR connector 6.3 mm
Presets 12
Frequency response 25 - 18,000 Hz
THD, total harmonic distortion < 0.9%
Signal-to-noise-ratio >110 dB(A)
RF frequency range 516 - 865 MHz
RF output power 30 mW
Transmission/receiving frequencies 1680
Switching bandwidth 42 MHz
Peak deviation ±48 kHz
In compliance with ETS 300422 , ETS 300445 , CE , FCC
Operating time (transmitter) >8 h
Antenna connector 2 BNC, 50 Ohms
Input voltage range 3.0 V eff line
Audio output level (balanced) XLR: +18 dBu max
Audio output level (unbalanced) Jack: +12 dBu max
Dimensions (H x W x D)
Receiver 8.3" (212 mm) x 8" (202 mm) x 1.7" (43 mm)
Transmitter 3.2" (82 mm) x 2.5" (64 mm) x 0.9" (24 mm)
Weight
Receiver 2 lbs (900 g)
Transmitter 0.35 lbs (160 g)
MKE 2 GOLD Lavalier Microphone
Frequency response (microphone) 20 - 20000 Hz +- 3 dB
Connection cable LEMO f. SK50/250
Cable length 5.25 ft (1.6 m)
Sensitivity in free field, no load (1kHz) 5 mV/Pa +- 3 dB
Nominal impedance 1000 Ohms
Min. terminating impedance 4700 Ohms
Equivalent noise level 26 dB
Equivalent noise level weighted as per CCIR 468-3 39 dB
Maximum sound pressure level (passiv) 142 dB
Current consumption ca. 250 µA
Operating voltage (stand alone) 7.5 V

In the Box

  • (1) EM 100 G3 rack-mount receiver
  • (1) SK 100 G3 bodypack transmitter
  • (1) MKE 2-4 Gold-C clip-on microphone
  • (1) MZC 2-1 cap (short)
  • (1) MZC 2-2 cap (long)
  • (1) CI 1 instrument cable
  • (1) NT 2 power supply unit
  • (2) antennas
  • (2) stacking elements
  • (2) AA batteries
  • Operating instructions
