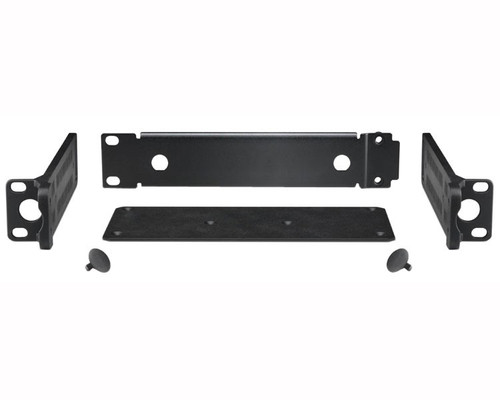

The Sennheiser EW 172 G3 Wireless Instrument System allow you to retain that great guitar tone but go wireless. Need a Rackmount Kit? Select the Sennheiser ew 172 G3 Wireless Instrument System with Rackmount Kit.

Description

The Sennheiser ew 172 G3 Wireless Instrument System allow you to retain that great guitar tone but go wireless.

The system's new cable emulator feature allows you adjust virtual cable lengths to get sound response just like a cable. Another great new feature for guitarists is the built-in guitar tuner, right on the display. A built in 5 band EQ allows you to fine tune your sound even further. Bass players in particular will be pleased with the enhanced AF frequency response: it starts at a thundering 25 Hz, which will especially please players with 5 string bass guitars.

With its improved design and new features, this rugged G3 rack receiver is ready for the road with its proven transmission reliability and inspiring flexibility. The sound check mode allows you to check the audio and RF signal at any time during setup. 20 frequency banks with 12 preset frequencies each, plus a user-programmable bank mean you can easily run multiple channels of G3 wireless simultaneously.

The wireless body-pack standard gets even better. Sennheiser has packed many useful features in the 158g weight of the SK 100 G3. The SK 100 G3 has an easy-to-read graphic display, infrared sync, charging contacts, cable emulation, RF mute, an intuitive menu and much more. As features alone are no substitute for audio quality, the AF frequency response was expanded to 25-18,000 Hz for the truest sound.

Standard instrument cable for evolution wireless bodypack transmitter.

Features

  • Sturdy metal housing (transmitter and receiver)
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitters via infrared interface
  • User-friendly menu operation with more control options
  • Illuminated graphic display (transmitter and receiver)
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Integrated Equalizer, Soundcheck mode and guitar tuner
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Specifications

Compander HDX
Audio-XLR connector 6.3 mm
Presets 12
Frequency response 25 - 18,000 Hz
THD, total harmonic distortion < 0.9%
Signal-to-noise-ratio >110 dB(A)
RF frequency range 516 - 865 MHz
RF output power 30 mW
Transmission/receiving frequencies 1680
Switching bandwidth 42 MHz
Peak deviation ±48 kHz
In compliance with ETS 300422 , ETS 300445 , CE , FCC
Operating time (transmitter) >8 h
Antenna connector 2 BNC, 50 Ohms
Input voltage range 3.0 V eff line
Audio output level (balanced) XLR: +18 dBu max
Audio output level (unbalanced) Jack: +12 dBu max
Dimensions (H x W x D)
Receiver 8.3" (212 mm) x 8" (202 mm) x 1.7" (43 mm)
Transmitter 3.2" (82 mm) x 2.5" (64 mm) x 0.9" (24 mm)
Weight
Receiver 2 lbs (900 g)
Transmitter 0.35 lbs (160 g)

In the Box

  • (1) EM 100 G3 rack-mount receiver
  • (1) SK 100 G3 bodypack transmitter

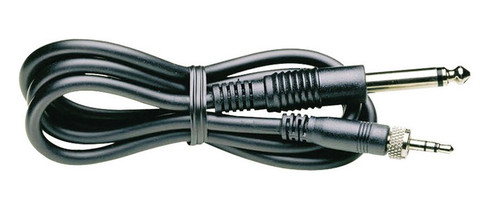

  • (1) CI 1 instrument cable

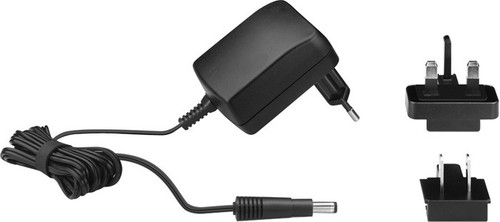

  • (1) NT 2 power supply unit
  • (2) antennas
  • (2) stacking elements
  • (2) AA batteries
  • Operating instructions
