Sennheiser ew 322 G3 Wireless Lavalier Microphone System (Discontinued)

Part # EW 322 G3
Model # EW 322 G3
The Sennheiser ew 322 G3 Wireless Lavalier Microphone System is a small but mighty, feedback-rejecting, powerful sounding presentation set.
Description

Details

The Sennheiser ew 322 G3 Wireless Lavalier Microphone System is a feedback-rejecting, powerful sounding presentation set featuring the ME 4 miniature cardioid clip-on microphone, robust SK 300 G3 bodypack transmitter, EM 300 G3 true diversity receiver for highest reception quality.

Small but mighty: the clip-on microphone in this professional set is nearly invisible. The included cardioid pattern microphone has both great resistance to feedback and clear voice reproduction. The true diversity receiver means you get the highest degree of signal reliability at all times. Sync up the bodypack with the receiver with a single touch of a button. Especially convenient: you can connect an external mute button (option) to the additional 2.5 mm jack socket on the bodypack transmitter.

Sennheiser understands that the more self-reliant a device is, the more artistic freedom there is to enjoy. With this in mind, this new receiver has a built-in Ethernet port for remote PC monitoring and setup with Sennheiser’s Wireless System Manager software. This receiver’s wireless sync function makes it a breeze to link up any G3 transmitter with the unit. In addition, it has a large back-lit graphic display where receiver and transmitter information can be easily seen even on the darkest of stages.

While it is ready for operation right out of the box, the SK 300 G3 easily receives settings from the receiver via its enhanced wireless sync function. This transmitter also sets itself apart from others due to its unparalleled mute options. If you want to quickly and easily interrupt the sound signal at some point: you can simply attach the optional external mute button to the additional 2.5 mm jack socket. This mute option is easily programmed to provide a variety of mute options.
Features

Features

  • Sturdy metal housing (transmitter and receiver)
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 24 compatible frequencies
  • Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitter parameter from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display, receiver also shows transmitter settings
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Integrated Equalizer and Soundcheck mode
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement
Specification
Frequency response (microphone)25 - 18,000 Hz
CompanderHDX
Audio-XLR connector6.3 mm
Presets24
Microphoneelectret
Sound pressure level (SPL)120 dB(SPL) max.
THD, total harmonic distortion<0.9%
AF sensitivity40 mV/Pa
Signal-to-noise-ratio> 115 dB(A)
RF frequency range516 - 865 MHz
RF output power10/30 mW
Transmission/receiving frequencies1680
Switching bandwidth42 MHz
Peak deviation±48 kHz
In compliance withETS 300422 , ETS 300445 , CE , FCC
Antenna connector2 BNC, 50 Ohms
Input voltage range1.8 V line
Audio output level (balanced)XLR: +18 dBu max
Audio output level (unbalanced)Jack: +12 dBu max
Operating time (transmitter)>8 h
Dimensions
(H x W x D)
Transmitter3.2" (82 mm) x 2.5" (64 mm) x 0.9" (24 mm)
Receiver8.3" (212 mm) x 8" (202 mm) x 1.7" (43 mm)
Weight
Transmitter0.35 lbs (160 g)
Receiver2.2 lb (980 g)
In the Box

In the Box

  • (1) EM 300 G3 rack-mount receiver
  • (1) SK 300 G3 bodypack transmitter

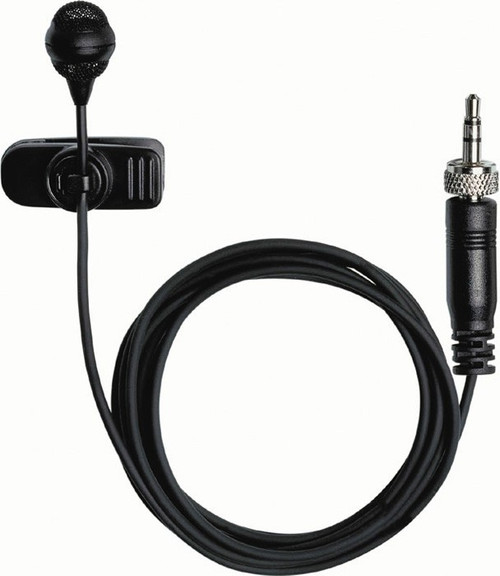

  • (1) ME 4 clip-on microphone (cardioid)

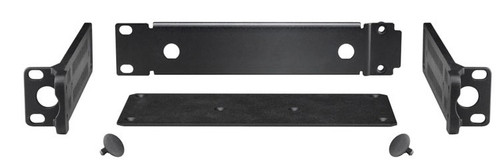

  • (1) GA 3 rack mount
  • (1) NT 2 power supply unit
  • (2) antennas
  • (2) AA batteries
  • Operating instructions
