- Description
Details
The Sennheiser ew 512 G3 Wireless Lavalier Microphone System is a presentation set with high-quality microphone. Included is the Stage- proven omni-directional MKE 2-ew clip-on mic, EM 500 G3 true diversity receiver, and SK 500 G3 bodypack transmitter with metal housing.
Success can be shared: based on the MKE 2 Gold, the included MKE 2-ew is one of Sennheiser's most successful and trusted clip-on condenser microphones. This set relays its high-quality signal via a compact bodypack transmitter to the flagship evolution EM 500 true diversity receiver. Sync up the bodypack to the receiver with a simple press of the sync button. Sennheiser's technical prowess in wireless technology allows you to focus on delivering your most successful presentation ever without worrying about your wireless.
In every respect, this professional receiver from the new Sennheiser G3 line provides the most features and performance the evolution series has to offer. It begins with an especially high number of presets possible per frequency bank (32), making setup of many wireless systems a breeze. The built-in Ethernet port allows computer control and monitoring with a PC running Sennheiser’s Wireless System Manager software. The large graphic display provides a great deal of additional information at a glance. One-touch sync function automatically links up a G3 transmitter with this receiver. Lastly, the switching power supply is ideal for touring acts and rental companies who need a wireless that can be powered from worldwide sources.
More usable systems per range. As the pros have known for years, having the option of lowering a transmitters RF output power helps immensely when simultaneously operating a large number of wireless systems. This transmitter also features wireless sync to link up to a compatible G3 receiver automatically with a push of a button. The revised backlit display provides a wealth of useful information at a glance, even on the darkest of stages.- Features
Features
- Sturdy metal housing (transmitter and receiver)
- 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 32 compatible frequencies
- Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
- High-quality true diversity reception
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Automatic frequency scan feature searches for available frequencies
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitter parameter from receiver
- User-friendly menu operation with more control options
- Illuminated graphic display, receiver also shows transmitter settings
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter feature battery indicatation in 4 steps, also shown on receiver display
- Programmable Mute function
- Integrated Equalizer and Soundcheck mode
- Contacts for recharging BA 2015 accupack directly in the transmitter
- Wide range of accessories adapts the system to any requirement
- Specification
RF frequency range 516 - 865 MHz Frequency response (microphone) 25 - 18,000 Hz Compander HDX Audio-XLR connector 6.3 mm Presets 32 Microphone electret Sound pressure level (SPL) 142 dB(SPL) max. THD, total harmonic distortion <0.9% AF sensitivity 6.3 mV/Pa Signal-to-noise-ratio > 115 dB(A) RF output power 10/30 mW Transmission/receiving frequencies 1680 Switching bandwidth 42 MHz Peak deviation ±48 kHz In compliance with ETS 300422 , ETS 300445 , CE , FCC Antenna connector 2 BNC, 50 Ohms Input voltage range 1.8 V line Audio output level (balanced) XLR: +18 dBu max Audio output level (unbalanced) Jack: +12 dBu max Operating time (transmitter) >8 h Dimensions
(H x W x D)Transmitter 3.2" (82 mm) x 2.5" (64 mm) x 0.9" (24 mm) Receiver 8.3" (212 mm) x 8" (202 mm) x 1.7" (43 mm) Weight Transmitter 0.35 lbs (160 g) Receiver 2.2 lb (980 g) - In the Box
In the Box
- (1) EM 500 G3 rack-mount receiver
- (1) SK 500 G3 bodypack transmitter
- (1) MKE 2-ew clip-on microphone (omni-directional)
- (1) GA 3 rack mount

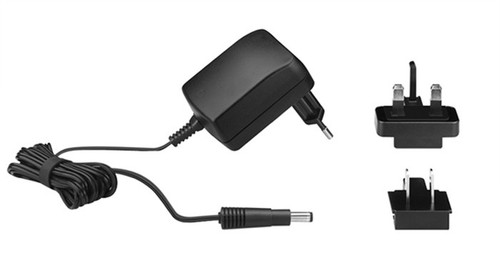

- (1) NT 2 power supply unit
- (2) antennas
- (2) AA batteries
- Operating instructions
