The Sennheiser ew 335 G3 Wireless Handheld Microphone System is a versatile presentation set that gives power with control.

Description

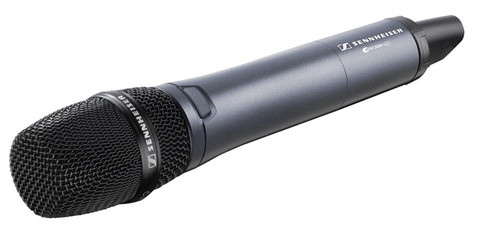

The Sennheiser ew 335 G3 Wireless Handheld Microphone System is a versatile presentation set with the Powerful SKM 300-835 G3 cardioid handheld mic with programmable Mute button, EM 300 G3 true diversity receiver with 1680 tuneable UHF frequencies, MZQ 1 microphone clip.

Sennheiser understands that the more self-reliant a device is, the more artistic freedom there is to enjoy. With this in mind, this new receiver has a built-in Ethernet port for remote PC monitoring and setup with Sennheiser’s Wireless System Manager software. This receiver’s wireless sync function makes it a breeze to link up any G3 transmitter with the unit. In addition, it has a large back-lit graphic display where receiver and transmitter information can be easily seen even on the darkest of stages.

The Sennheiser ew 335 G3 Wireless Handheld Microphone System gives power with control. This system not only ensures vocals cut through, but also provides the user with a programmable mute button on the mic. Add in a backlit graphic display, intuitive menu navigation, and you have a professional wireless system. Enjoy one-touch programming of the transmitter to the receiver via the wireless sync function. The Ethernet jack on the receiver allows for remote PC monitoring and control using Sennheiser's "Wireless Systems Manager" software. The ew 335 G3's hand-held transmitter is perfect for spontaneous dialogue and interviews.

Features

  • Sturdy metal housing (transmitter and receiver
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 24 compatible frequencies
  • Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitter parameter from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display, receiver also shows transmitter settings
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Programmable Mute button on transmitter body
  • Easy-exchangeable microphone modules from evolution series
  • Integrated Equalizer and Soundcheck mode
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Specifications

Frequency Response (Microphone) 80 - 18,000 Hz
Compander HDX
Audio-XLR Connector 6.3 mm
Presets 24
Microphone Dynamic
Operating Time (Transmitter) >8 h
Sound Pressure Level (SPL) 154 dB(SPL) max.
THD, Total Harmonic Distortion
AF Sensitivity 2.1 mV/Pa
Signal-to-Noise-Ratio > 115 dB(A)
RF Frequency Range 516 - 865 MHz
RF Output Power 10/30 mW
Transmission/Receiving Frequencies 1680
Switching Bandwidth 42 MHz
Peak Deviation ±48 kHz
In Compliance with ETS 300422 , ETS 300445 , CE , FCC
Antenna Connector 2 BNC, 50 Ohms
Audio Output Level (Balanced) XLR: +18 dBu max
Audio Output Level (Unbalanced) Jack: +12 dBu max
Dimensions
Receiver (H x W x D) 8.35" (212 mm) x 7.95" (202 mm) x 1.69" (43 mm)
Transmitter Ø 1.97" (50 mm) x 10.43" (265 mm)
Weight
Receiver 2.16 lbs (980 g)
Transmitter 0.99 lbs (450 g)

In the Box

  • (1) EM 300 G3 Rack-Mount Receiver
  • (1) SKM 300-835 G3 Handheld Transmitter (Cardioid, Dynamic)

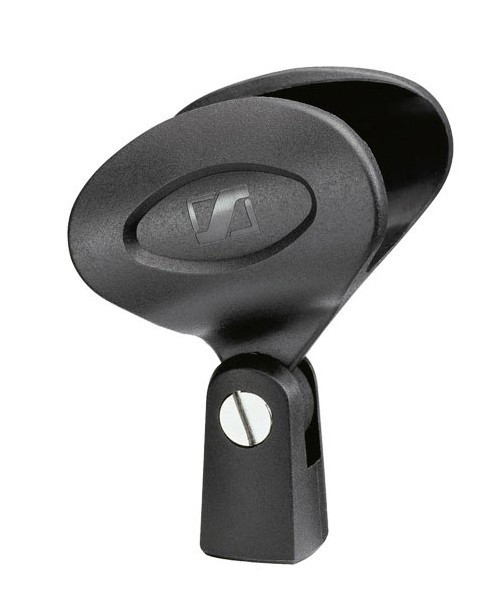

  • (1) MZQ 1 Microphone Clip
  • (1) NT 2 Power Supply Unit
  • (1) GA 3 Rack Mount
  • (2) Antennas
  • (2) AA Size Batteries
  • Operating Instructions
