A Powerful Performance
Go for XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 BRASS SET is an easy to use all-in-one wireless system, especially designed to provide a powerful live sound for brass instruments. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a rugged condenser gooseneck microphone.
- Features
Features
- Versatile gooseneck microphone with outstanding sound reproduction from the renowned evolution microphone series
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
- Specification
System Modulation Wideband FM Frequency Range A: 548 to 572 MHz Switching Bandwidth Up to 24 MHz Frequencies 1 frequency bank with up to 10 factory-preset channels Signal-to-Noise Ratio ≥ 103 dBA THD ≤ 0.9 % Temperature Range Operation 0 °C to +40 °C storage: – 20 °C to +70 °C Transmitter Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization) Receiver Receiver Principle Double superheterodyne Diversity Principle Antenna switching diversity via internal antennas Sensitivity < 3 μV at 52 dB(A)rms S/N (at peak deviation) AF Frequency Response 50 to 16,000 Hz (–3 dB) Max. AF Output Voltage (At peak deviation, 1 kHz AF) 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu XLR socket (balanced): +12 dBu Audio Adjustment Range 45 dB, adjustable in 5-dB steps Power Supply 12 V DC nom. / 300 mA Squelch Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) Line/Mic Level 20 dB, switchable Housing Material Rugged ABS housing Dimensions (H x W x D) Approx. 1.65" (42 mm) x 7.87" (200 mm) x 5" (127 mm) Weight Approx. 0.75 lbs e 908T Mic Transducer Principle Condenser, pre-polarized Sensitivity 0.6 mV/Pa Pick-up Pattern Super-cardioid Max. SPL 147 dB Transmitter RF Output Power 10 mW AF Frequency Response 50 to 16,000 Hz (Line)
80 to 16,000 Hz (Mic)Audio Input 3.5 mm jack socket Max. Input voltage Typ. 1.5 VRMS Mic/
Typ. 2.6 VRMS Line
@ –30 dB GainPower Supply 2 AA size batteries, 1.5 V Operating Time Approx. 10 hours Adjustment Range of Transmitter Sensitivity 0 to – 30 dB, adjustable in 10-dB steps Housing Material Rugged ABS housing Dimensions (H x W x D) 3.78" (96 mm) x 2.8" (71 mm) x 1.10" (28 mm) Weight 0.21 lbs (0.0949 kg) - Documents
Documents
- In The Box
In The Box
- (1) Receiver EM-XSW 1
- (1) Gooseneck Microphone e908T

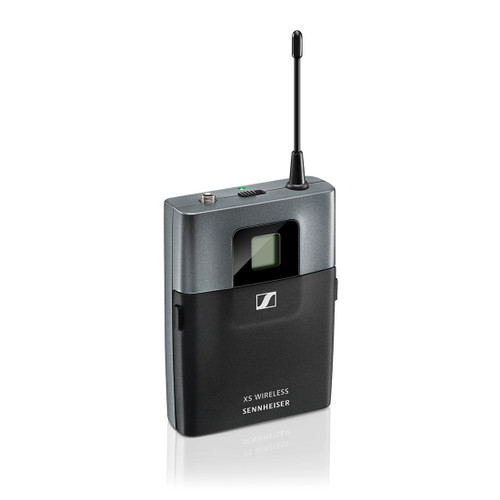

- (1) Bodypack Transmitter SK-XSW
- (1) Power Supply NT 12-5 CW
- (2) AA Batteries
