Sennheiser XSW 1-ME2 Vocal Wireless System with Bodypack Transmitter and Lavalier Microphone

Sennheiser XSW 1-ME2 Vocal Wireless System with Bodypack Transmitter and Lavalier Microphone

Name: Sennheiser XSW 1-ME2 Vocal Wireless System with Bodypack Transmitter and Lavalier Microphone
Brand: Sennheiser
SKU: SENN-XSW1-ME2-A
Price: 399 USD
Availability: InStock

Write a Review

Part #:

506980

Model #:

XSW 1-ME2-A

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation.

Description

Inspire Your Audience

Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobtrusive clip-on microphone.

Features

Compact bodypack transmitter, unobtrusive clip-on microphone
Antenna-switching diversity reception
Integrated antennas
Automatic frequency management and synchronization via remote channel for easy setup
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels

Specifications

System
Modulation	Wideband FM
Frequency Range	A: 548 to 572 MHz
Switching Bandwidth	Up to 24 MHz
Frequencies	Adjustable in 25-KHz steps 1 frequency bank with up to 12 factory-preset channels
Signal-to-Noise Ratio	≥ 103 dBA
THD	≤ 0.9 %
Temperature Range Operation	0 °C to +40 °C storage: – 20 °C to +70 °C
Transmitter Synchronization	2.4 GHz, Low Power OQPSK (only active during synchronization)
Receiver
Receiver Principle	Double superheterodyne
Diversity Principle	True Diversity
Sensitivity	< 3 μV at 52 dB(A)rms S/N (at peak deviation)
AF Frequency Response	50 to 16,000 Hz (–3 dB)
Max. AF Output Voltage	(At peak deviation, 1 kHz AF) 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu XLR socket (balanced): +12 dBu
Audio Adjustment Range	40 dB, adjustable in 5-dB steps
Power Supply	12 V DC nom. / 300 mA
Squelch	Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Line/Mic Level	20 dB, switchable
Housing Material	Rugged metal housing
Dimensions (H x W x D)	1.65" (42 mm) x 7.87" (200 mm) x 5" (127 mm)
Weight	Approx. 1.49 lbs
Transmitter
AF Frequency Response	50 to 16,000 Hz (Line) 80 to 16,000 Hz (Mic)
Audio Input	3.5 mm jack socket
Max. Input Voltage	Typ. 1.5 VRMS Mic / typ. 2.6 VRMS Line @ –30 dB Gain
Power Supply	2 AA size batteries, 1.5V
Operating Time	Approx. 10 hours
Adjustment Range of Transmitter Sensitivity	0 to – 30 dB, adjustable in 10-dB steps
Housing Material	Rugged ABS housing
Dimensions (H x W x D)	3.77" (96 mm) x 2.79" (71 mm) x 1.1" (28 mm)
Weight	Approx. 0.21 lbs (0.096 kg)
Microphone
Transducer Principle	Condenser, pre-polarized
Sensitivity	20 mV/Pa
Pick-Up Pattern	Omni-directional
Max. SPL	130 dB

DOCUMENTS

In The Box

(1) EM-XSW 1 Receiver
(1) ME 2-2 Lavalier Microphone

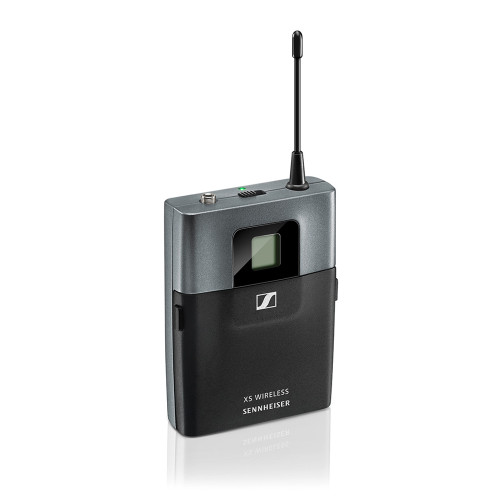

(1) SK-XSW Bodypack Transmitter
(1) NT 12-5 CW Power Supply
(2) AA Batteries
