Sennheiser XSW2-Cl1 Guitar Wireless Instrument System

By Sennheiser

Sennheiser XSW2-Cl1 Guitar Wireless Instrument System

Name: Sennheiser XSW2-Cl1 Guitar Wireless Instrument System
Brand: Sennheiser
SKU: SENN-507136
Price: 429 USD
Availability: InStock

Write a Review

Part #:

507136

Model #:

XSW 2-CI1-A

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The XS WIRELESS 2 INSTRUMENT SET is an easy to use all-in- one wireless system for guitarists and bassists, excellent for live sound. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable. Metal receiver housing and rackmount kit included.

Description

Amplify Your Tunes

High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

Features

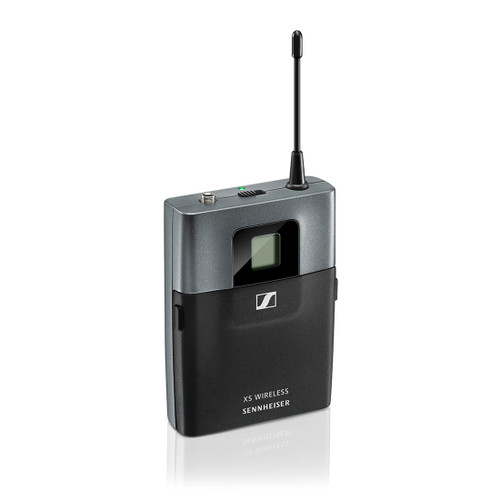

Robust instrument cable and compact bodypack transmitter
True diversity receiver with metal housing
External antennas
Automatic frequency management and synchronization via remote channel for easy setup
Fully tunable over a wide range of UHF frequencies
Rackmount kit included
Up to 12 compatible channels

Specifications

System
Modulation	Wideband FM
Frequency Range	A: 548 to 572 MHz
Switching Bandwidth	Up to 24 MHz
Frequencies	Adjustable in 25-kHz steps 8 frequency banks, each with up to 12 factory-preset channels
Signal-to-Noise Ratio	≥ 103 dBA
THD	≤ 0.9 %
Temperature Range Operation	0 °C to +40 °C storage: – 20 °C to +70 °C
Transmitter Synchronization	2.4 GHz, Low Power OQPSK (only active during synchronization)
Receiver
Receiver Principle	Double superheterodyne
Diversity Principle	True Diversity
Sensitivity	< 3 μV at 52 dB(A) rms S/N
AF Frequency Response	50 to 16,000 Hz (–3 dB)
Max. AF Output Voltage	1/4" (6.3 mm) jack socket (unbalanced): +6 dBu XLR socket (balanced): +12 dBu
Audio Adjustment Range	40 dB, adjustable in 5-dB steps
Power Supply	12 V DC nom. / 300 mA
Squelch	Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Line/Mic Level	20 dB, switchable
Housing Material	rugged metal housing
Dimensions (H x W x D)	Approx. 1.65" (42 mm) x 7.87" (200 mm) x 5" (127 mm)
Weight	1.50 lbs (0.68 kg)
Transmitter
RF Output Power	10 mW
AF Frequency Response	50 to 16,000 Hz (Line) 80 to 16,000 Hz (Mic)
Audio Input	3.5 mm jack socket
Max. Input voltage	Typ. 1.5 VRMS Mic/ Typ. 2.6 VRMS Line @ –30 dB Gain
Power Supply	2 AA size batteries, 1.5 V
Operating Time	Approx. 10 hours
Adjustment Range of Transmitter Sensitivity	0 to – 30 dB, adjustable in 10-dB steps
Housing Material	Rugged ABS housing
Dimensions (H x W x D)	3.78" (96 mm) x 2.8" (71 mm) x 1.10" (28 mm)
Weight	0.21 lbs (0.0949 kg)
