The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e835 (superior dynamic, cardioid) to perform under pressure. True Diversity receiver in a metal housing and rackmount kit included.

Description

Raise Your Voice

High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e835 (superior dynamic, cardioid) to perform under pressure. True Diversity receiver in a metal housing and rackmount kit included.

Features

Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
True diversity receiver with metal housing
External antennas
Automatic frequency management and synchronization via remote channel for easy setup
Fully tunable over a wide range of UHF frequencies
Rackmount kit included
Up to 12 compatible channels

Specifications

System
Modulation	Wideband FM
Frequency Range	A: 548 to 572 MHz
Switching Bandwidth	Up to 24 MHz
Frequencies	Adjustable in 25-kHz steps 8 frequency banks, each with up to 12 factory-preset channels
Signal-to-Noise Ratio	≥ 103 dBA
THD	≤ 0.9 %
Temperature Range Operation	0 °C to +40 °C storage: – 20 °C to +70 °C
Transmitter Synchronization	2.4 GHz, Low Power OQPSK (only active during synchronization)

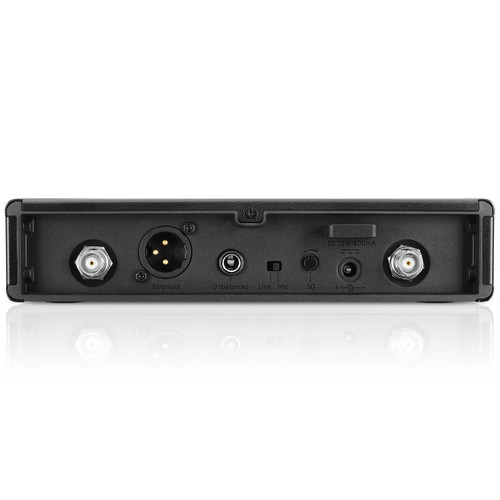

Receiver
Receiver Principle	Double superheterodyne
Diversity Principle	True Diversity
Sensitivity	< 3 μV at 52 dB(A) rms S/N
AF Frequency Response	50 to 16,000 Hz (–3 dB)
Max. AF Output Voltage	1/4" (6.3 mm) jack socket (unbalanced): +6 dBu XLR socket (balanced): +12 dBu
Audio Adjustment Range	40 dB, adjustable in 5-dB steps
Power Supply	12 V DC nom. / 300 mA
Squelch	Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Line/Mic Level	20 dB, switchable
Housing Material	rugged metal housing
Dimensions (H x W x D)	Approx. 1.65" (42 mm) x 7.87" (200 mm) x 5" (127 mm)
Weight	1.50 lbs (0.68 kg)

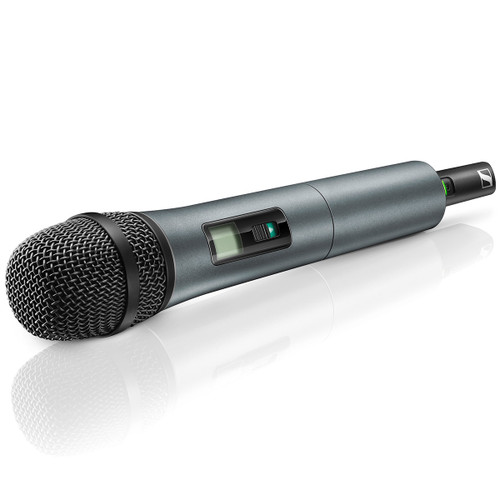

SKM 835 Mic
RF Output Power	10 mW
AF Frequency Response	80 to 16,000 Hz
Power Supply	2 AA size batteries, 1.5 V
Operating Time	Approx. 10 hours
Microphone Type	Dynamic
Input Sensitivity (Capsule)	1.5 mV/Pa
Pick-up Pattern	Cardioid
Adjustment Range of Transmitter Sensitivity	0 to –30 dB, adjustable in 10-dB steps
Housing Material	Rugged ABS housing
Dimensions (L x Dia)	10.24" (260 mm) x 1.97" (50 mm)
Weight	Approx. 0.54 lbs (245 g)

DOCUMENTS

In The Box

(1) Receiver EM-XSW 2
(1) Handheld Transmitter SKM 835-XSW
(1) Microphone Clamp MZQ 1
(1) Power Supply NT 12-5 CW
(2) AA Batteries
(1) Rackmount Kit
(1) Pouch
