Inspire Your Audience
High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.
The XS WIRELESS 2 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobtrusive clip-on microphone. Metal receiver housing and rackmount kit included.
| System | |
|---|---|
| Modulation | Wideband FM |
| Frequency Range | A: 548 to 572 MHz |
| Switching Bandwidth | Up to 24 MHz |
| Frequencies | Adjustable in 25-KHz steps 1 frequency bank with up to 12 factory-preset channels |
| Signal-to-Noise Ratio | ≥ 103 dBA |
| THD | ≤ 0.9 % |
| Temperature Range Operation | 0 °C to +40 °C storage: – 20 °C to +70 °C |
| Transmitter Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |

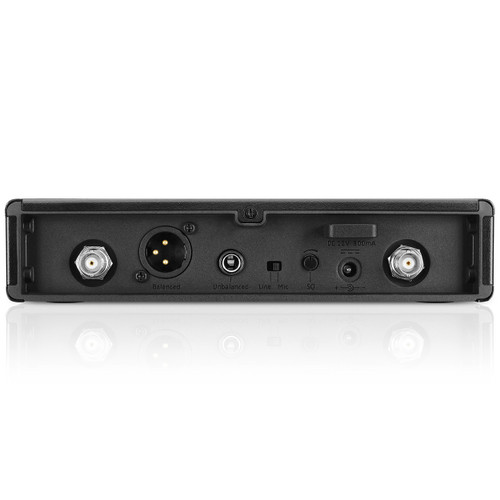

| Receiver | |
| Receiver Principle | Double superheterodyne |
| Diversity Principle | True Diversity |
| Sensitivity | < 3 μV at 52 dB(A)rms S/N (at peak deviation) |
| AF Frequency Response | 50 to 16,000 Hz (–3 dB) |
| Max. AF Output Voltage | (At peak deviation, 1 kHz AF) 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu XLR socket (balanced): +12 dBu |
| Audio Adjustment Range | 40 dB, adjustable in 5-dB steps |
| Power Supply | 12 V DC nom. / 300 mA |
| Squelch | Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) |
| Line/Mic Level | 20 dB, switchable |
| Housing Material | Rugged metal housing |
| Dimensions (H x W x D) | 1.65" (42 mm) x 7.87" (200 mm) x 5" (127 mm) |
| Weight | Approx. 1.49 lbs |

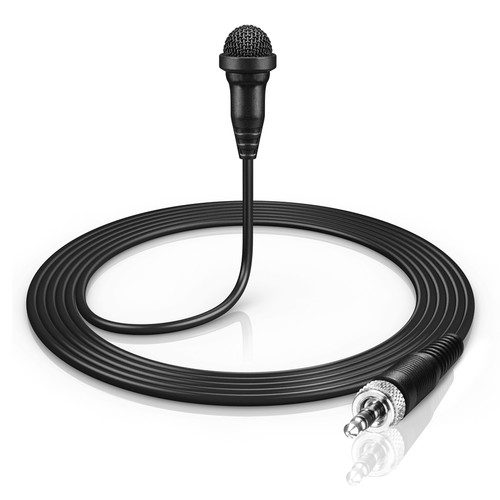

| Microphone | |
| Transducer Principle | Condenser, pre-polarized |
| Sensitivity | 20 mV/Pa |
| Pick-Up Pattern | Omni-directiona |
| Max. SPL | 130 dB |
| Transmitter | |
| AF Frequency Response | 50 to 16,000 Hz (Line) 80 to 16,000 Hz (Mic) |
| Audio Input | 3.5 mm jack socket |
| Max. Input Voltage | Typ. 1.5 VRMS Mic / typ. 2.6 VRMS Line @ –30 dB Gain |
| Power Supply | 2 AA size batteries, 1.5V |
| Operating Time | Approx. 10 hours |
| Adjustment Range of Transmitter Sensitivity | 0 to – 30 dB, adjustable in 10-dB steps |
| Housing Material | Rugged ABS housing |
| Dimensions (H x W x D) | 3.77" (96 mm) x 2.79" (71 mm) x 1.1" (28 mm) |
| Weight | Approx. 0.21 lbs (0.096 kg) |
| NT 12-5 CW Power Supply Unit | |
| Nominal Input Voltage | 100 to 240 V~ |
| Power Frequency | 50 or 60 Hz |
| Input Current | Max. 200 mA |
| Nominal Output Voltage | 12 V |
| Standby Power Consumption | ≤ 0.1W |
| Energy Efficiency Level | VI |
| Temperature Range | 0 °C to +40 °C |
| Storage Temperature | – 20 °C to +70 °C |
| Relative Air Humidity | Max. 95% |
| Weight | Approx. 0.14 lbs (0.065 kg) (without adapter) |
