Shure BLX14R Rackmount Wireless Guitar System

By Shure

Shure BLX14R Rackmount Wireless Guitar System

Name: Shure BLX14R Rackmount Wireless Guitar System
Brand: Shure
SKU: SHURE-BLX14R
Price: 419 USD
Availability: InStock

Write a Review

Part #:

BLX14R-H10

Model #:

BLX14R

Current Stock:

MSRP: $552.00

$419.00

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. The BLX14R is part of the BLX wireless systems family and features the WA302 Instrument Cable.

Description

The Shure BLX Wireless System combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

Rack-mountable and featuring rugged metal construction, the BLX4R offers simple setup and intuitive controls. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. Removable antennas allow for quick antenna distribution.

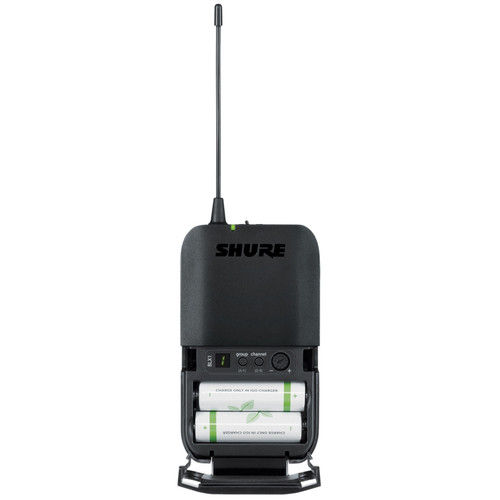

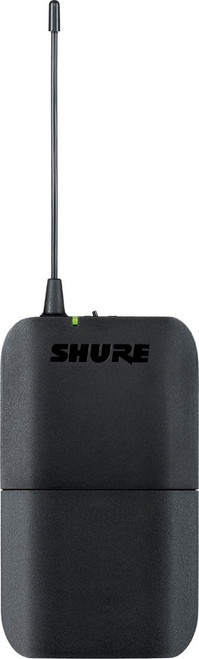

The durable BLX1 features a lightweight, ergonomic design and adjustable gain control. It comes equipped with power and battery status LED, 2 AA batteries that provide up to 14 hours of continuous use and has an operating range (line of sight) of 300 ft (91 m).

The WA302 Instrument Cable connects the body-pack transmitter to a guitar or other instrument. It Features a 2.5 ft (0.75 m), length with 1/4" plug and 4-pin mini connector (TA4F) (supplied with instrument systems).

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features

BLX14R Bodypack Wireless System:

Easy set up and operation
One-touch Quickscan frequency selection quickly locates the best open frequency
Legendary Shure audio and durable construction

BLX4R Rack Mount Receiver:

Adjustable output level
Removable antennas for quick antenna distribution
LCD display with detailed RF and audio metering
Rack mount hardware included
Up to 12 compatible systems per frequency band (region dependent)
Microprocessor-controlled internal antenna diversity
One-touch QuickScan frequency selection quickly locates the best frequency
1/4" and XLR audio outputs
Two color audio status indicator LED

BLX1 Bodypack Transmitter:

Quick and easy receiver frequency matching

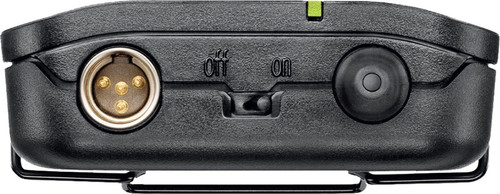

TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables
Easily accessible On / Off switch

WA302 Instrument Cable:

Features a 2.5 ft (0.75 m), length with 1/4" plug
4-pin mini connector (TA4F) (supplied with instrument systems)

Specifications

System
Working Range	300 ft (91 m) Line of Sight
Audio Frequency Response	50 to 15,000 Hz
Total Harmonic Distortion	0.5%, typical
Dynamic Range	100 dB, A-weighted, typical
Operating Temperature	-18°C (0°F) to 57°C (135°F)
BLX4R Rack Mount Receiver
Output Impedance	XLR connector: 200 Ω 1/4" (6.35 mm) connector: 50 Ω
Audio Output Level	XLR connector: –20.5 dBV; 1/4" (6.35 mm) connector: –13 dBV (into 100 kΩ load)
Image Rejection	>50 dB, typical
Housing	Molded ABS, steel
Power Requirements	12–15 V DC @ 260 mA, supplied by external power supply (tip positive)
Dimensions (H x W x D)	1.97" (50 mm) X 7.80" (198 mm) X 6.42" (163 mm)
Weight (w/o antennas)	2.2 lbs (998 g)
BLX1 Bodypack Transmitter
Audio Input Level	Gain max: -16 dBV maximum; min (0 dB): +10 dBV maximum
Gain Adjustment Range	26 dB
Input Impedance	1 MΩ
RF Transmitter Output	10 mW, typical
Housing	Molded ABS
Power Requirements	2 LR6 AA batteries, 1.5 V, alkaline
Battery Life	Up to 14 hours (alkaline)
Dimensions (H x W x D)	4.33" (110 mm) x 2.52" (64 mm) x 0.83" (21 mm)
Weight	2.6 oz (75 g)
