The Shure BLX wireless systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.

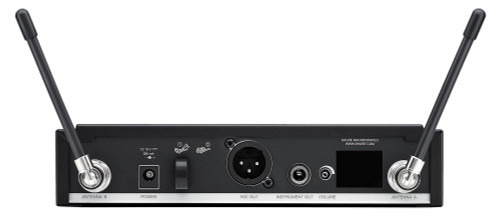

Rack-mountable and featuring rugged metal construction, the BLX4R offers simple setup and intuitive controls. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. Removable antennas allow for quick antenna distribution.

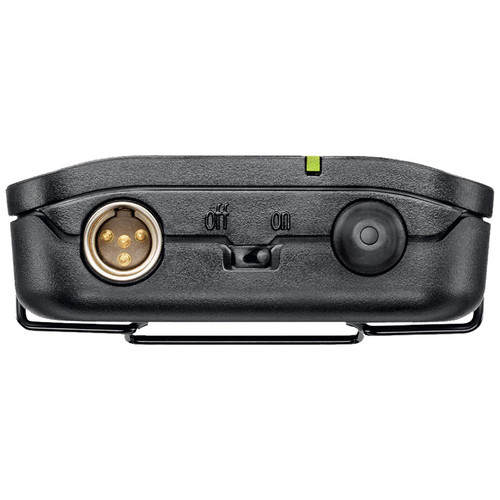

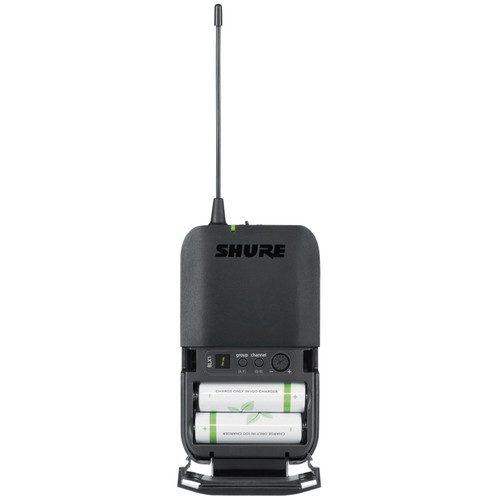

The durable BLX1 features a lightweight, ergonomic design and adjustable gain control. It comes equipped with power and battery status LED, 2 AA batteries that provide up to 14 hours of continuous use and has an operating range (line of sight) of 300 ft (91 m).
The Microflex MX153 provides outstanding clarity in an extremely comfortable over-the-ear design. This professional subminiature ear set microphone is ideal for applications in which improved gain before feedback over lavalier microphones is desired. Delivering exceptional speech clarity, the MX153 is ideal for corporate presentations, houses of worship, A/V conferencing, and live sound reinforcement.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
BLX14R/MX53 Headworn Wireless System:
BLX4R 1/2 Rack, Single Channel Wireless Receiver:
BLX1 Bodypack Transmitter:
MX153 Earset Headworn Microphone:
| BLX14R/MX53 System | |
|---|---|
| Working Range | 300 ft (91 m) Line of Sight |
| Audio Frequency Response | 50 to 15,000 Hz |
| Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone | 0.5%, typical |
| Dynamic Range | 100 dB, A-weighted, typical |
| Operating Temperature | -18°C (0°F) to 57°C (135°F) |
| BLX4R Rack Mount Receiver | |
| Output Impedance | XLR connector: 200 Ω; 1/4" (6.35 mm) connector: 50 Ω |
| Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone | XLR connector: –20.5 dBV; 1/4" (6.35 mm) connector: –13 dBV (into 100 kΩ load) |
| Image Rejection | >50 dB, typical |
| Housing | Molded ABS, steel |
| Power Requirements | 12–15 V DC @ 260 mA, supplied by external power supply (tip positive) |
| Dimensions (H x W x D) | 1.97" (50 mm) x 7.80" (198 mm) x 6.42" (163 mm) |
| Weight (without antennas) | 2.2 lbs (998 g) |
| MX153 Earset Headworn Microphone | |
| Transducer Type | Electret condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 to 20,000 Hz |
| Sensitivity (open circuit voltage, @ 1 kHz, typical) | -41 dBV/Pa (9 mV) |
| Maximum SPL (1 kHz at 1% THD) | 2500 Ω load: 107 dB SPL 1000 Ω load: 107 dB SPL |
| Signal-To-Noise Ratio | 60 dB |
| Dynamic Range @ 1 kHz | 2500 Ω load: 73 dB 1000 Ω load: 73 dB |
| Self-Noise (equivalent SPL, A-weighted, typical) | 34 dB |
| Operating Temperature Range | -18°C (0°F) to 57°C (135°F) |
| Polarity | Positive pressure on diaphragm produces negative voltage on pin 3 with respect to pin 1 |
| Power Requirements | +5 V DC (130 μA minimum) |
| Weight | 0.043 lbs (19.76 g) |
| BLX1 Bodypack Transmitter | |
| Audio Input Level | Gain max: -16 dBV maximum; min (0 dB): +10 dBV maximum |
| Gain Adjustment Range | 26 dB |
| Input Impedance | 1 MΩ |
| RF Transmitter Output | 10 mW, typical |
| Housing | Molded ABS |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | Up to 14 hours (alkaline) |
| Dimensions (H x W x D) | 4.33" (110 mm) x 2.52" (64 mm) x 0.83" (21 mm) |
| Weight (without batteries) | 2.6 oz (75 g) |
