The Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

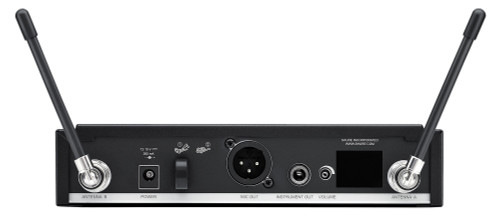

Rack-mountable and featuring rugged metal construction, the BLX4R offers simple setup and intuitive controls. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. Removable antennas allow for quick antenna distribution.

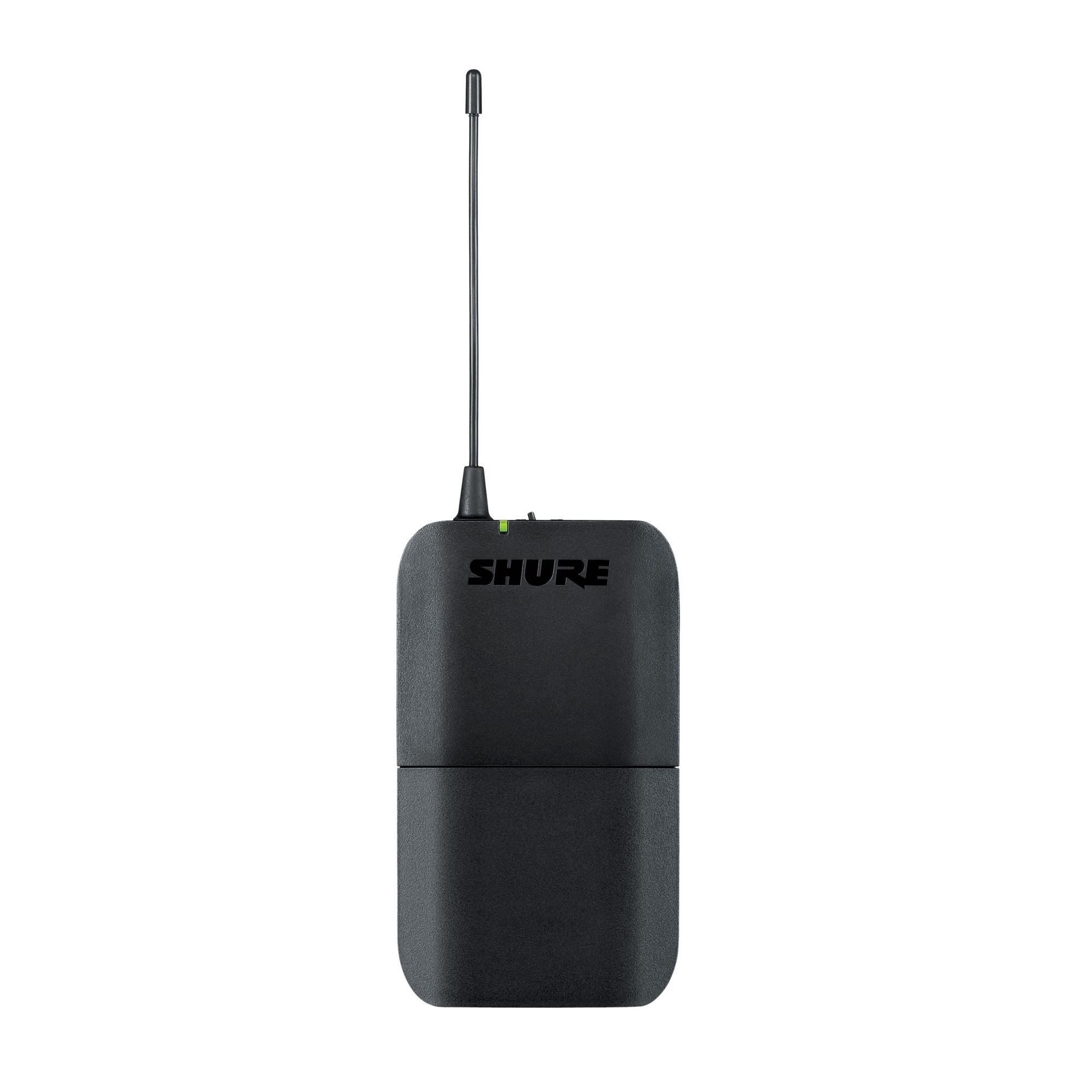

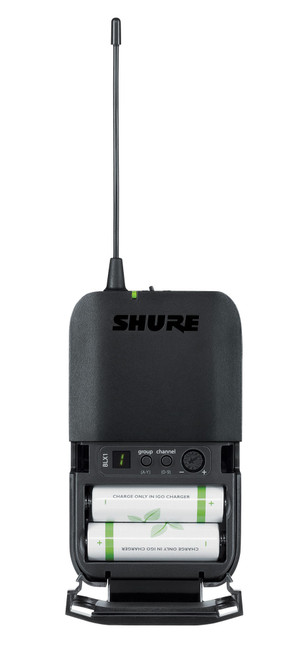

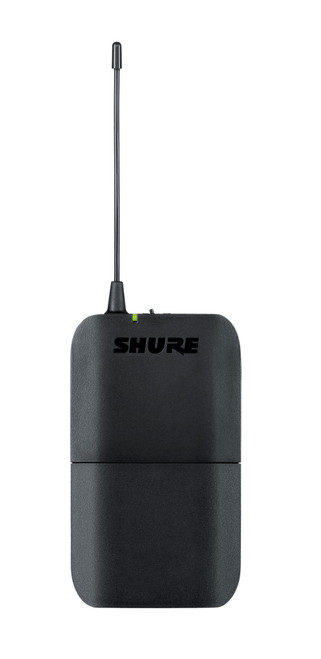

The durable BLX1 features a lightweight, ergonomic design and adjustable gain control. It comes equipped with power and battery status LED, 2 AA batteries that provide up to 14 hours of continuous use and has an operating range (line of sight) of 300 ft (91 m). (Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation).

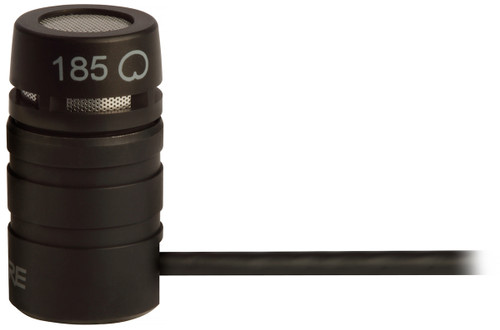

WL185 is a lavalier electret condenser mic designed for use with a wireless body-pack transmitter. It has a 4 ft (1.2 m) cable terminated with a miniature 4-pin mini connector. The included tie clip can be rotated in 90 degree intervals for placement flexibility. It features CommShield Technology, which guards against interference from cellular RF devices and digital bodypack transmitters. It is recommended for general purpose sound reinforcement applications requiring good rejection of ambient noise. It has a pickup angle of 130 degrees and use of the windscreen is highly recommended.
BLX14R/W85 Lavalier Wireless System:
BLX4R Rack Mount Receiver:
WL185 Cardioid Condenser Lavalier Microphone:
BLX1 Bodypack Transmitter:
| System | |
|---|---|
| Working Range | 300 ft (91 m) Line of Sight |
| Audio Frequency Response | 50 to 15,000 Hz |
| Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone | 0.5%, typical |
| Dynamic Range | 100 dB, A-weighted, typical |
| Operating Temperature | -18°C (0°F) to 57°C (135°F) |
| BLX4R Rack Mount Receiver | |
| Output Impedance | XLR connector: 200 Ω 6.35 mm (1/4”) connector: 50 Ω |
| Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone | XLR connector: –20.5 dBV; 6.35 mm (1/4”) connector: –13 dBV (into 100 kΩ load) |
| Image Rejection | >50 dB, typical |
| Housing | Molded ABS, steel |
| Power Requirements | 12–15 V DC @ 260 mA, supplied by external power supply (tip positive) |
| Dimensions (H x W x D) | 1.57" (40 mm) X 7.40" (188 mm) X 4.06" (103 mm) |
| Weight (without antennas) | 35.20 oz (998 g) |
| WL185 Lavalier Microphone | |
| Type | Condenser (electret bias) |
| Frequency Response | 50 to 17,000 Hz |
| Output Impedance | 1800 Ω |
| Sensitivity (1 Pa = 94 dB SPL) | -45.5 dBV/Pa |
| Maximum Sound Pressure Level | 130.5 dB SPL |
| Output Noise (A-weighted) | 28.0 dB SPL |
| Dynamic Range | 102.5 dB |
| Polarity | Positive pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1 |
| BLX1 Bodypack Transmitter | |
| Audio Input Level | Gain max: -16 dBV maximum; min (0 dB): +10 dBV maximum |
| Gain Adjustment Range | 26 dB |
| Input Impedance | 1 MΩ |
| RF Transmitter Output | 10 mW, typical |
| Housing | Molded ABS |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | Up to 14 hours (alkaline) |
| Dimensions (H x W x D) | 4.33" (110 mm) x 2.52" (64 mm) x 0.83" (21 mm) |
| Weight (without batteries) | 2.6 oz (75 g) |
