Shure FP25/SM58 Handheld Wireless System (Discontinued)

Shure FP25/SM58 Handheld Wireless System (Discontinued)

Name: Shure FP25/SM58 Handheld Wireless System (Discontinued)
Brand: Shure
SKU: SHURE-FP25/SM58
Price: 499 USD
Availability: OutOfStock

Write a Review

Part #:

FP25/SM58

Model #:

FP25/SM58

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

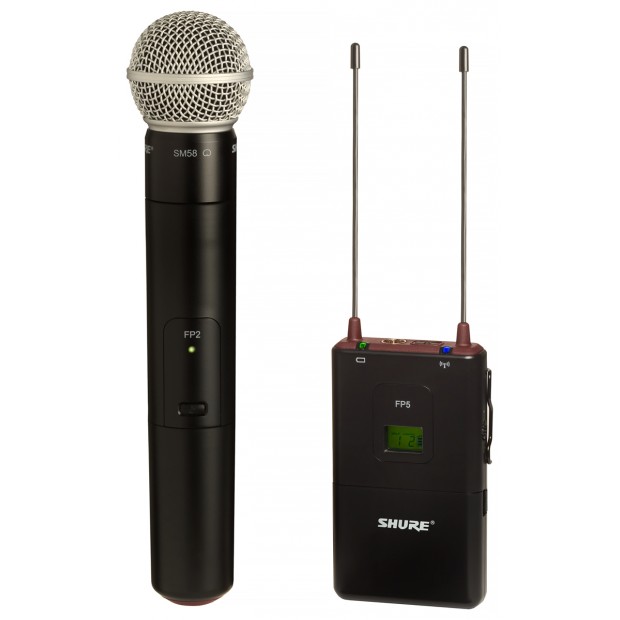

The FP25/SM58 Handheld Wireless System is part of the FP wireless systems family.

Description

The FP25/SM58 Handheld Wireless System is part of the FP wireless systems family.

When portability is required, FP Wireless and its intuitive, flexible components are the ideal solution. FP Wireless features proven wireless technology, including Shure patented Audio Reference Companding, for professional sound capture in demanding videography and electronic field production (EFP) environments.

Features

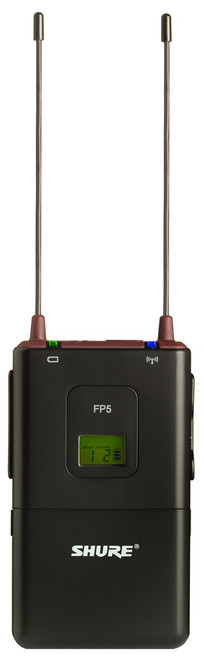

FP5 Portable Receiver:

Power LED with low battery indicator
RF LED that indicates transmitter sync when illuminated
Receiver output level control that manages output to camera/mixer
Diversity antennas for consistent reception of signal transmission
TA3F cable output to either XLR or 1/8" connectors included
Camera shoe mount included
Rugged and lightweight Shure construction

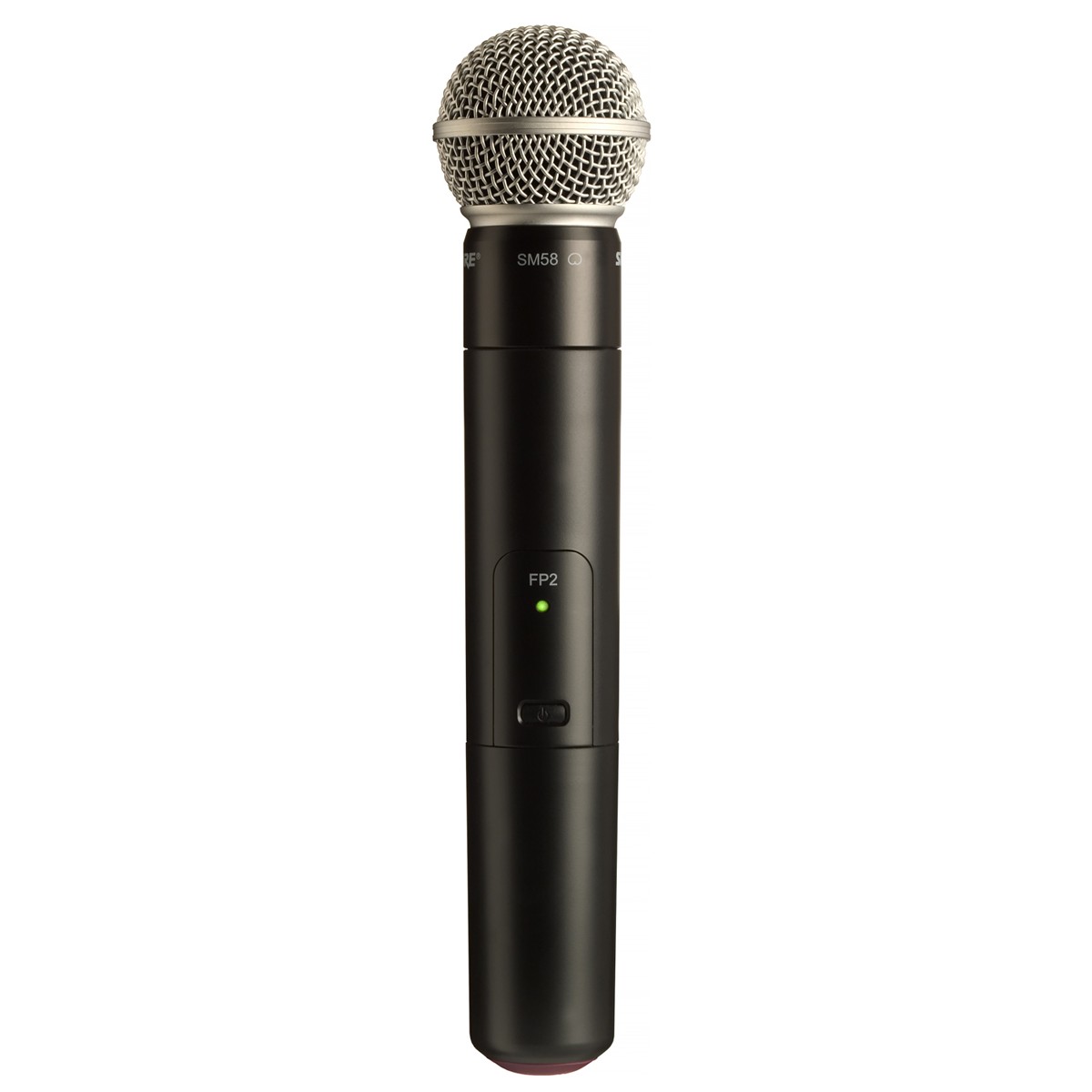

FP2/SM58 Handheld Wireless Microphone Transmitter:

Automatic transmitter setup function that instantly syncs the transmitter to the receiver frequency
LED indicator for control lockout, IR/RF sync, and low battery
Patented Audio Reference Companding for crystal-clear sound beyond the limits of conventional wireless technology when used with FP Wireless Systems

Specifications

FP5 Portable Receiver
Working Range	100 m (300 ft)
Line of Sight	Note: Actual Range Depends on RF Signal Absorption, Reflection and Interference
Tonekey	32.768 kHz
Audio Frequency Response	45 to 15000 Hz (±2 dB) Note: Dependent on Microphone Type
Total Harmonic DistortionRef. ±38 kHz Deviation with 1 kHz Tone
Dynamic Range	>100 dB, A-Weighted
Operating Temperature Range	-18°C (0°F) to +57°C (135°F) Note: Battery Characteristics May Limit This Range
Audio Output Type	TA3F
Configuration	Impedance Balanced
Pin Assignments	1=Ground, 2=Hot, 3=Cold
Maximum Audio Output LevelRef. ±38 kHz Deviation with 1 kHz Tone	-5 dBV (into 600 Ω Load)
Impedance	200 Ω
Housing	Molded polycarbonate Case
Sensitivity	-108 dBm for 12 dB SINAD, Typical
Power Requirements	2 AA Batteries, 1.5V
Battery Life	Up to 12 Hours (Alkaline)
Dimensions (H x W x D)	4.25" (108 mm) x 2.52" (64 mm) x 0.75" (19 mm)
Weight	0.178 lbs (0.081 kg)
FP2 Handheld Transmitter
Maximum Input Level	At -10 dB Gain Setting: +2 dBV / at 0 dB Gain Setting: -8 dBV
Gain Adjustment Range	10 dB
RF Output Power	10 to 30 mW (Varies By Region)
Housing	Molded PC/ABS Handle and Battery Cup
Power Requirements	2 AA Batteries, 1.5V
Battery Life	Up to 12 Hours (Alkaline)
Dimensions (Dia x L)	10" (254 mm) x 2" (51 mm)
Weight	0.639 lbs (0.290 kg)
