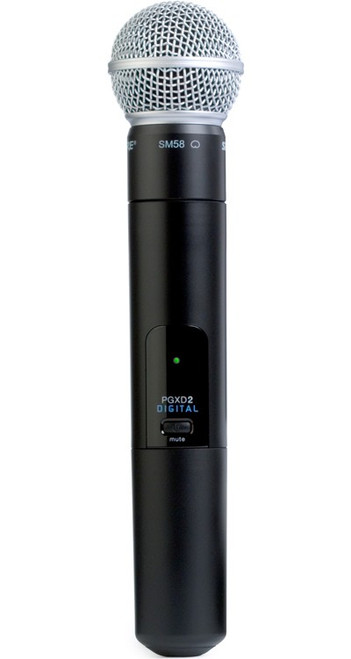

Shure PGXD24/SM58 Handheld Wireless Microphone System (Discontinued)

Shure PGXD24/SM58 Handheld Wireless Microphone System (Discontinued)

Name: Shure PGXD24/SM58 Handheld Wireless Microphone System (Discontinued)
Brand: Shure
SKU: SHURE-PGXD24/SM58
Price: 399 USD
Availability: OutOfStock

Write a Review

Part #:

PGXD24/SM58-X8

Model #:

PGXD24/SM58

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Shure PGXD24/SM58 Handheld Wireless Microphone System for vocalists, guitarists, and presenters, PGX Digital combines the trusted legacy of Shure microphones with state-of-the-art, 24-bit digital wireless technology that delivers strong, clean RF performance.

Description

The PGXD24/SM58 Handheld Wireless Microphone System for vocalists, guitarists, and presenters, PGX Digital combines the trusted legacy of Shure microphones with state-of-the-art, 24-bit digital wireless technology that delivers strong, clean RF performance. The result is wireless audio that sounds like wired, rock-solid RF signal, and simple setup and operation.

The Shure PGXD4 receiver offers innovative 24-bit, 48 kHz digital audio technology for wireless that sounds like wired. True digital diversity means two antennas and two independent receivers are constantly working to provide rock-solid RF signal, and one touch scan finds a clear frequency instantly, making set up a snap.

Compatible with Shure microphones trusted by musicians for decades, including the legendary SM58, the PGXD2 transmits wireless audio with pure digital clarity and rock-solid reliability.

The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.

Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoors.

Features

Includes:
PGXD4 Wireless Receiver
PGXD2 Handheld Transmitter
SM58 Vocal Microphone
PGXD2 Handheld Transmitter Features:
Power, mute, and battery status LED.
Up to 9 hours of continuous use from 2 AA batteries.
200 ft (60 m) operating range.
10 dB of adjustable gain.
Lockable interface prevents accidental setting changes.
Rugged construction for reliable performance show after show.
PGXD4 Wireless Receiver Features:
24-bit / 48kHz digital technology for incredibly accurate sound.
Automatic frequency selection locates a clear channel instantly.
One-touch sync automatically syncs the transmitter and receiver.
True digital diversity for rock-solid wireless signal reliability.
Up to 5 compatible channels per frequency band.
1/4" and XLR audio outputs.
Included padded carrying case for portability and protection.
SM58 Vocal Microphone Features:
Frequency response tailored for vocals, with brightened midrange and bass rolloff.
Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise.
Pneumatic shock-mount system cuts down handling noise.
Effective, built-in spherical wind and pop filter.
Supplied with break-resistant stand adapter which rotates 180 degrees.
Legendary Shure quality, ruggedness and reliability.
Cardioid (unidirectional) dynamic.
Frequency response: 50 to 15,000 Hz.
Replacement cartridge: R59.

Specifications

Working Range (Line of Sight)	60 m (200 ft)
RF Carrier Range	X8: 902–928 MHz; X8A: 915–928 MHz; X8B: 902–907.5 MHz, 915–928 MHz
Audio Frequency Response	20–20000 Hz
Total Harmonic Distortion (Ref. 1 kHz, 6 dB below input clip)
Dynamic Range	>108 dB, A-weighted
Operating Temperature Range	-18°C (0°F)– +50°C (122°F)
PGXD4 Wireless Receiver	Specifications
Housing	ABS
Sensitivity	-102 dBm @ 10-5 BER
Power Requirements	12–18 V DC @ 150 mA, supplied by externalpower supply (tip positive)
Audio LED	Red: 2 dB below clip;Amber: 12 dB below clip;Green: 50 dB below clip
Audio Output	Specifications
Configuration	Impedance balanced
Audio Output Level (1 kHz tone)	XLR connector: –2.5 dBV (into 3 kΩ load);6.35 mm (1/4”) connector: +10 dBV (into 10 kΩ
Impedance	XLR: 50 Ω;6.35 mm (1/4”): 50 Ω
Pin Assignments	XLR: 1=ground, 2=hot, 3=cold;6.35 mm (1/4”) TRS: Tip=audio, Ring=no audio,Sleeve=ground
Dimensions	181 mm X 40 mm X 104 mm (W x H x D)
Weight	0.63 lbs (289 g) (10.2 oz.)
Audio Input Level	+5 dBV maximum at -10 dB gain position; –5 dBV maximum at 0 dB gain position
Gain Adjustment Range	10 dB
RF Output Power	10 mW
Housing	Molded PC/ABS handle and battery cup
Power Requirements	2 “AA” size alkaline or rechargeable batteries
Battery Life	Up to 9 hours
Dimensions	10 X 2 in. (254 mm X 51 mm dia.)
Weight	0.769 lbs (349 g) (12.3 oz.) (without batteries)
Type	Dynamic (moving coil)
Frequency Response	50–15,000 Hz
Polar Pattern	Cardioid
Output Impedance	EIA rated at 150Ω (300Ω actual)
Sensitivity (at 1 kHz, open circuit voltage)	–54.5 dBV/Pa (1.85 mV)
Polarity	Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector	Three-pin professional audio (XLR), male
Case	Dark gray, enamel-painted, die cast metal;matte-finished, silver colored,spherical steel mesh grille
Weight	0.656 lbs (0.298 kg)
