Shure SLX24/SM58 Handheld Wireless Microphone System (Discontinued)

Shure SLX24/SM58 Handheld Wireless Microphone System (Discontinued)

Name: Shure SLX24/SM58 Handheld Wireless Microphone System (Discontinued)
Brand: Shure
SKU: SHURE-SLX24/SM58
Price: 599 USD
Availability: OutOfStock

Write a Review

Part #:

SLX24/SM58

Model #:

SLX24/SM58

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Shure SLX24/SM58 Handheld Wireless Microphone System offers powerful wireless tools that can be set up quickly and used confidently by installers and working bands. It features include auto frequency scan with transmitter setup, exceptional wireless clarity, and Shure patented Audio Reference Companding.

Description

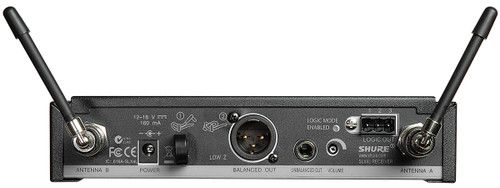

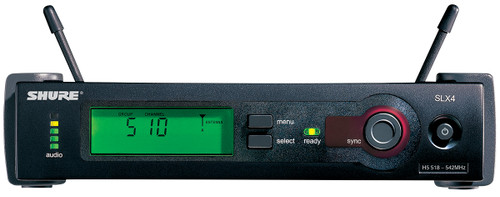

The SLX4 receiver brings unprecedented ease of use to wireless with Automatic Frequency Selection and Automatic Transmitter Setup. With included rack hardware and detachable antennas, it is ready for immediate installation right out of the box.

SLX Wireless Systems feature a wide variety of industry-standard handheld vocal microphones. SLX Wireless Handheld Transmitters includes timed backlit LCD display, frequency and power lockout, and "Mute" functionality. The transmitter design allows for interchangeable microphone cartridges. Options include the BETA87A, BETA87C, BETA58A, SM86, and the legendary SM58.

The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech.

Features

SLX4 Diversity Receiver Features:

Automatic Frequency Selection
Automatic Transmitter Setup
960 Selectable frequencies across 24 MHz bandwidth
Detachable 1/4 wave antennas
Microprocessor-controlled diversity
RF presence LED
5-segment audio meter
Multi-function, backlit LCD
Low battery indicator
Frequency and power lockout
Rugged metal chassis
Volume control on rear of unit
1/2 rack design
Furnished rack hardware
Non-slip bumpers for use out of rack
XLR and 1/4" outputs

SLX2/SM58 Handheld Transmitter Features:

Automatic Transmitter Setup
Backlit LCD with timeout feature
Frequency and power lockout
3-segment battery fuel gauge
2 AA batteries (included) provide 8 hours of continuous use
470 - 782 MHz operating range
Frequency response tailored for vocals, with brightened midrange and bass roll off
Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
Pneumatic shock-mount system cuts down handling noise
Effective, built-in spherical wind and pop filter
Supplied with break-resistant stand adapter which rotates 180 degrees
Legendary Shure quality, ruggedness and reliability
Cardioid (unidirectional) dynamic
Frequency response: 50 to 15,000 Hz
Replacement cartridge: R59

Specifications

SLX4 Receiver
Housing	Galvanized steel
Audio Output Level	XLR connector (into 600 Ω load):–13 dBV; ¼" connector (into 3000 Ω load):–2 dBV
Sensitivity	–105 dBm for 12 dB SINAD, typical
Image Rejection	>70 dB, typical
Power Requirements	12–18 V DC at 150 mA, supplied by external power supply
Dimensions	1.65" H x 7.76" W x 5.28" D (42 mm x 197 mm x 134 mm)
Weight	1.80 lbs (816 g)
SM58S Vocal Microphone
Type	Dynamic (moving coil)
Frequency Response	50 to 15,000 Hz
Polar Pattern	Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity (at 1,000 Hz Open Circuit Voltage)	-54.5 dBV/Pa (1.85 mV) 1 Pa = 94 dB SPL
Impedance	Rated impedance is 150Ω (300Ω actual) for connection to microphone inputs rated low impeda
Polarity	Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector	Three-pin professional audio connector (male XLR type)
Case	Dark gray, enamel-painted, die cast metal; matte-finished, silver, spherical steel mesh grille
Overall Dimensions (H x W x D)	6.375" (162 mm) x 2" (51 mm) x 0.906" (23 mm)
Net Weight	0.65 lbs (298 g)
SLX2 Handheld Transmitter
Housing	Molded ABS handle and battery cup
Audio Input Level	-8 dBV maximum at 0 dB position
Operating range	300 ft (100 m)
Power Requirements	2 "AA" size alkaline or rechargeable batteries
Battery Life (alkaline)	>8 hours
Dimensions	10" x 2" in Diameter (254 mm x 51 mm in Diameter)
Weight	0.64 lbs (290 g) (without batteries)
