Shure GLXD14/SM35 Headworn Wireless System

Revolutionary Shure GLX-D® Digital Wireless Systems combine leading-edge LINKFREQ Automatic Frequency Management technology with best-in-class intelligent lithium-ion battery rechargeability to define the new standard for seamless operation and digital audio clarity.

The SM35 headset condenser microphone from Shure gives multi-instrumentalists the freedom to express themselves without having to sacrifice the sound quality found in traditional microphones. A tight, unidirectional (cardioid) pickup pattern provides excellent rejection of off-axis sound sources to prevent feedback and signal bleed for superior performance on stage. Standard TA4F (TQG) connectivity seamlessly integrates into any Shure wireless bodypack system, and its availability in a number of bundled systems makes it appropriate for any stage, ranging from small clubs to large installations and arena tours. The SM35-XLR (optional) includes an inline RPM626 preamp for use in standard wired (XLR) applications.

Features

Features

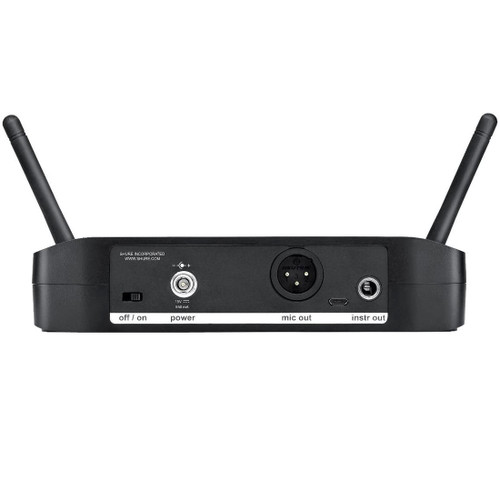

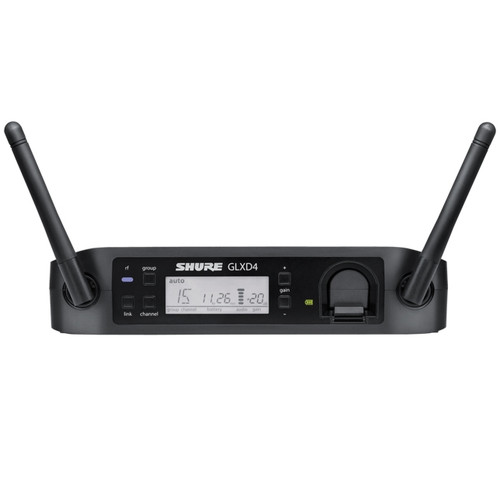

GLXD4 Receiver:

High-resolution LCD screen status display
Real-time transmitter battery status displayed in hours and minutes (accurate within + / - 15 minutes)
Remote adjustable transmitter gain control
Two-color charge indicator LED

Green: Charged
Flashing Green: 90% charged
Red: Charging

XLR and ¼" output connectors
Lightweight, durable construction

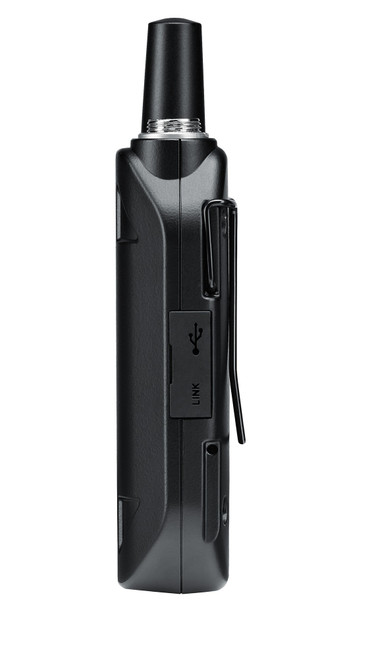

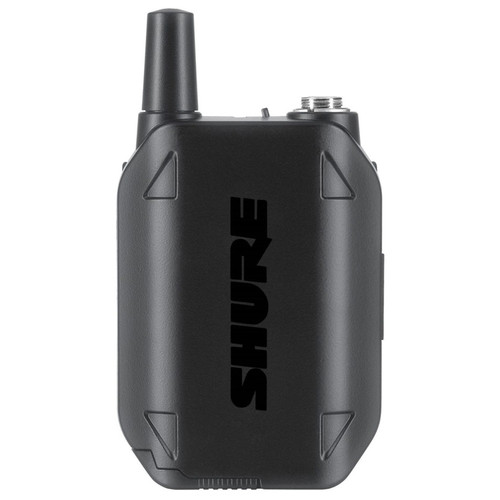

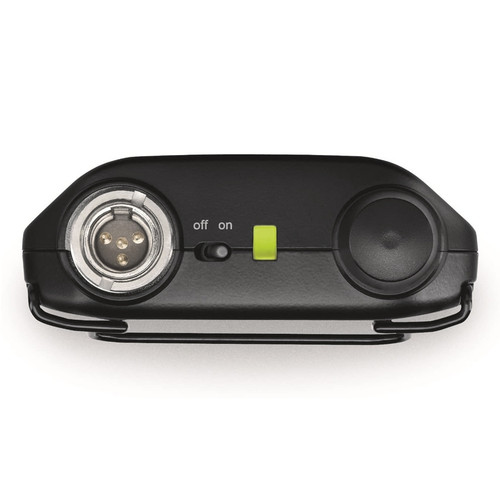

GLXD1 Bodypack Transmitter:

Automatically links with GLX-D wireless receivers for seamless frequency changing
Sophisticated design with rugged metal construction
Easily accessible on / off switch
Locking TQG connection for use with Shure lavalier, headset, earset, and instrument microphones and guitar cables

SM35 Headset Microphone:

Wireframe headset fits securely and comfortably for active performers and multi-instrumentalists
Tight, unidirectional cardioid polar pattern rejects signal bleed and feedback for use on loud stages and behind floor monitors
Flexible gooseneck design allows for optimized placement that further improves source isolation
Lightweight and low-profile form enables comfortable, long-wearing use
TA4F (TQG) connector is compatible with any Shure wireless bodypack
Locking snap-fit windscreens tame plosives, breath, and wind noise for clean and intelligible sound
Tailored frequency response refined for clear, crisp vocal reproduction

Specification

GLXD4 Wireless Receiver
Operating Range	200 ft (60 m) line of sight
Frequency Band	ISM 2400 – 2483.5 MHz
Audio Range	20 – 20,000 Hz
Transmitter RF Output Power	10 mW E.I.R.P. maximum
Audio Output Connector	XLR and 1/4" (6.3 mm) unbalanced
Maximum Output Level	O dBV (XLR/line), +8.5 dBV (1/4")
Battery Life	Up to 16 hours
Dynamic Range	120 dB A-weighted
System Distortion	0.2% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range	-18°C (0°F) to +57°C (135°F)
Power Requirements	14–18 V DC at 550 mA, supplied by external power supply
GLXD1 Bodypack Transmitter
Operating Range	200 ft (60 m) line of sight
Frequency Band	ISM 2400 – 2483.5 MHz
Audio Range	20 – 20,000 Hz
Transmitter RF Output Power	10 mW E.I.R.P. maximum
Audio Output Connector	XLR and 1/4" (6.3 mm) unbalanced
Maximum Output Level	O dBV (XLR/line), +8.5 dBV (1/4")
Battery Life	Up to 16 hours
Dynamic Range	120 dB A-weighted
System Distortion	0.2% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range	-18°C (0°F) to +57°C (135°F)
Power Requirements	3.7 V custom rechargeable lithium-ion battery
SM35 Headset Condenser Microphone
Type	Electret Condenser
Frequency Response	40 Hz to 20,000 Hz
Polar Pattern	Unidirectional (Cardioid)
Output Impedance	2400 Ω
Output Level	-59.0 dBV/Pa
Signal to Noise Ratio	55 dB
Maximum SPL	153.0 dB
Dynamic Range (max. SPL to A-weighted noise level)	114.0 dB
Output Noise	39 dB
Cable	1.1 m (45 in.)
Connector	TA4F
Dimensions (H x W x D)
Receiver	1.6" (40 mm) x 7.2" (183 mm) x 4.6" (117 mm)
Transmitter (Without Antenna)	3.56" (90 mm) x 2.54" (65 mm) x 0.90" (23 mm)
Weight
Receiver (Without Batteries)	10.1 oz (286 g)
Headset	2.53 oz (72 g)
