Shure GLXD14/PGA31 Headworn Wireless System (Discontinued)

Part #:
GLXD14/PGA31-Z2
Model #:
GLXD14/PGA31
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Shure GLXD14/PGA31 Headworn Wireless System features intelligent technology and convenient rechargeable power options for musicians who run their own sound. It includes the GLXD4 Wireless Receiver and features the PGA31 Headset Microphone.

Description

The revolutionary Shure GLX-D Digital Wireless Systems combine leading-edge LINKFREQ Automatic Frequency Management (2.4 GHz frequency band) technology with best-in-class intelligent lithium-ion battery rechargeability to define the new standard for seamless operation and digital audio clarity.

The GLXD4 single-channel wireless receiver features revolutionary LINKFREQ Automatic Frequency Management and battery rechargeability. An integrated battery charge port can charge a spare Shure lithium-ion battery while the system is in use. Allows operation of up to 4 compatible systems in a typical setting, and up to 8 maximum under ideal conditions. (Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.)

GLXD1 features an ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. It offers up to 16 hours of continuous use with Shure lithium-ion rechargeable batteries. (Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.)

The PGA31 is an affordable wireless cardioid condenser headset microphone that delivers reliable sound quality for speech and live vocal performance applications. Designed for long-wearing comfort, the PGA31 offers a secure fit for hands-free operation in any situation. Its unidirectional cardioid polar pattern provides excellent off-axis rejection for higher gain-before-feedback when using a stage monitor.

Features

  • Shure GLXD14/PGA31 Headworn Wireless System:
  • Globally unlicensed 2.4 GHz frequency band allows operation of up to 8 compatible systems
  • Up to 200 ft (60 m) operating range (line of sight)
  • Rugged and reliable Shure construction
  • Legendary Shure microphones options featuring an integrated microphone capsule design

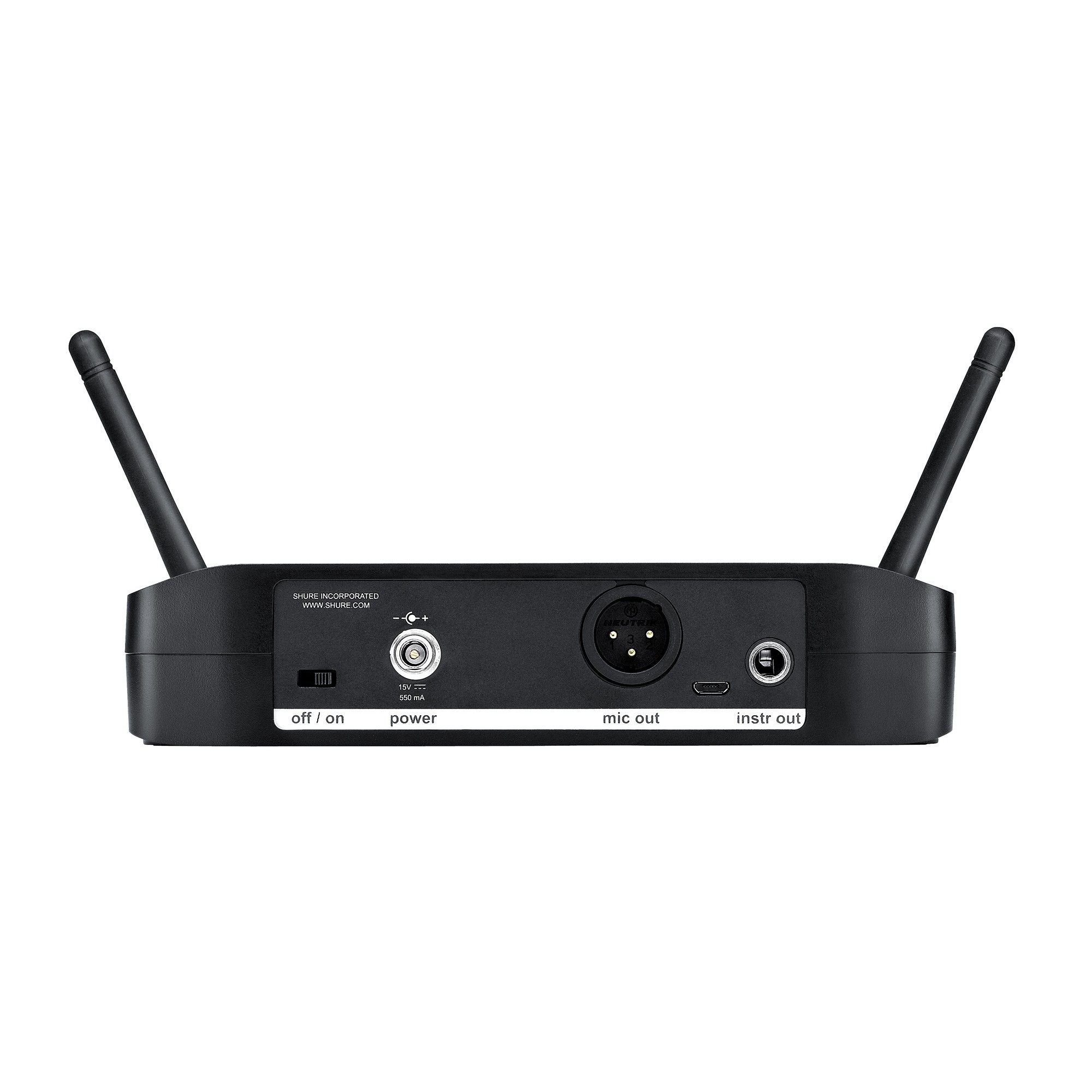

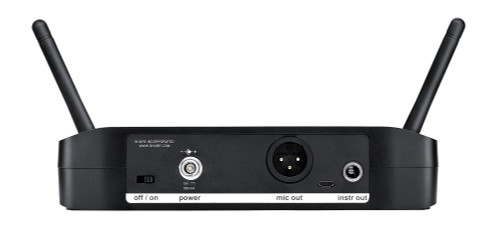

  • GLXD4 Wireless Receiver:
  • High-resolution LCD screen status display
  • Real-time transmitter battery status displayed in hours and minutes (accurate within + / - 15 minutes)
  • Remote adjustable transmitter gain control
  • Two-color charge indicator LED
  • XLR and 1/4" output connectors
  • Lightweight, durable construction

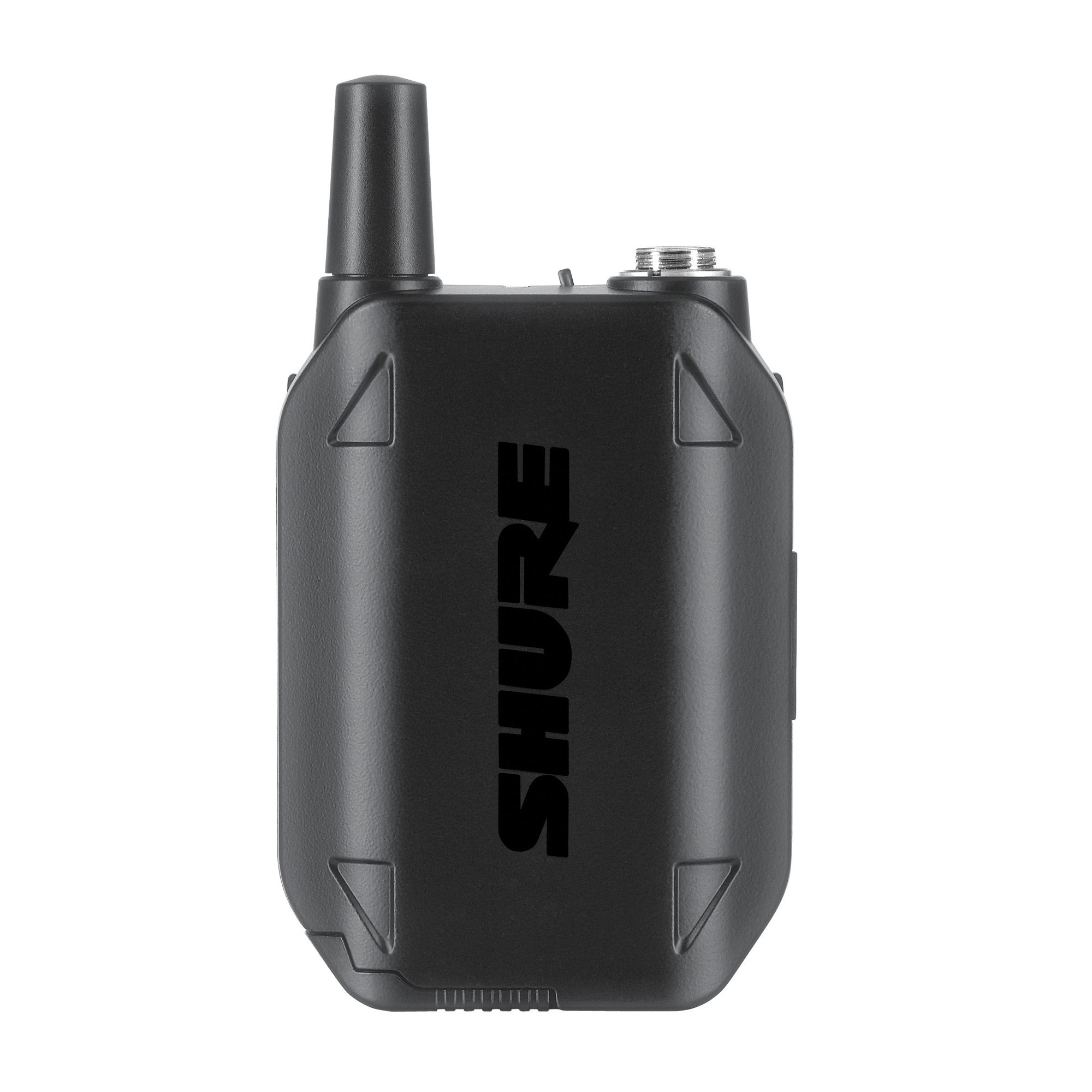

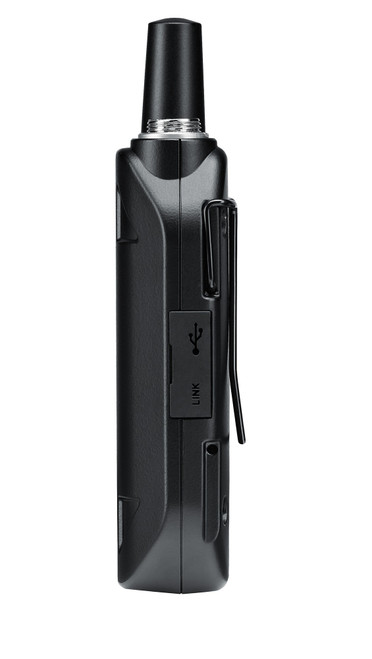

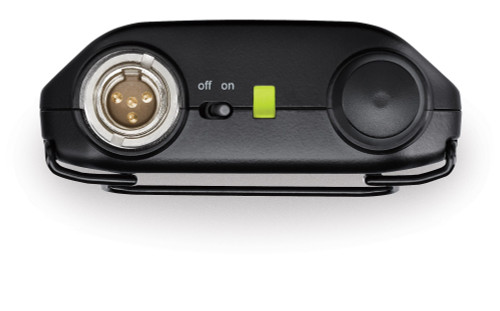

  • GLXD1 Bodypack Transmitter:
  • Automatically links with GLX-D wireless receivers for seamless frequency changing
  • Sophisticated design with rugged metal construction
  • Easily accessible on / off switch
  • Locking TQG connection for use with Shure lavalier, headset, earset, and instrument microphones and guitar cables

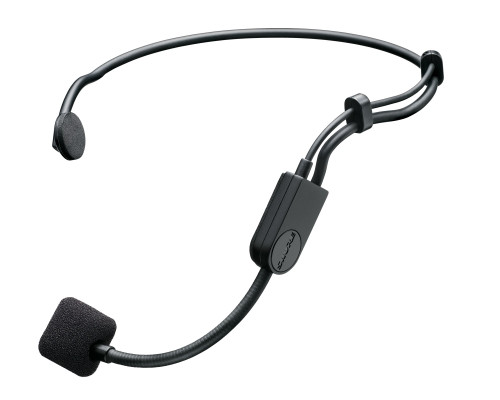

  • Shure PGA31 Headset Microphone:
  • Wireframe headset fits securely for active speakers and vocal performers
  • Permanently charged electret condenser cartridge delivers detailed, crisp vocals
  • Unidirectional cardioid polar pattern rejects unwanted noise for improved sound quality and higher gain-before-feedback
  • Flexible gooseneck design and discrete adjustment capabilities optimize microphone positioning for further source isolation
  • TA4F (TQG) connector seamlessly integrates with Shure wireless bodypacks
  • Included windscreen tames plosives for clean and intelligible sound reproduction
  • Tailored frequency response for great sound on vocals
  • Available with BLX, GLX-D, and PGX Digital wireless systems, renowned for ease-of-use and reliable performance
  • Legendary Shure precision engineering for durability and performance

Specifications

Operating Range 200 ft (60 m) line of sight
Frequency Band ISM 2400 – 2483.5 MHz
Audio Range 20 – 20,000 Hz
Transmitter RF Output Power 10 mW E.I.R.P. maximum
Audio Output Connector XLR and 1/4" (6.3 mm) unbalanced
Maximum Output Level O dBV (XLR/line), +8.5 dBV (1/4")
Battery Life Up to 16 hours
Dynamic Range 120 dB A-weighted
System Distortion 0.2% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range -18°C (0°F) to +57°C (135°F)
Power Requirements 14–18 V DC at 550 mA, supplied by external power supply
Operating Range 200 ft (60 m) line of sight
Frequency Band ISM 2400 – 2483.5 MHz
Audio Range 20 – 20,000 Hz
Transmitter RF Output Power 10 mW E.I.R.P. maximum
Audio Output Connector XLR and 1/4" (6.3 mm) unbalanced
Maximum Output Level O dBV (XLR/line), +8.5 dBV (1/4")
Battery Life Up to 16 hours
Dynamic Range 120 dB A-weighted
System Distortion 0.2% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range -18°C (0°F) to +57°C (135°F)
Power Requirements 3.7 V custom rechargeable lithium-ion battery
Type Condenser, electret bias
Frequency Response 60 Hz to 18,000 Hz (see Frequency Chart)
Polar Pattern Cardioid (unidirectional)
Output Impedance 1200 Ω @1kHz
Output Level -52 dBV/Pa (2.5 mV)
Signal to Noise Ratio 61 dB, 1 kHz at 1 Pa
Maximum SPL 125 dB
Dynamic Range (max. SPL to A-weighted noise level) 92 dB
Output Noise 33 dB (typical, A-Weighted)
Recommended Operating Voltage +5VDC, 10V max (pin 2 to pin 1)
Cable 50" (1.27 m) two-conductor shielded
Connector Mini TA4F
Receiver 1.6" (40 mm) x 7.2" (183 mm) x 4.6" (117 mm)
Transmitter (Without Antenna) 3.56" (90 mm) x 2.54" (65 mm) x 0.90" (23 mm)
Receiver (Without Batteries) 10.1 oz (286 g)
Headset 1.59 oz (45 g)
