The Shure GLXD14 Bodypack Wireless System features intelligent technology and convenient rechargeable power options for musicians who run their own sound. It includes the GLXD4 Wireless Receiver and the WA302 Instrument Cable.

Description

The revolutionary Shure GLX-D Digital Wireless Systems combine leading-edge LINKFREQ Automatic Frequency Management (2.4 GHz frequency band) technology with best-in-class intelligent lithium-ion battery rechargeability to define the new standard for seamless operation and digital audio clarity. They are available in a variety of configurations.

The GLXD4 single-channel wireless receiver features revolutionary LINKFREQ Automatic Frequency Management and battery rechargeability. An integrated battery charge port can charge a spare Shure lithium-ion battery while the system is in use. Allows operation of up to 4 compatible systems in a typical setting, and up to 8 maximum under ideal conditions. (Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.)

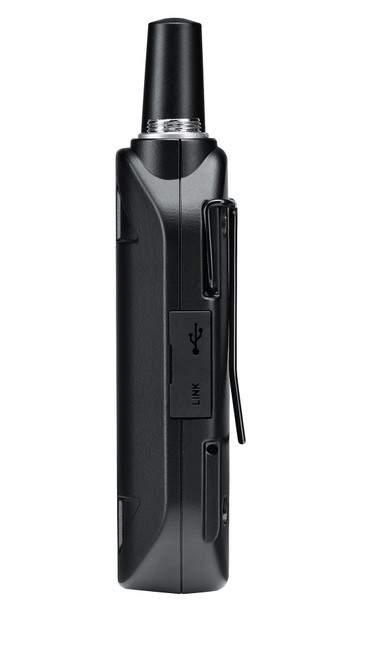

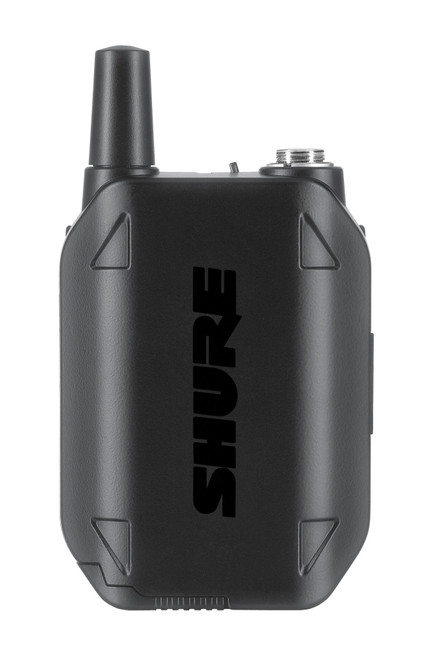

GLXD1 features an ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. It offers up to 16 hours of continuous use with Shure lithium-ion rechargeable batteries. (Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.)

The WA302 Instrument Cable connects the body-pack transmitter to a guitar or other instrument. It Features a 2.5 ft (0.75 m) length with 1/4" plug and 4-pin mini connector (TA4F) (supplied with instrument systems).

Features

  • Shure GLXD14 Bodypack Wireless System Features:
  • Globally unlicensed 2.4 GHz frequency band allows operation of up to 8 compatible systems
  • Up to 200 ft (60 m) operating range (line of sight)Rugged and reliable Shure construction
  • Legendary Shure microphones options featuring an integrated microphone capsule design
  • GLXD4 Wireless Receiver Features:
  • High-resolution LCD screen status display
  • Real-time transmitter battery status displayed in hours and minutes (accurate within + / - 15 minutes)
  • Remote adjustable transmitter gain control
  • Two-color charge indicator LED

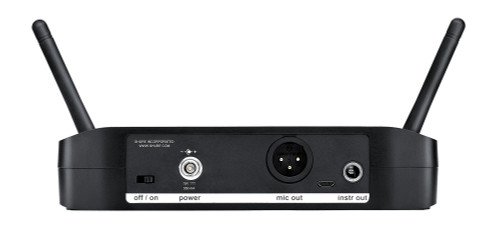

  • XLR and 1/4" output connectors
  • Lightweight, durable construction
  • GLXD1 Bodypack Transmitter Features:
  • Automatically links with GLX-D wireless receivers for seamless frequency changing
  • Sophisticated design with rugged metal construction
  • Easily accessible on / off switch
  • Locking TQG connection for use with Shure lavalier, headset, earset, and instrument microphones and guitar cables
  • WA302 Instrument Cable Features:
  • Features a 2.5 ft (0.75 m), length with 1/4" plug
  • 4-pin mini connector (TA4F) (supplied with instrument systems)

Specifications

Operating Range 200 ft (60 m) line of sight
Frequency Band ISM 2400 – 2483.5 MHz
Audio Range 20 – 20,000 Hz
Transmitter RF Output Power 10 mW E.I.R.P. maximum
Audio Output Connector XLR and 1/4" (6.3 mm) unbalanced
Maximum Output Level O dBV (XLR/line), +8.5 dBV (1/4")
Battery Life Up to 16 hours
Dynamic Range 120 dB A-weighted
System Distortion 0.2% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range -18°C (0°F) to +57°C (135°F)
Power Requirements 14–18 V DC at 550 mA, supplied by external power supply
Operating Range 200 ft (60 m) line of sight
Frequency Band ISM 2400 – 2483.5 MHz
Audio Range 20 – 20,000 Hz
Transmitter RF Output Power 10 mW E.I.R.P. maximum
Audio Output Connector XLR and 1/4" (6.3 mm) unbalanced
Maximum Output Level O dBV (XLR/line), +8.5 dBV (1/4")
Battery Life Up to 16 hours
Dynamic Range 120 dB A-weighted
System Distortion 0.2% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range -18°C (0°F) to +57°C (135°F)
Power Requirements 3.7 V custom rechargeable lithium-ion battery
Receiver 1.6" (40 mm) x 7.2" (183 mm) x 4.6" (117 mm)
Transmitter (Without Antenna) 3.56" (90 mm) x 2.54" (65 mm) x 0.90" (23 mm)
Receiver (Without Batteries) 10.1 oz (286 g)

System Includes

  • (1) GLXD1 Bodypack Transmitter
  • (1) GLXD4 Wireless Receiver
  • (1) WA302 Instrument Cable
