Shure GLXD16 Guitar Pedal Wireless System (Discontinued)

Part # GLXD16-Z2
Model # GLXD16

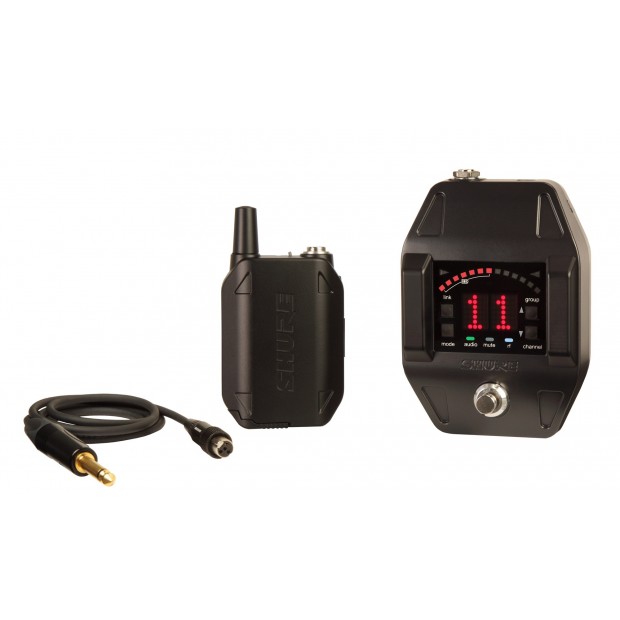

The Shure GLXD16 Guitar Pedal Wireless System features intelligent technology and smart power options that put reliable, professional caliber digital sound in the hands of performers everywhere. It includes the first Shure guitar pedal, the GLXD6 and features the WA305 Instrument Cable.

Description

Details

The revolutionary Shure GLX-D Digital Wireless Systems combine leading-edge LINKFREQ Automatic Frequency Management (2.4 GHz frequency band) technology with best-in-class intelligent lithium-ion battery rechargeability to define the new standard for seamless operation and digital audio clarity.

The Shure GLXD6 is a wireless guitar pedal tuner & receiver. It's live audio at a whole new level, Shure GLX-D Wireless Systems feature intelligent technology and smart power options that put reliable, professional caliber digital sound in the hands of performers everywhere.

GLXD1 features an ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. It offers up to 16 hours of continuous use with Shure lithium-ion rechargeable batteries. (Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.)

The first Shure guitar pedal receiver, GLXD6 provides easy mounting on / powering from pedal boards. A built-in chromatic instrument tuner has both strobe and needle tuning views. The foot switch enables shifting between wireless display and tuner mode with the option to mute or pass the audio signal while tuning. (Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.)

The WA305 is a Premium 1/4"-to-TA4F guitar cable with locking thread connects the bodypack transmitter to a guitar or bass.
Features

Features

  • Shure GLXD16 Bodypack Wireless System:
  • Globally unlicensed 2.4 GHz frequency band allows operation of up to 8 compatible systems
  • Up to 200 ft (60 m) operating range (line of sight)Rugged and reliable Shure construction
  • GLXD6 Guitar Pedal Receiver with Integrated Tuner:
  • Guitar pedal design for flexible use and foot control
  • Integrated tuner (strobe and needle)
  • LinkFreq Automatic Frequency Management
  • Intelligent frequency management quickly identifies the best open frequencies
  • Continuous interference monitoring avoids signal interruption by automatically switching frequencies
  • Operate up to 8 compatible systems in 2.4 GHz frequency band
  • Rugged metal construction

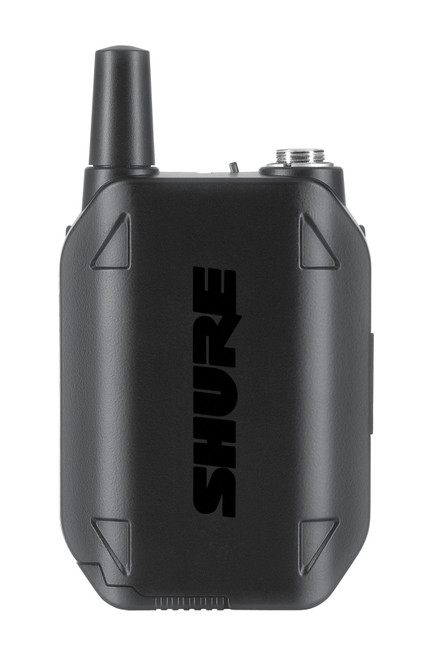

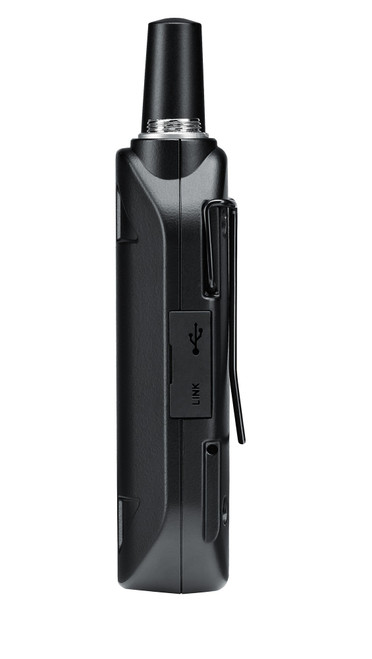

  • GLXD1 Bodypack Transmitter:
  • Automatically links with GLX-D wireless receivers for seamless frequency changing
  • Sophisticated design with rugged metal construction
  • Easily accessible on / off switch
  • Locking TQG connection for use with Shure lavalier, headset, earset, and instrument microphones and guitar cables
  • WA305 Instrument Cable:
  • Gold-plated Neutrik 1/4" phone plug connector
  • Locking thread



Specification
GLXD6 Wireless Guitar Pedal Tuner & Receiver
Operating Range200 ft (60 m) line of sight
Frequency BandISM 2400 – 2483.5 MHz
Audio Range20 – 20,000 Hz
Transmitter RF Output Power10 mW E.I.R.P. maximum
Audio Output ConnectorXLR and 1/4" (6.3 mm) unbalanced
Maximum Output LevelO dBV (XLR/line), +8.5 dBV (1/4")
Battery LifeUp to 16 hours
Dynamic Range120 dB A-weighted
System Distortion0.2% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range-18°C (0°F) to +57°C (135°F)
Power Requirements9–15 V DC at 250 mA, supplied by external power supply
GLXD1 Bodypack Transmitter
Operating Range200 ft (60 m) line of sight
Frequency BandISM 2400 – 2483.5 MHz
Audio Range20 – 20,000 Hz
Transmitter RF Output Power10 mW E.I.R.P. maximum
Audio Output ConnectorXLR and 1/4" (6.3 mm) unbalanced
Maximum Output LevelO dBV (XLR/line), +8.5 dBV (1/4")
Battery LifeUp to 16 hours
Dynamic Range120 dB A-weighted
System Distortion0.2% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range-18°C (0°F) to +57°C (135°F)
Power Requirements3.7 V custom rechargeable lithium-ion battery
Dimensions (H x W x D)
Receiver1.8" (46 mm) x 3.7" (95 mm) x 5.2" (133 mm)
Transmitter (Without Antenna)3.56" (90 mm) x 2.54" (65 mm) x 0.90" (23 mm)
Weight
Receiver17.8 oz (504 g)
System Includes

System Includes

  • (1) GLXD6 Guitar Pedal Receiver with Integrated Tuner
  • (1) GLXD1 Bodypack Transmitter
  • (1) WA305 Instrument Cable
  • (1) Rechargeable Battery
  • (1) Power Supply
  • (1) Wall Battery Charger
  • (1) User Guide
