- Description
Details
System Includes:
(1) GLXD2 Handheld Transmitter
(1) GLXD4 Wireless Receiver
(1) BETA 58A Vocal Microphone
The Shure GLX-D Digital Wireless Systems combine leading-edge LINKFREQ Automatic Frequency Management technology with best-in-class intelligent lithium-ion battery rechargeability to define the new standard for seamless operation and digital audio clarity.

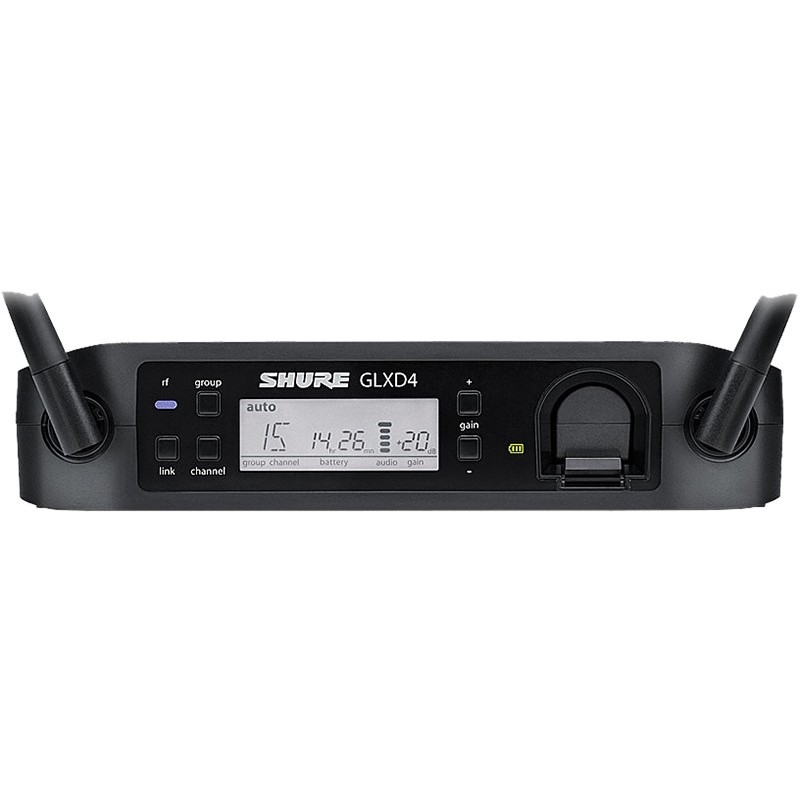

The GLXD4 single-channel wireless receiver features revolutionary LINKFREQ Automatic Frequency Management and battery rechargeability. An integrated battery charge port can charge a spare Shure lithium-ion battery while the system is in use.
Up to 8 compatible systems can operate in the globally unlicensed 2.4 GHz frequency band. For use with GLX-D Digital Wireless Systems.

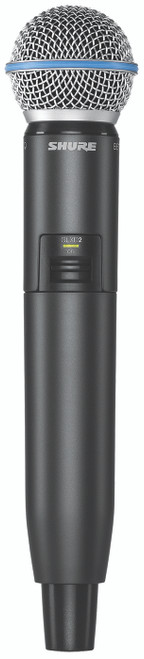

Compatible with Shure microphones trusted by musicians for decades, including the legendary SM58®, the GLXD2 transmits wireless audio with digital clarity and rock-solid reliability. For use with GLX-D Digital Wireless Systems.
The Shure Beta 58A is a high-output supercardioid dynamic vocal microphone designed for professional sound reinforcement and project studio recording. It has become a leading choice among vocalists and touring professionals worldwide.
The Beta 58A maintains a true supercardioid pattern throughout its frequency range. The Beta 58A has a shaped frequency response that is ideal for close-up vocals. The superb performance of this microphone is not affected by rough handling because of its rugged construction, proven shock mount system, and hardened steel mesh grille.- Features
Features
- Shure GLXD24/BETA58A Handheld Wireless System Features:
- Globally unlicensed 2.4 GHz frequency band allows operation of up to 8 compatible systems.
- Up to 200 feet (60 m) operating range (line of sight)Rugged and reliable Shure construction.
- Legendary Shure microphones options featuring an integrated microphone capsule design.
- GLXD4 Wireless Receiver Features:
- High-resolution LCD screen status display.
- Real-time transmitter battery status displayed in hours and minutes (accurate within + / - 15 minutes).
- Remote adjustable transmitter gain control.
- Two-color charge indicator LED.
- Green: Charged.
- Flashing Green: 90% charged.
- Red: Charging.

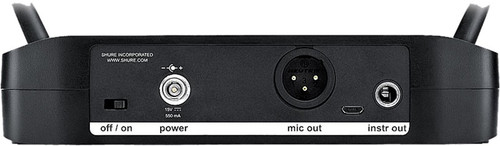

- XLR and ¼" output connectors.
- Lightweight, durable construction.
- GLXD2 Handheld Transmitter Features:
- Integrated microphone capsule design, featuring the legendary SM58, Beta 58A®, SM86, or Beta 87A.
- Automatically links with GLX-D wireless receivers for seamless frequency changing.
- BETA 58A Vocal Microphone Features:
- Frequency response tailored for vocals, with brightened midrange and bass rolloff to control proximity effect.
- Uniform supercardioid pattern for high gain before feedback and superior rejection of off–axis sound.
- Neodymium magnet for high signal–to–noise output.
- Hardened steel mesh grille that resists wear and abuse.
- Advanced pneumatic shock mount system that minimizes transmission of mechanical noise and vibration.
- Minimally effected by varying load impedance.
- Legendary Shure quality and reliability.
- Specification
Model GLXD24/BETA58A Product Type Handheld Wireless System GLXD2 Handheld Transmitter Specifications Operating Range 200 ft (60 m) line of sight Frequency Band ISM 2400 – 2483.5 MHz Audio Range 20 – 20,000 Hz Transmitter RF Output Power 10 mW E.I.R.P. maximum Audio Output Connector XLR and 1/4" (6.3 mm) unbalanced Maximum Output Level O dBV (XLR/line), +8.5 dBV (1/4") Battery Life Up to 16 hours Dynamic Range 120 dB A-weighted System Distortion 0.2% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone) Operating Temperature Range -18°C (0°F) to +57°C (135°F) Power Requirements 3.7 V custom rechargeable lithium-ion battery GLXD4 Wireless Receiver Specifications Operating Range 200 ft (60 m) line of sight Frequency Band ISM 2400 – 2483.5 MHz Audio Range 20 – 20,000 Hz Transmitter RF Output Power 10 mW E.I.R.P. maximum Audio Output Connector XLR and 1/4" (6.3 mm) unbalanced Maximum Output Level O dBV (XLR/line), +8.5 dBV (1/4") Battery Life Up to 16 hours Dynamic Range 120 dB A-weighted System Distortion 0.2% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone) Operating Temperature Range -18°C (0°F) to +57°C (135°F) Power Requirements 14–18 V DC at 550 mA, supplied by external power supply BETA58A Vocal Microphone Specifications Type Dynamic (moving coil) Frequency Response 50 to 16,000 Hz Polar Pattern Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency Output Level (at 1,000 Hz) Open Circuit Voltage: -51.5 dBV/Pa (2.6 mV) Impedance Rated impedance is 150 Ω (290 Ω actual) for connection to microphone inputs rated low Z Case Silver blue enamel-painted die cast metal with hardened, matte-finished, spherical steel mesh grille Adjustable, Stand Adapter Slip-in mic mounting, unbreakable, adjustable through 180 degrees with standard 5/8"-27 thread Net Weight 0.59 lbs (278 Grams) - Reviews
