Shure ULXS24/58 Handheld Wireless System (Discontinued)

Shure ULXS24/58 Handheld Wireless System (Discontinued)

Name: Shure ULXS24/58 Handheld Wireless System (Discontinued)
Brand: Shure
SKU: SHURE-ULXS24/58-G3
Price: 689 USD
Availability: OutOfStock

Write a Review

Part #:

ULXS24/58-G3

Model #:

ULXS24/58

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Shure ULXS24/58 is a handheld wireless system. ULX Standard UHF wireless (ULX-S) represents a breakthrough in performance and price for both working musicians and professional sound installers.

Description

The Shure ULX Standard receiver offers an exceptional value in both performance and price, for both working musicians and sound installers. The feature set of the versatile ULXS4 receiver offers a direct path to full, clear audio signals, unencumbered and unattached.

A choice of legendary Shure vocal microphones is available for use with the ULX Standard series of handheld wireless transmitters. Choose from SM and BETA Series microphones to ride the clear channel transmission and flexibility of ULX handheld transmitters.

The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.

Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoors.

Features

ULXS4 Wireless Diversity Receiver Features:
Automatic Frequency Selection with group scan function.
Up to 1440 selectable frequencies.
5-segment transmitted audio signal strength meter.
RF indicator.
3-segment transmitter battery fuel gauge.
Advanced multi-function LCD displays group and channel.
Mic/Line switch.
Detachable 1/4-wave antenna.
XLR and 1/4-inch output.
Rugged plastic chassis.
1/2 rack design.

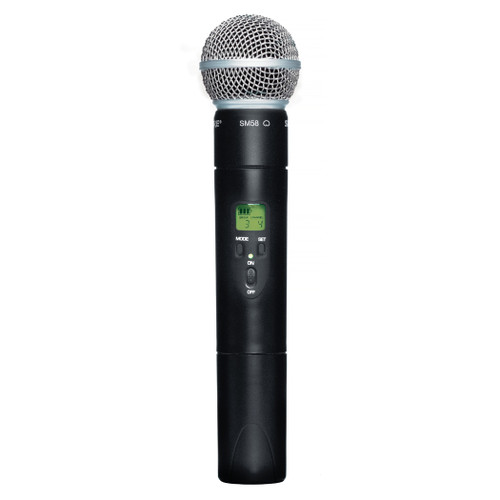

ULX2 Handheld Transmitter Features:
8-9 Hour Battery Life.
Power: On/Off Switch, Battery.
LED-Green When ON, Red When Battery Low.
Three-segment Battery Power Icon.
PEAK Icon-Appears When Audio Signal Overloads.
Group/Channel Displays.
SET Button for Saving Settings.
Adjustable Audio Gain Control.
Input Attenuation Switch-Select 0dB for Voice/Low Output; 20dB for High Output.
4-pin Mini Connector.
Battery Cover Unscrews to Expose Battery and Gain Control.
9V Battery Included.
Interchangeable cartidges: SM58, SM86, SM87A, Beta58, Beta87C.
SM58 Vocal Microphone Features:
Frequency response tailored for vocals, with brightened midrange and bass rolloff.
Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise.
Pneumatic shock-mount system cuts down handling noise.
Effective, built-in spherical wind and pop filter.
Supplied with break-resistant stand adapter which rotates 180 degrees.
Legendary Shure quality, ruggedness and reliability.
Cardioid (unidirectional) dynamic.
Frequency response: 50 to 15,000 Hz.
Replacement cartridge: R59.

Specifications

RF Carrier Frequency Range	470.000 to 865.000 MHz
Effective Range	100 m (300 ft.) under optimal conditions
Audio Frequency Response	25 to 15,000 Hz, +/- 2 dB
Receiver Audio Output Level	XLR connector (into 600 ohm load): +3.9 dBV (line), -17 dBV (mic)
Receiver Audio Output Level	1/4 inch connector (into 3000 ohm load): -2 dBV
Modulation	+/- 38 kHz deviation compressor-expander system with pre- and de-emphasis.
Dynamic Range	>100 dB, A-weighted
RF Sensitivity	1.26 microVolt for 12 dB SINAD (typical)
Image Rejection	80 dB typical
Spurious Rejection	75 dB typical
Ultimate Quieting	>105 dB, A-weighted
System Distortion	0.3% total harmonic distortion, typical
Power Requirements (ULXS4)	14 - 18 Vdc (negative ground), 550 mA
Battery Life	8 to 9 hours (with 9V alkaline battery)
Operating Temperature Range	-20 degrees to 49 degrees C (-4 degrees to 120 degrees F)
Overall Dimensions	43 mm H x 214 mm W x 163 mm D (1.72 in. x 8.56 in. x 6.52 in.)
Net Weight	2 lbs (1049 g)
Transmitter Gain Adjustment Range(ULX2)	25 dB
RF Power Output(ULX2)	30 mW maximum
Power Requirements(ULX2)	9V alkaline battery; 8.4 V Nicad optional
SM58	Specifications
Type	Dynamic (moving coil)
Frequency Response	50 to 15,000 Hz
Polar Pattern	Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity (at 1,000 Hz Open Circuit Voltage)	-54.5 dBV/Pa (1.85 mV),1 Pa = 94 dB SPL
Impedance	Rated impedance is 150 ohms(300 ohms actual) for connection to microphone inputs rated low impedance
Polarity	Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector	Three-pin professional audio connector (male XLR type)
Case	Dark gray, enamel-painted, die cast metal; matte-finished, silver, spherical steel mesh grille
Overall DimensionsULX2/SM58	228.6 L x 51 mm Dia. (9 x 2 in)
Net Weight ULX2/SM58	0.63 lbs (289 g)without battery
