Shure MXW1X Hybrid Bodypack Transmitter with Integrated Omnidirectional Microphone

Part #:
MXW1X/O=-Z10
Model #:
MXW1X
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Shure MXW1X hybrid bodypack transmitter features an integrated omnidirectional microphone plus a TA4F input for lavalier or head-worn mics. With up to 17 hours of battery life, programmable mute, and AES-256 encryption, it ensures reliable, hands-free wireless audio for presentations and conferencing.

Description

Shure MXW1X Hybrid Bodypack Transmitter

The MXW1X is designed for professional presenters and conference environments, allowing hands-free operation while capturing clear, full-range speech. It combines an integrated omnidirectional microphone with a TA4F input, giving users the flexibility to connect lavalier or head-worn microphones for optimal audio capture. Compatible with Microflex Wireless neXt systems, the MXW1X delivers reliable, encrypted wireless transmission for meetings, lectures, and live presentations.

With a smart lithium-ion battery pack (included), the transmitter provides up to 17 hours of continuous use and supports rapid recharging. Its adjustable transmit power maintains coverage up to 160 feet (50 meters), and an out-of-range alert ensures users stay within the wireless range. Programmable mute options allow one transmitter or multiple transmitters to be controlled manually or remotely via room control systems, enhancing versatility in complex setups.

The MXW1X also offers advanced features such as an information screen showing battery status and room assignment, a power switch lock to prevent accidental shutdown, AES-256 encryption for secure audio, and an earphone jack for monitoring program audio, translations, or cues. Lightweight and ergonomic, it is ideal for presenters, lecturers, and any professional environment requiring hands-free, high-quality wireless audio.

Features

  • Integrated omnidirectional microphone captures full-range audio without an external mic
  • TA4F input is compatible with most Shure lavalier and head-worn microphones
  • Smart lithium-ion battery provides up to 17 hours of continuous use; quick recharge
  • Programmable mute button: push-to-talk, push-to-mute, or push-on/push-off
  • Remote mute/unmute via room control systems
  • Adjustable transmit power ensures coverage up to 160 ft (50 m)
  • Out-of-range alert for user awareness
  • Always-on AES-256 encryption for secure wireless audio
  • Earphone jack for translation, cueing, or program audio monitoring
  • Power switch can be disabled to prevent accidental shutdown

Specifications

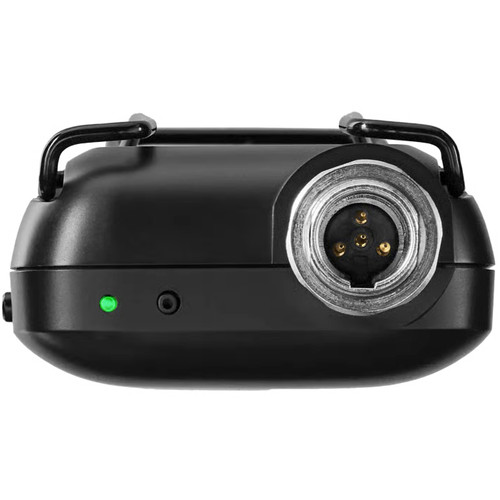

External Mic Input TA4M Connector (4-pin male mini)
Max Input Level -1 dBV
External Mic Frequency Response 27 Hz – 19 kHz (+0.5 dB / 3 dB)
External Mic Dynamic Range 112 dB (A-weighted), 111 dB (unweighted)
External Mic Input Impedance ~30 kΩ @ 1 kHz
External Mic Configuration Unbalanced
External Mic Pinout 1=Ground, 2=5V DC, 3=Audio Input, 4=Active Load
Internal Mic Type Omnidirectional Digital MEMS
Internal Mic Frequency Response 27 Hz – 20 kHz (+5 dB / 3 dB)
Internal Mic Dynamic Range 112 dB (A-weighted), 111 dB (unweighted)
Headphone Max Output Level -1 dBV
Headphone Frequency Response 19 Hz – 19 kHz (+0.5 dB / 3 dB)
Headphone Dynamic Range 100 dB (A-weighted), 98 dB (unweighted)
Max Headphone Power 1.5 mW @ 8Ω, 1 kHz sine wave
Battery Type Shure SB906 Rechargeable Li-Ion
Battery Life Up to 17 hours
Battery Charge Time 4 hours (docked in MXW APXD2)
Dimensions (H x W x D) 3.99" (101.5 mm) x 1.85" (47 mm) x 0.93" (23.5 mm)
Weight (with Battery) 0.21 lbs (0.10 kg )
