Shure MXW8 Microflex Wireless Desktop Base Gooseneck Transmitter (Base Only) (Discontinued)

Name: Shure MXW8 Microflex Wireless Desktop Base Gooseneck Transmitter (Base Only) (Discontinued)
Brand: Shure
SKU: SHURE-MXW8=-Z10
Price: 715 USD
Availability: OutOfStock

Write a Review

Part #:

MXW8=-Z10

Model #:

MXW8

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

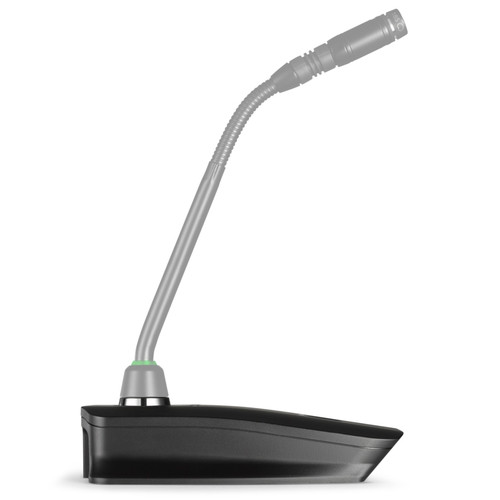

The Shure MXW8 is a desktop gooseneck base transmitter compatible with Microflex Wireless Systems. With a stylish, contoured design and minimal footprint it complements any conference setting.

Description

Shure MXW8 Desktop Transmitter Base

The MXW8 accepts Microflex gooseneck microphones available in multiple lengths with polar pattern and LED options. All Microflex Wireless transmitters deliver pristine audio quality, intelligent wireless performance, encrypted transmission, and advanced rechargeability for conferencing and presentation applications.

Features

Wide frequency response: Full-range audio for clear voice transmission
Concealed power switch: Prevents accidental powering off
Bi-directional wireless: Enables return channel audio and real-time remote control of all wireless microphone settings, including light ring indication
Earphone output: Listen to audio from a return channel for translation, cueing, or program material
Programmable mute button: Customize local or remote muting behavior per application, with options including push-to-talk, push-to-mute, and external control
Encrypted wireless: AES 256-bit encryption for secure wireless transmission
Wide working range: Reliable wireless coverage extends up to 160 feet (50 meters)
Out-of-range alert: Emits beeping sound when range limit is exceeded
Easy wireless linking: Assign the microphone to an access point channel by simply docking it in a networked charging station and pressing "Link"
Advanced Li-ion batteries: Smart lithium-ion internal batteries provide up to 9 hours of continuous use, charge fully in 2 hours, and enable remote monitoring over the network of remaining runtime and charge status in hours and minutes
Standby mode: Enabled remotely during periods of inactivity to significantly extend battery life when not in use
Low-battery LED: Visually alerts when there are 30 minutes of charge remaining
USB charging: Connects to any standard USB power source for "always on" usage. Charge time using SBC-USB adapter: <3.5 hours while mic is in use

Specifications

Gain Adjustment Range	-25 to +15 dB (in 1 dB steps)
Maximum Input Level (Mic gain @ -16 dB)	−9 dBV
Headphone Output	3.5 mm (1/8"), dual mono (will drive stereo phones)
Maximum Headphone Output Powe	17.5 mW r(1kHz @ 1% distortion, peak power, @16Ω)
Antenna Type	Internal, Spacial Diversity, Linear Polarization
Battery Type	Rechargeable Li-Ion
Battery Life	Up to 9 hours
Charge Connector	USB 3.0 Type A
Housing	Molded Plastic
Recommended Storage Temperature Range	0°C (32°F) to 25°C (77°F)
Microphone Connector	6-pin connector for Shure MX405/10/15
Configuration	Unbalanced
Input Impedance (@ 1 kHz)	>20 kΩ
Dimensions H x W x D	1.4" (36 mm) x 2.8" (71 mm) x 4.9" (24 mm)
Weight	0.425 lbs (193 g) (6.8 oz) with batteries, without microphone
