The Shure PGXD14/93 is a wireless lavalier microphone system and is part of the PGX-D wireless systems family. With its state-of-the-art, 24-bit digital audio and trusted Shure microphones, it delivers stunning sound and a strong, clean RF signal.

Description

The PGXD14/93 Lavalier Wireless System is part of the PGX-D wireless systems family.

PGX-D Digital Wireless, with state-of-the-art, 24-bit digital audio and trusted Shure microphones, delivers stunning sound and a strong, clean RF signal.

It includes the PGXD4 receiver, PGXD1 bodypack transmitter, WL93 lavalier microphone, tie clip, power supply, 2 AA batteries, carrying case, and user guide.

Features

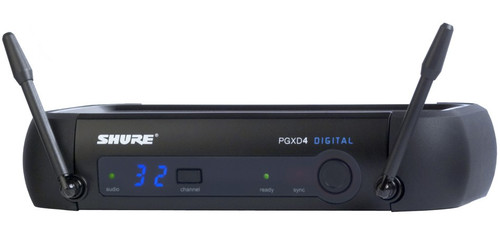

PGXD4 Wireless Receiver:

24-bit / 48kHz digital technology for incredibly accurate sound
Automatic frequency selection locates a clear channel instantly
One-touch sync automatically syncs the transmitter and receiver
True digital diversity for rock-solid wireless signal reliability
Up to 5 compatible channels per frequency band
1/4" and XLR audio outputs
Included padded carrying case for portability and protection

PGXD1 Wireless Bodypack Transmitter:

Rugged, compact bodypack with belt clip
20 Hz – 20 kHz frequency range captures every nuance of tone
Power, mute, and battery status LED
200 ft (60 m) operating range
Up to 10 hours of continuous use from 2 AA batteries
Recessed dial on side provides 26 dB of continuously adjustable gain
Lockable interface prevents accidental setting change

WL93 Lavalier Microphone:

Subminiature lavalier design; ideal size for theater, television, broadcasting, video, film, and sound reinforcement
Small, inconspicuous mounting hardware
Full, clear sound comparable to larger microphones
Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
Controlled low-frequency rolloff reduces low-frequency clothing and room noise
Low distortion, wide dynamic range
Uniform omnidirectional polar pattern
Preamplifier assembly (SM93) can be pocketed, strapped to the body, or clipped to belt or waistband
Wide-range phantom powering (SM93) accepts all commonly used voltages

Specifications

PGXD4 Wireless Receiver
Audio Output Level (ref. ± 38 kHz Deviation, 1 kHz Tone)	XLR connector (into 3000 Ω load): -2.5 dBV, 1/4" connector (into 10000 Ω load): +10 dB
Impedance	XLR: 50 Ω, 1/4": 50 Ω
Sensitivity	-102 dBm @ 10-5 BER
Image Rejection	> 70 dB, typical
Housing	ABS
XLR Output	Impedance balanced Pin 1: Ground (cable shield) Pin 2: Audio Pin 3: No Audio
Audio LED	Red: 2 dB below clip, Amber: 12 dB below clip, Green: 50 dB below clip
Power Requirements	12-18 Vdc at 150 mA, supplied by external power supply
Pin Assignments	XLR: 1=ground, 2=hot, 3=cold 6.35 mm (1/4") TRS: Tip=audio, Ring=no audio, Sleeve=ground
Dimensions (H x W x D)	1.6" (40 mm) x 7.125" (181 mm) x 4.1" (104 mm)
Weight	0.64 lbs (0.29 kg)
PGXD1 Wireless Bodypack Transmitter
Audio Input Level	+10 dBV maximum, at minimum gain setting,-16 dBV maximum, at maximum gain setting
Gain Adjustment Range	26 dB
Input Impedance	1 M ohms
RF Output Level	RF Output Level10 mW maximum (dependent on applicable country regulations)
Housing	Molded polycarbonate case
Power Requirements	2 AA batteries
Battery Life	Up to 10 hours
Dimensions (H x W x D)	2.50" (64 mm) x 4.25" (108 mm) x 0.75" (19 mm)
Weight (without Batteries)	0.28 lbs (0.13 kg)
WL185 Lavalier Microphone
Type	Condenser (electret bias)
Frequency Response	50 to 20,000 Hz
Polar Pattern	Omnidirectional, uniform with frequency
Output Impedance	3000 ohms
Output Level (1 Pascal = 94 dB SPL)	Open Circuit Voltage: -38 dBV/Pa (13 mV)
Output Clipping Level (at 1,000 Hz)	0.25 V at 120 dB
Total Harmonic Distortion	Less than 1% at 120 dB
Maximum SPL	120 dB
Dynamic Range (Maximum SPL to A-Weighted Noise Level)	102 dB
Output Noise (Equivalent SPL)	18 dB typical, A-weighted
Signal-to-Noise Ratio	76 dB at 94 dB SPL (IEC 651)
Recommended Operating Voltage	2 to 10 V; 5 V nominal (pin 2 to pins 3 and 4)
Current Drain	40 microA typical
Case	Microphone: Black ABS thermoplastic case with stainless-steel-mesh grille
Weight	0.036 lbs (0.016 kg)
