Shure PGXD14/PGA31 Digital Wireless System (Discontinued)

Shure PGXD14/PGA31 Digital Wireless System (Discontinued)

Name: Shure PGXD14/PGA31 Digital Wireless System (Discontinued)
Brand: Shure
SKU: SHURE-PGXD14/PGA31
Price: 429 USD
Availability: OutOfStock

Write a Review

Part #:

PGXD14/PGA31-X8

Model #:

PGXD14/PGA31

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The PGXD14/PGA31 is a Digital Headset Wireless System. Includes PGXD4 Wireless Receiver, PGXD1 Bodypack Transmitter and PG30 Headset Microphone.

Description

The PGXD14/PGA31 is Digital Headset Wireless System. Includes PGXD4 Wireless Receiver, PGXD1 Bodypack Transmitter and PG30 Headset Microphone.

The Shure PGXD4 receiver offers innovative 24-bit, 48 kHz digital audio technology for wireless that sounds like wired. True digital diversity means two antennas and two independent receivers are constantly working to provide rock-solid RF signal, and one touch scan finds a clear frequency instantly, making set up a snap.

Powerful yet compact, the PGXD1 transmits wireless audio from instrument or microphone sources with pure digital clarity and rock-solid reliability.

Headset Condenser Microphone for use with Shure Performance Gear and PGX Wireless Systems.

Features

PGXD4 Features:
24-bit / 48kHz digital technology for incredibly accurate sound.
Automatic frequency selection locates a clear channel instantly.
One-touch sync automatically syncs the transmitter and receiver.
True digital diversity for rock-solid wireless signal reliability.
Up to 5 compatible channels per frequency band.
1/4" and XLR audio outputs.
Included padded carrying case for portability and protection.
PGXD1 Features:
Rugged, compact bodypack with belt clip.
20 Hz – 20 kHz frequency range captures every nuance of tone.
Power, mute, and battery status LED.
200 ft (60 m) operating range.
Up to 10 hours of continuous use from 2 AA batteries.
Recessed dial on side provides 26 dB of continuously adjustable gain.
Lockable interface prevents accidental setting change.

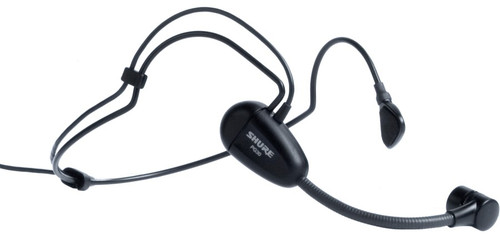

PG30 Features:
Comfortable wireframe for secure fit.
Smooth, natural frequency response comparable to quality handheld microphones.
Reliable at temperature and humidity extremes.

Specifications

Audio Output Level	XLR connector (into 3000 Ω load): -2.5 dBV, 1/4 inch connector (into 10000 Ω load): +10 dB
Impedance	XLR: 50 Ω, 1/4 inch: 50 Ω
Sensitivity	-102 dBm @ 10-5 BER
Image Rejection	> 70 dB, typical
Housing	ABS
XLR Output	Impedance balanced Pin 1: Ground (cable shield) Pin 2: Audio Pin 3: No Audio
Audio LED	Red: 2 dB below clip, Amber: 12 dB below clip, Green: 50 dB below clip
Power Requirements	12-18 Vdc at 150 mA, supplied by external power supply
Pin Assignments	XLR: 1=ground, 2=hot, 3=cold 6.35 mm (1/4") TRS: Tip=audio, Ring=no audio,Sleeve=ground
Dimensions (W x H x D)	7.125 in x 1.6 in x 4.1 in (181 mm x 40 mm x 104 mm)
Audio Input Level	+10 dBV maximum, at minimum gain setting, -16 dBV maximum, at maximum gain setting
Gain Adjustment Range	26 dB
Input Impedance	1 M ohms
RF Output Level	RF Output Level 10 mW maximum (dependent on applicable country regulations)
Housing	Molded polycarbonate case
Power Requirements	2 AA batteries
Battery Life	Up to 10 hours
Dimensions (W x H x D)	2.50 x 4.25 x 0.75 in. (64 mm x 108 mm x 19 mm)
Weight	128 grams (4.5 oz.) without batteries
Type	Condenser, electret bias
Frequency Response	60Hz to 18,000Hz (see Frequency Chart)
Polar Pattern	Cardioid (unidirectional)
Output Impedance	1200Ω @1kHz
Output Level	-52dBV/Pa (2.5 mV)
Signal to Noise Ratio	61dB, 1kHz at 1 Pa
Maximum SPL	125dB
Dynamic Range	92dB
Output Noise	33dB (typical, A-Weighted)
Recommended Operating Voltage	+5VDC, 10V max (pin 2 to pin 1)
Cable	1.27 m (50 in.) two-conductor shielded
Connector	Mini TA4F
Net Weight	51.6 g (1.82 oz)
