Part # QLXD124/85

Model # QLXD124/85

Featuring an SM58 handheld wireless microphone transmitter and WL185 lavalier microphone, QLXD124/85 combines professional features with simplified setup and operation.

Availability:

*Frequency Bands

* Required Fields

Pro Acoustics Price Price $1,549.00

Qty:

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Featuring an SM58 handheld wireless microphone transmitter and WL185 lavalier microphone, QLXD124/85 combines professional features with simplified setup and operation.

The QLXD124/85 Handheld and Lavalier Combo Wireless Microphone System is part of the QLX-D wireless systems family.

QLX-D delivers outstanding wireless functionality ideal for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.

Note: Bodypack and handheld transmitters cannot be used simultaneously.

Features

Features

QLXD1 Wireless Bodypack Transmitter:

Over 120 dB of dynamic range: no transmitter gain adjustments needed
AES 256-bit encryption for secure transmission
Optional Shure SB900A lithium ion rechargeable battery reports remaining runtime in hours and minutes
External charging contacts for docked charging
Backlit LCD with easy to navigate menu and controls
Selectable display mode showing group/channel, frequency, or battery runtime
4-Pin male mini connector (TA4M)
Rugged metal construction
Detachable ¼ wave antenna
Frequency and power lockout

QLXD2/SM58 Handheld Wireless Microphone Transmitter:

24-Bit digital audio quality
Incredibly efficient RF spectrum usage
Quick syncing with a wireless receiver over IR at the push of a button
Clear, uninterrupted signal over the entire operating range
AES 256-bit encryption for secure transmission
Over 120 dB of dynamic range: no transmitter gain adjustment needed
1, 10 mW selectable RF output power
Optional Shure SB900A lithium ion rechargeable battery reports remaining runtime in hours and minutes
External charging contacts for docked charging
Backlit LCD with easy to navigate menu and controls
Selectable display mode showing group/channel, frequency, or battery runtime
Rugged metal construction
Frequency and power lockout

QLXD4 Digital Wireless Receiver:

64 MHz tuning bandwidth (region dependent)
More than 60 preset compatible channels per frequency band (region dependent)
Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
Digital predictive switching diversity ensures solid RF connection
AES 256-bit encryption for secure wireless transmission
Up to 60 dB of adjustable audio gain
High-contrast LCD menu and controls with lockout feature
Audio and RF LED meters with peak indicator
Detachable ½ wave antennas
Mic / line switchable XLR output
¼" Instrument output
Durable aluminum construction with brushed finish

Specification

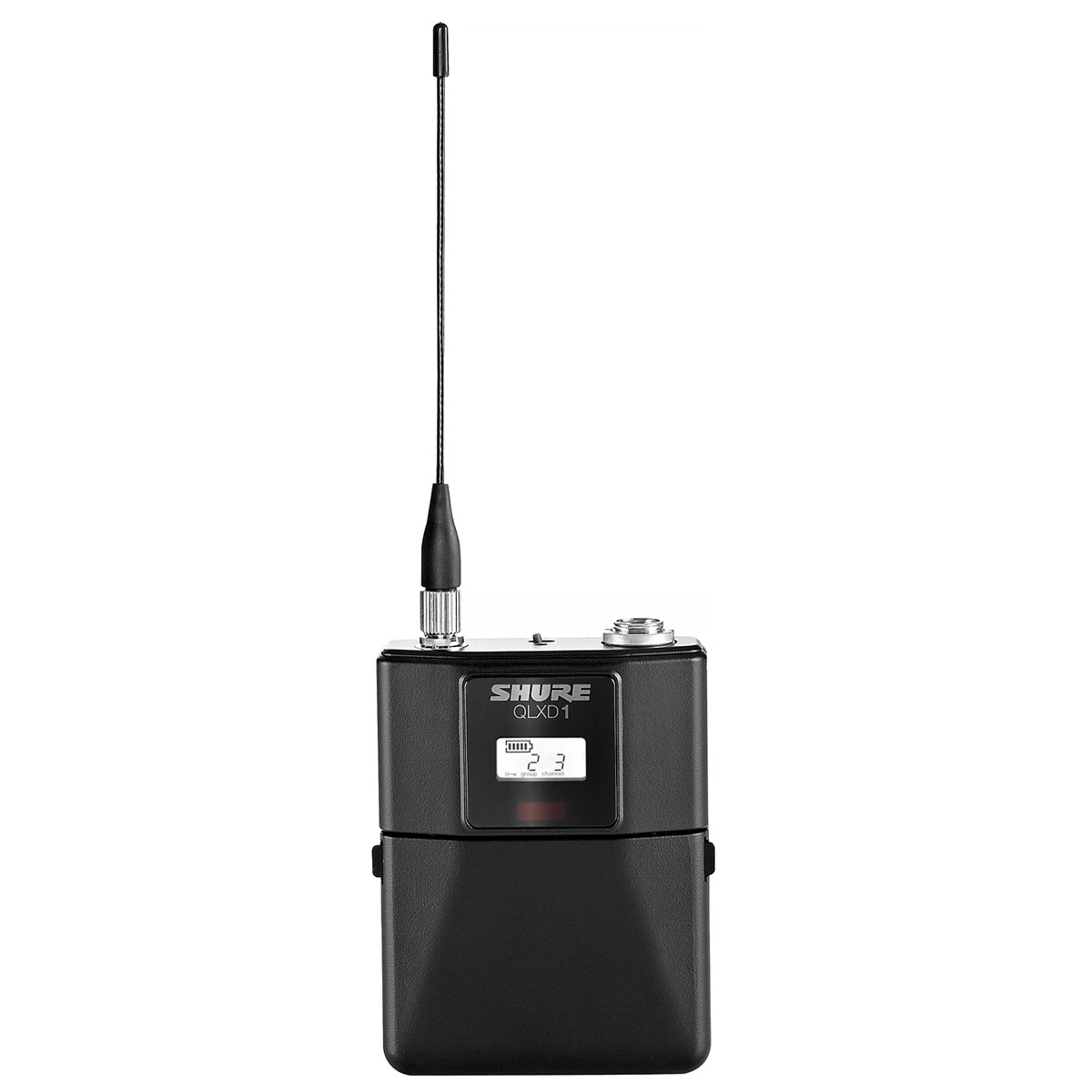

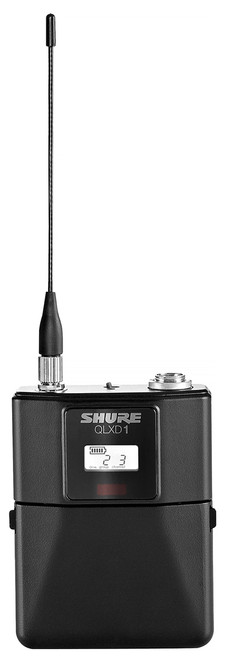

QLXD1 Wireless Bodypack Transmitter
Mic Offset Range	0 to 21 dB (in 3 dB Steps)
Battery Type	Shure SB900 Rechargeable Li-Ion or AA Batteries 1.5 V
Battery Runtime	@ 10 mW Shure SB900 - Up to10 Hours Alkaline - Up to 9 Hours
Housing	Cast Aluminum
Audio Input
Connector	4-Pin Male Mini Connector (TA4M)
Configuration	Unbalanced
Impedance	1 MΩ
Maximum Input Level	1 kHz at 1% THD 8.5 dBV (7.5 Vpp)
Preamplifier Equivalent Input Noise (EIN)	System Gain Setting ≥ +20 -120 dBV, A-Weighted, Typical
RF Output
Connector	SMA
Antenna Type	1/4 Wave
Impedance	50 Ω
Occupied Bandwidth	<200 kHz
Modulation Type	Shure Proprietary Digital
Power	1 mW or 10 mW
Dimensions (H x W x D)	3.38" (86 mm) x 2.57" (65 mm) x 0.92" (23 mm)
Weight	0.306 lbs (0.138 kg)

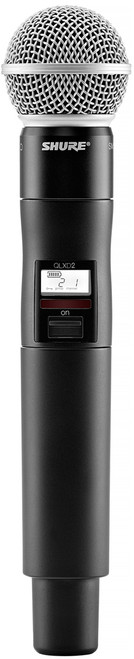

QLXD2 Wireless Handheld Transmitter
Mic Offset Range	0 to 21 dB (in 3 dB Steps)
Battery Type	Shure SB900 Rechargeable Li-Ion or AA Batteries 1.5V
Battery Runtime @ 10 mW	Shure SB900: Up to 10 Hours; Alkaline: Up to 9 Hours
Housing	Machined Aluminum
Audio Input
Configuration	Unbalanced
Maximum Input Level (1 kHz at 1% THD)	145 dB SPL (SM58), Typical
RF Output
Antenna Type	Integrated Single Band Helical
Occupied Bandwidth	<200 kHz
Modulation Type	Shure Proprietary Digital
Power	1 mW or 10 mW
Dimensions (Dia x L)	2" (51 mm) x 10.1" (256 mm)
Weight	0.76 lbs (0.35 kg)
QLXD4 Digital Wireless Receiver
Power Requirements	12V DC @ 0.4 A, Supplied By External Power Supply (Tip Positive)
Housing	Steel
RF Input
Spurious Rejection	>80 dB, Typical
Connector Type	BNC
Impedance	50 Ω
Audio Output
Gain Adjustment Range	-18 to +42 dB in 1 dB Steps
Configuration 1/4	Impedance Balanced (Tip=Audio, Ring=No Audio, Sleeve=Ground)
Configuration XLR	Balanced (1=Ground, 2=Audio+, 3=Audio−)
Impedance	1/4" (6.35 mm): 100 Ω (50 Ω Unbalanced) XLR: 100 Ω
Full Scale Output	1/4" (6.35 mm): +12 dBV XLR: LINE Setting= +18 dBV, MIC Setting=−12 dBV
Mic/Line Switch	30 dB Pad
Phantom Power Protection	1/4" (6.35 mm): Yes XLR: Yes
Networking
Network Interface	Single Port Ethernet 10/100 Mbps
Network Addressing Capability	DHCP or Manual IP Address
Maximum Ethernet Cable Length	100 m (328 ft)
Dimensions (H x W x D)	1.63" (41 mm) x 7.75" (197 mm) x 5.94" (151 mm)
Weight	1.71 lbs (0.78 kg) Without Antennas

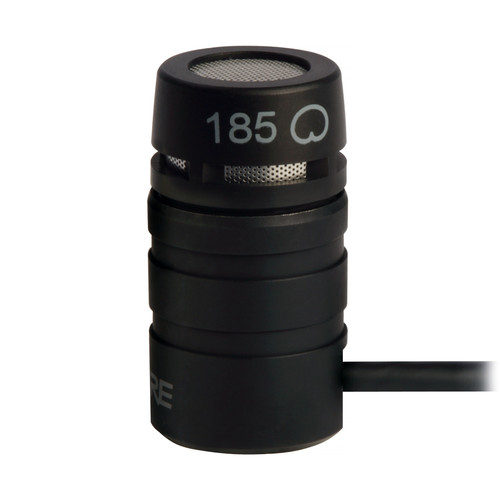

WL185 Lavalier Condenser Microphone
Type	Condenser (Electret Bias)
Frequency Response	50 to 20,000 Hz
Polar Pattern	Omnidirectional, Uniform with Frequency
Output Impedance	3000 Ω
Sensitivity	-38 dBV/Pa (1 Pa = 94 dB SPL)
Maximum Sound Pressure Level	120 dB SPL
Dynamic Range	102 dB
Output Noise (A-Weighted)	18 dB SPL
Polarity	Positive Pressure on Microphone Diaphragm Produces Positive Voltage on Pin 3 with Respect to Pin 1 (Ground)
Power Requirements	Regulated Nominal +5 Vdc (2 Vdc to 10 Vdc) Source Provided at Microphone Connector Pin 2 Relative to Pin 1 of a Shure Wireless Body-Pack Transmitter
