The Shure QLXD14/85 delivers outstanding wireless functionality and is ideal for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces.

Description

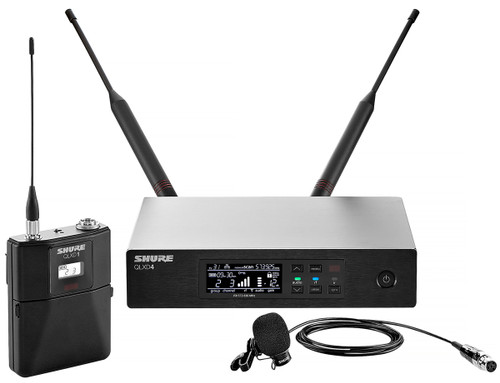

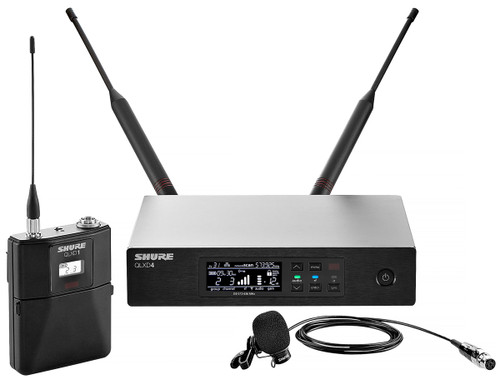

The QLXD14/85 Lavalier Wireless Microphone System is part of the QLX-D wireless systems family.

QLX-D® delivers outstanding wireless functionality and is ideal for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.

Features

QLXD4 Digital Wireless Receiver:

64 MHz tuning bandwidth (region dependent)
More than 60 preset compatible channels per frequency band (region dependent)
Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
Digital predictive switching diversity ensures solid RF connection
AES 256-bit encryption for secure wireless transmission
Up to 60 dB of adjustable audio gain
High-contrast LCD menu and controls with lockout feature
Audio and RF LED meters with peak indicator
Detachable 1/2 wave antennas
Mic / line switchable XLR output
1/4” Instrument output
Durable aluminum construction with brushed finish

QLXD1 Wireless Bodypack Transmitter:

Over 120 dB of dynamic range: no transmitter gain adjustments needed
AES 256-bit encryption for secure transmission
Optional Shure SB900 lithium ion rechargeable battery reports remaining runtime in hours and minutes
External charging contacts for docked charging
Backlit LCD with easy to navigate menu and controls
Selectable display mode showing group/channel, frequency, or battery runtime
4-Pin male mini connector (TA4M)
Rugged metal construction
Detachable 1/4 wave antenna
Frequency and power lockout

WL185 Lavalier Microphone:

Cardioid
Recommended for general purpose sound reinforcement applications requiring good rejection of ambient noise
Use of windscreen highly recommended
Pickup angle: 130 degrees

Specifications

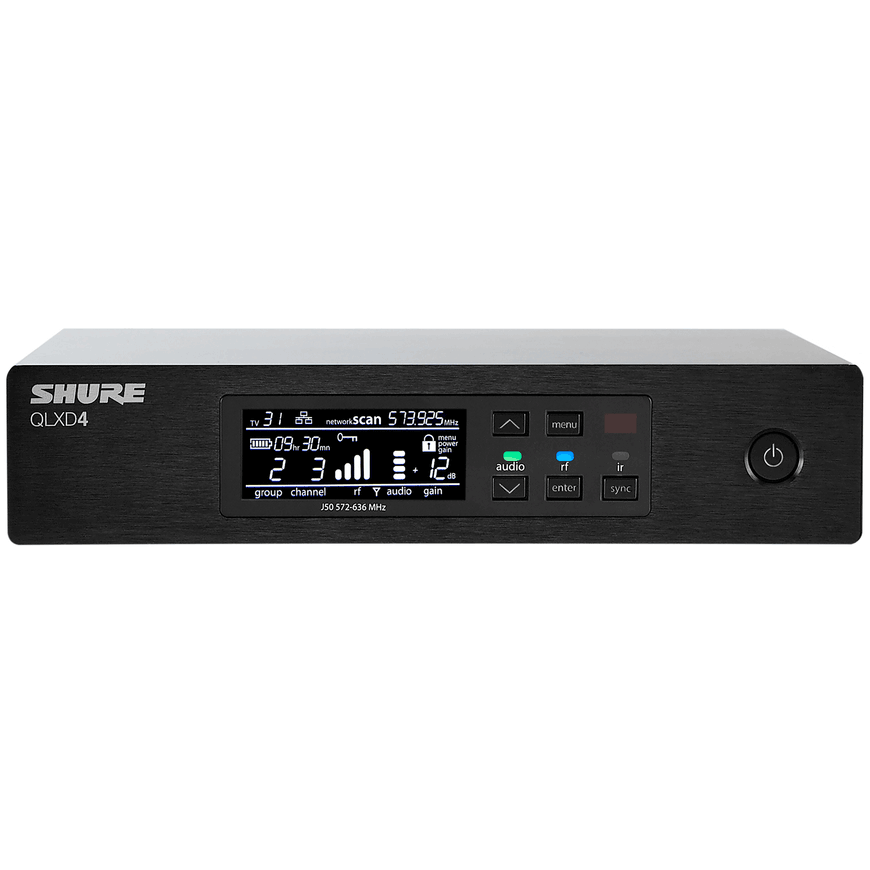

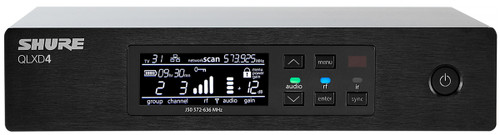

QLXD4 Digital Wireless Receiver
RF Input
Spurious Rejection	>80 dB, typical
Connector Type	BNC
Impedance	50 Ω
Audio Output
Gain Adjustment Range	-18 to +42 dB in 1 dB steps
Configuration 1/4	Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
Configuration XLR	Balanced (1=ground, 2=audio + , 3=audio − )
Impedance	1/4 " (6.35 mm): 100 Ω (50 Ω Unbalanced) XLR: 100 Ω
Full Scale Output	1/4" (6.35 mm): +12 dBV XLR: LINE setting= +18 dBV, MIC setting= − 12 dBV
Mic/Line Switch	30 dB pad
Phantom Power Protection	1/4 " (6.35 mm): Yes XLR: Yes
Networking
Network Interface	Single Port Ethernet 10/100 Mbps
Maximum Ethernet Cable Length	328 ft (100 m)
Housing	Steel
Power requirements	12 V DC @ 0.4 A, supplied by external power supply (tip positive)
Dimensions (H x W x D)	1.63" (41 mm) x 7.75" (197 mm) x 5.94" (151 mm)
Weight (without Antennas)	1.71 lbs (0.78 kg)
QLXD1 Wireless Bodypack Transmitter
Audio Input
Connector	4-pin male mini connector (TA4M)
Configuration	Configuration
Impedance	1 MΩ
Maximum Input Level (1 kHz at 1% THD)	8.5 dBV (7.5 Vpp)
Preamplifier Equivalent Input Noise (EIN)(System Gain Setting ≥ +20)	120 dBV, A-weighted, typical
RF Output
Connector	SMA
Antenna Type	1/4 wave
Impedance	50 Ω
Occupied Bandwidth
Modulation Type	Shure proprietary digital
Power	1 mW or 10 mW
Mic Offset Range	0 to 21 dB (in 3 dB steps)
Battery Type	Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V
Battery Runtime (@ 10 mW)	Shure SB900: up to 10 hours; Alkaline: up to 9 hours
Housing	Cast aluminum
Dimensions (H x W x D)	3.38" (86 mm) x 2.57" (65 mm) x 0.92" (23 mm)
Weight	0.31 lbs (0.14 kg)

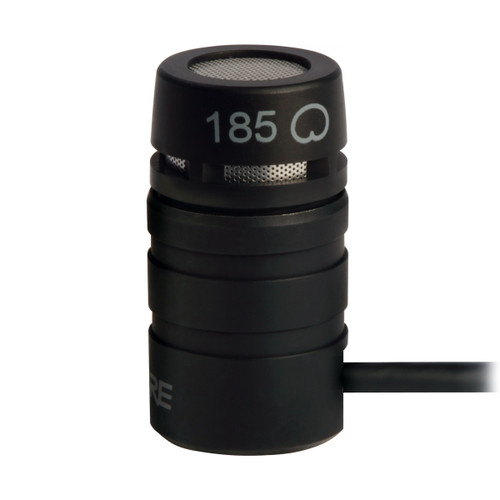

WL185 Lavalier Condenser Microphone
Type	Condenser Cardioid
Frequency Response	50 to 17,000 Hz
lmpedance	1800 ohms
Output Level	-45.5 dBV/Pa
Network Addressing Capability	DHCP or Manual IP address
