Shure SLX14/85 Wireless Lavalier Microphone System (Discontinued)

Description

Details

Sound installations and working bands need powerful wireless tools that can be set up quickly and used confidently. Shure's rugged SLX UHF Wireless Systems exceed these demands with innovative automatic setup features, such as auto frequency scan and transmitter setup, exceptional wireless clarity, and legendary Shure microphones. Supporting 20 compatible systems across multiple UHF frequency bands, SLX smoothly integrates into houses of worship, lecture halls, conference rooms, and mobile gear cases.

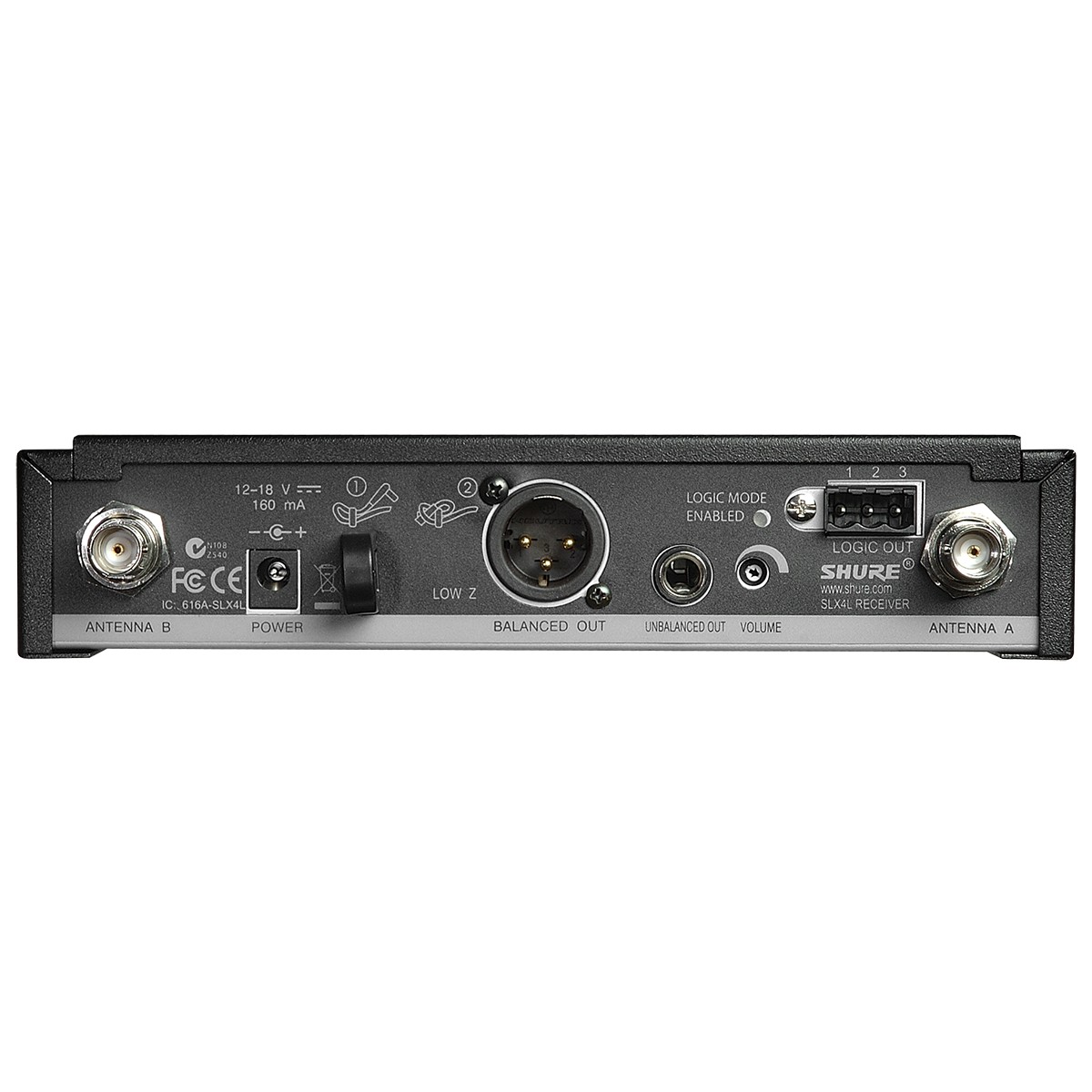

The SLX4 receiver brings unprecedented ease of use to wireless with Automatic Frequency Selection and Automatic Transmitter Setup. With included rack hardware and detachable antennas, it is ready for immediate installation right out of the box.

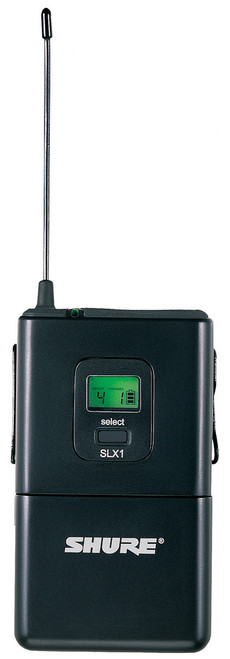

The SLX1 bodypack transmitter is designed to hold up to the most adverse conditions. Whether used with headworn, lavalier, instrument microphones, or with guitars or basses, the SLX1 is the definition of reliability.

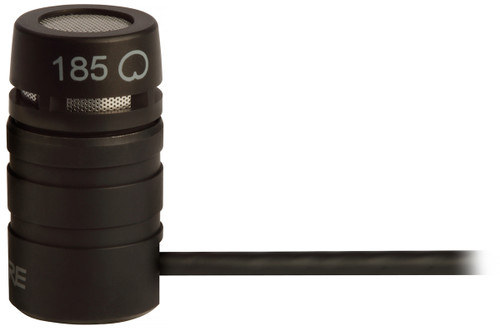

WL185 (Cardioid) is Recommended for general purpose sound reinforcement applications requiring good rejection of ambient noise. Use of windscreen highly recommended. Pickup angle is 130 degrees.

Features

Features

SLX4 Receiver

Automatic Frequency Selection
Automatic Transmitter Setup
960 Selectable frequencies across 24 MHz bandwidth
Detachable 1/4 wave antennas
Microprocessor-controlled diversity
Volume control on rear of unit
1/2 rack design
Furnished rack hardware
Non-slip bumpers for use out of rack
XLR and 1/4" outputs

WL185 Cardioid Lavalier Microphone Features

Pickup angle is 130 degrees. Use of windscreen highly recommended
Designed for general purpose sound reinforcement applications requiring good rejection of ambient noise

SLX1 Transmitter

Automatic Transmitter Setup
Backlit LCD with timeout feature
3-segment battery fuel gauge
2 AA batteries (included) provide 8 hours of continuous use
518 - 782 MHz operating range
WL93 Subminiature Lavalier Microphone
Supplied with a mounting block with attached tie bar, a sew-on mounting bracket
Cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter

Specification

SLX4 Receiver
Audio Output Level	XLR connector (into 600 Ω load): –13 dBV; 1/4" connector (into 3000 Ω load): –2 dBV
Output Impedance	XLR connector: 200 Ω;1/4" connector: 1kΩ
XLR output	Pin 1: Ground, Pin 2: (+), Pin 3: (-)
Sensitivity	–105 dBm for 12 dB SINAD, typical
Image Rejection	>70 dB, typical
Power Requirements	12–18 Vdc at 150 mA, supplied by external power supply
Dimensions (SLX4)	7.76" H x 1.65" W x 5.28" D
Net Weight (SLX4)	1.8 lbs (816 g)
SLX1 Bodypack Transmitter
Gain Adjustment Range	30dB
Input Impedance	1 MΩ
RF Transmitter Output	30 mW maximum (dependent on applicable country regulations)
Housing	Molded ABS case
Power Requirements	2 “AA” size alkaline or rechargeable batteries
Dimensions (SLX1)	2.50" H x 4.25" W x 0.75" D
Net Weight (SLX1)	0.64 lbs (290 g) (without batteries)
WL185 Lavalier Microphone
Frequency Response	50 to 17,000 Hz
Polar Pattern	Omnidirectional, uniform with frequency
Output Impedance	3000 Ω
Sensitivity	-38 dBV/Pa (1 Pa = 94 dB SPL)
Maximum Sound Pressure Level	120 dB SPL
Dynamic Range	102 dB
Output Noise (A-weighted)	18 dB SPL
Polarity	Positive pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1
Power Requirements	Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc)provided at microphone connector pin 2 relative to pin 1
