Shure QLXD14/83 Lavalier Wireless Microphone System (Discontinued)

By Shure

Shure QLXD14/83 Lavalier Wireless Microphone System (Discontinued)

Name: Shure QLXD14/83 Lavalier Wireless Microphone System (Discontinued)
Brand: Shure
SKU: SHURE-QLXD14/83
Price: 1197 USD
Availability: OutOfStock

Write a Review

Part #:

QLXD14/83

Model #:

QLXD14/83

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Featuring the WL183 lavalier microphone, QLXD14/83 combines professional features with simplified setup and operation.

Description

Featuring the WL183 lavalier microphone, QLXD14/83 combines professional features with simplified setup and operation.

The QLXD14/83 Lavalier Wireless Microphone System is part of the QLX-D wireless systems family.

QLX-D® delivers outstanding wireless functionality ideal for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.

Features

QLXD4 Digital Wireless Receiver:

64 MHz tuning bandwidth (region dependent)
More than 60 preset compatible channels per frequency band (region dependent)
Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
Digital predictive switching diversity ensures solid RF connection
AES 256-bit encryption for secure wireless transmission
Up to 60 dB of adjustable audio gain
High-contrast LCD menu and controls with lockout feature
Audio and RF LED meters with peak indicator
Detachable ½ wave antennas
Mic / line switchable XLR output
¼" Instrument output
Durable aluminum construction with brushed finish

QLXD1 Wireless Bodypack Transmitter:

Over 120 dB of dynamic range: no transmitter gain adjustments needed
AES 256-bit encryption for secure transmission
Optional Shure SB900A lithium ion rechargeable battery reports remaining runtime in hours and minutes
External charging contacts for docked charging
Backlit LCD with easy to navigate menu and controls
Selectable display mode showing group/channel, frequency, or battery runtime
4-Pin male mini connector (TA4M)
Rugged metal construction
Detachable ¼ wave antenna
Frequency and power lockout

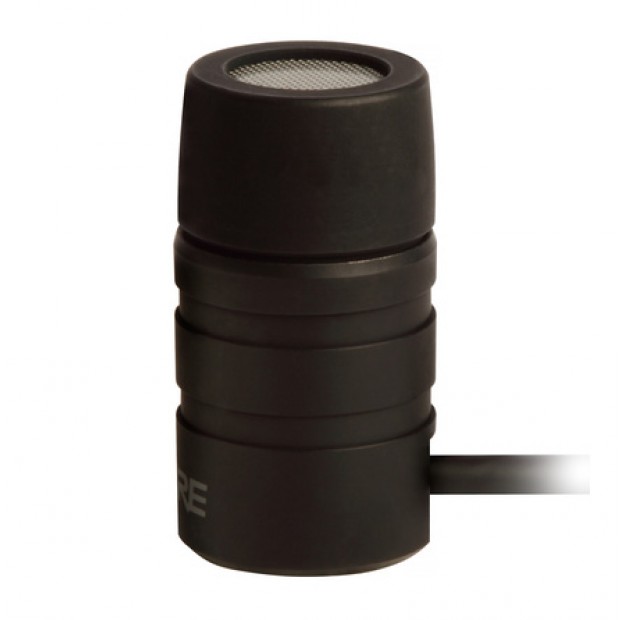

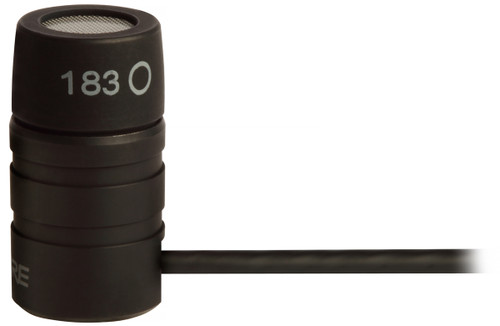

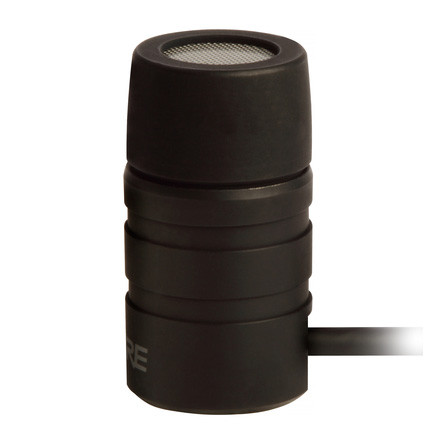

WL183 Lavalier Condenser Microphone:

Applications - Live Vocals and Video / Broadcast / ENG
Microphone Type - Condenser
Polar Pattern - OmniDirectional
Frequency Response - Tailored
Form Factor - Lavalier
Model Line - Other

Specifications

QLX-D System
RF Carrier Frequency Range	470–937.5 MHz, Varies by Region
Image Rejection	>70 dB, Typical
Latency
RF Sensitivity	-97 dBm at 10-5 BER
Working Range	100 m (328 ft.) Line-of-Sight Note: Actual Range Depends on RF Signal Absorption, Reflection and Interference.
Audio Frequency Range	20 Hz to 20 kHz Note: Dependent on Microphone Type
Audio Dynamic Range (System Gain @ +10)	>120 dB, A-Weighted, Typical
Total Harmonic Distortion	< 0.1% (−12 dBFS Input, System Gain @ +10)
Operating Temperature Range	-18°C (0°F) to 50°C (122°F) Note: Battery characteristics may limit this range
QLXD4 Digital Wireless Receiver
Power Requirements	12V DC @ 0.4 A, Supplied By External Power Supply (Tip Positive)
Housing	Steel
Spurious Rejection	>80 dB, Typical
Connector Type	BNC
Impedance	50 Ω
Gain Adjustment Range	-18 to +42 dB in 1 dB Steps
Configuration 1/4	Impedance Balanced (Tip=Audio, Ring=No Audio, Sleeve=Ground)
Configuration XLR	Balanced (1=Ground, 2=Audio+, 3=Audio−)
Impedance	1/4" (6.35 mm): 100 Ω (50 Ω Unbalanced) XLR: 100 Ω
Full Scale Output	1/4" (6.35 mm): +12 dBV XLR: LINE Setting= +18 dBV, MIC Setting=−12 dBV
Mic/Line Switch	30 dB Pad
Phantom Power Protection	1/4" (6.35 mm): Yes XLR: Yes
Network Interface	Single Port Ethernet 10/100 Mbps
Network Addressing Capability	DHCP or Manual IP Address
Maximum Ethernet Cable Length	100 m (328 ft)
Dimensions (H x W x D)	1.63" (41 mm) x 7.75" (197 mm) x 5.94" (151 mm)
Weight	1.71 lbs (0.78 kg) Without Antennas
QLXD1 Wireless Bodypack Transmitter
Mic Offset Range	0 to 21 dB (in 3 dB Steps)
Battery Type	Shure SB900 Rechargeable Li-Ion or AA Batteries 1.5 V
Battery Runtime	@ 10 mW Shure SB900 - Up to10 Hours Alkaline - Up to 9 Hours
Housing	Cast Aluminum
Connector	4-Pin Male Mini Connector (TA4M)
Configuration	Unbalanced
Impedance	1 MΩ
Maximum Input Level	1 kHz at 1% THD 8.5 dBV (7.5 Vpp)
Preamplifier Equivalent Input Noise (EIN)	System Gain Setting ≥ +20 -120 dBV, A-Weighted, Typical
Connector	SMA
Antenna Type	1/4 Wave
Impedance	50 Ω
Occupied Bandwidth
Modulation Type	Shure Proprietary Digital
Power	1 mW or 10 mW
Dimensions (H x W x D)	3.38" (86 mm) x 2.57" (65 mm) x 0.92" (23 mm)
Weight	0.306 lbs (0.138 kg)
WL183 Lavalier Condenser Microphone
Type	Condenser (Electret Bias)
Frequency Response	50 to 20,000 Hz
Polar Pattern	Omnidirectional, Uniform with Frequency
Output Impedance	3000 Ω
Sensitivity	-38 dBV/Pa (1 Pa = 94 dB SPL)
Maximum Sound Pressure Level	120 dB SPL
Dynamic Range	102 dB
Output Noise (A-Weighted)	18 dB SPL
Polarity	Positive Pressure on Microphone Diaphragm Produces Positive Voltage on Pin 3 with Respect to Pin 1 (Ground)
Power Requirements	Regulated Nominal +5 Vdc (2 Vdc to 10 Vdc) Source Provided at Microphone Connector Pin 2 Relative to Pin 1 of a Shure Wireless Body-Pack Transmitter
