Shure SLX14/84 Wireless Lavalier Microphone System

Home /
Shure SLX14/84 Wireless Lavalier Microphone System (Discontinued)

Description

Details

Sound installations and working bands need powerful wireless tools that can be set up quickly and used confidently. Shure's rugged SLX UHF Wireless Systems exceed these demands with innovative automatic setup features, such as auto frequency scan and transmitter setup, exceptional wireless clarity, and legendary Shure microphones. Supporting 20 compatible systems across multiple UHF frequency bands, SLX smoothly integrates into houses of worship, lecture halls, conference rooms, and mobile gear cases. Includes WL184 lavalier microphone, SLX1 bodypack transmitter, SLX4 receiver, tie clip, rackmount kit, two 1/4 wave antennas, power supply, 2 AA batteries, protective bumpers with 8 screws, vinyl bag, and user guide.

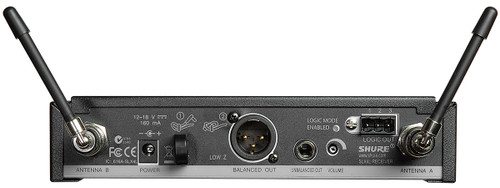

The SLX4 receiver brings unprecedented ease of use to wireless with Automatic Frequency Selection and Automatic Transmitter Setup. With included rack hardware and detachable antennas, it is ready for immediate installation right out of the box.

The SLX1 bodypack transmitter is designed to hold up to the most adverse conditions. Whether used with headworn, lavalier, instrument microphones, or with guitars or basses, the SLX1 is the definition of reliability.

The WL184 (Supercardioid) is Recommended for sound reinforcement applications requiring high rejection of ambient noise and narrow pickup angle. Use of windscreen highly recommended. Pickup angle is 115 degrees.

Features

Features

SLX4 Diversity Receiver:

Automatic Frequency Selection
Automatic Transmitter Setup
960 Selectable frequencies across 24 MHz bandwidth
Detachable 1/4 wave antennas
Microprocessor-controlled diversity
RF presence LED
5-segment audio meter
Multi-function, backlit LCD
Low battery indicator
Frequency and power lockout
Rugged metal chassis
Volume control on rear of unit
1/2 rack design
Furnished rack hardware
Non-slip bumpers for use out of rack
XLR and 1/4" outputs
Optional logic functionality for software echo cancellation and remote battery life monitoring

WL184 Lavalier Condenser Microphone:

Use of windscreen highly recommended
Pickup angle: 115 degrees

SLX1 Bodypack Transmitter:

Automatic Transmitter Setup
Backlit LCD with timeout feature
Frequency and power lockout
3-segment battery fuel gauge
2 AA batteries (included) provide 8 hours continuous use
470 - 782 MHz operating range

Specification

SLX4 Receiver
Audio Output Level	XLR connector (into 600 Ω load): –13 dBV 1/4 inch connector (into 3000 Ω load): –2 dBV
Output Impedance	XLR connector: 200 Ω, 1/4 inch connector: 1kΩ
XLR Output	Pin 1: Ground, Pin 2: (+), Pin 3: (-)
Image Rejection	>70 dB, typical
Power Requirements	12–18 Vdc at 150 mA, supplied by external power supply
Dimensions (W x H x D) (SLX4)	7.76 x 1.65 x 5.28 Inch
Net Weight (SLX4)	816 g (1 lb. 13 oz.)
WL184 Lavalier Condensor Microphone
Type	Condenser (electret bias)
Polar Pattern	Supercardioid
Frequency Response	50 to 17,000 Hz
Output Impedance	1800 Ω
Dynamic Range	102.5 dB
Output Noise (A-weighted)	27.0 dB SPL
Maximum Sound Pressure Level	129.5 dB SPL
Sensitivity (1 Pa = 94 dB SPL)	-44.5 dBV/Pa
Polarity	Positive pressure on diaphragm produces positive voltageon pins 3 and 4 relative to pin 1
SLX1 Bodypack Transmitter
Gain Adjustment Range	30dB
Input Impedance	1 MΩ
RF Transmitter Output	30 mW maximum (dependent on applicable country regulations)
Housing	Molded ABS case
Power Requirements	2 “AA” size alkaline or rechargeable batteries
Dimensions (W x H x D) (SLX1)	2.50 x 4.25 x 0.75 Inch
Net Weight (SLX1)	290 grams (10.2 oz.) without batteries
