The Shure SLX24/BETA87A is a wireless handheld system which Includes SLX2/Beta87A Handheld Transmitter with Beta 87A Microphone & SLX4 Diversity Receiver, Supports 20 Compatible Systems Across Multiple UHF Frequency Bands.

Description

Sound installations and working bands need powerful wireless tools that can be set up quickly and used confidently. Shure's rugged SLX Wireless Systems exceed these demands with innovative setup features such as auto frequency scan with transmitter setup, exceptional wireless clarity, and legendary Shure microphones.

SLX Wireless Systems feature the Shure patented Audio Reference Companding for clear sound beyond the limits of conventional wireless technology.

The SLX Wireless Systems feature a wide variety of industry-standard handheld vocal microphones.  SLX Wireless Handheld Transmitters includes timed backlit LCD display, frequency and power lockout, and "Mute" functionality.The transmitter design allows for interchangeable microphone cartridges.  Options include the BETA 87A, BETA 87C, BETA 58A, SM86, and the legendary SM58. For use with SLX Wireless systems.

The SLX4 receiver brings unprecedented ease of use to wireless with Automatic Frequency Selection and Automatic Transmitter Setup. For use with SLX Wireless. With included rack hardware and detachable antennas, it is ready for immediate installation right out of the box. Model SLX4L is available with logic output for use with software echo cancellation and remote battery life monitoring. Logic-enabled transmitters include MX690 and MX890.

The Shure Beta 87A is a premium quality supercardioid hand-held electret condenser vocal microphone with exceptionally smooth frequency response and high sound pressure level capability. Used for professional sound reinforcement, broadcasting, and studio recording applications, the Beta 87A combines superb performance with the ruggedness needed for touring and field production.

The Beta 87A features a controlled low-frequency roll-off that compensates for proximity effect and prevents the “boomy” sound often associated with close pick-up. The characteristic Shure presence rise brightens the upper midrange. The tight supercardioid pattern, with null points at approximately 125 degrees, provides maximum isolation from other vocalists or instruments while offering minimal off-axis coloration. The Beta 87A operates on phantom power.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features

SLX4 Diversity Receiver:

  • Automatic Frequency Selection
  • Automatic Transmitter Setup
  • 960 Selectable frequencies across 24 MHz bandwidth
  • Detachable 1/4 wave antennas
  • Microprocessor-controlled diversity
  • RF presence LED
  • 5-segment audio meter
  • Multi-function, backlit LCD
  • Low battery indicator
  • Frequency and power lockout
  • Rugged metal chassis
  • Volume control on rear of unit
  • 1/2 rack design
  • Furnished rack hardware
  • Non-slip bumpers for use out of rack
  • XLR and 1/4" outputs
  • Optional logic functionality for software echo cancellation and remote battery life monitoring

BETA 87A Vocal Microphone:

  • Smooth frequency response with gradual presence rise
  • Highly consistent supercardioid polar pattern provides superior gain-before-feedback
  • Electronic low-frequency roll-off compensates for proximity effect
  • Wide dynamic range (117 dB) and low distortion characteristics
  • Very low susceptibility to RFI and electromagnetic hum
  • Advanced cartridge shock-mount system absorbs mechanical shocks and reduces handling noise
  • Built-in pop filter reduces undesirable wind and breath sounds
  • Legendary Shure quality and reliability

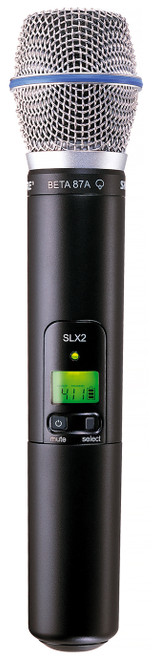

SLX2 Handheld Transmitter:

  • Automatic Transmitter Setup
  • Backlit LCD with timeout feature
  • Frequency and power lockout
  • 3-segment battery fuel gauge
  • 2 AA batteries (included) provide 8 hours of continuous use
  • 470 - 782 MHz operating range
  • Interchangeable cartridges: Beta 87A, Beta87C, Beta 58A, SM86, and the legendary SM58

Specifications

SLX4 Receiver
Audio Output Level XLR connector (into 600 Ω load): –13 dBV 1/4 inch connector (into 3000 Ω load): –2 dBV
Output Impedance XLR connector: 200 Ω, 1/4 inch connector: 1kΩ
XLR output Pin 1: Ground, Pin 2: (+), Pin 3: (-)
Sensitivity –105 dBm for 12 dB SINAD, typical
Image Rejection >70 dB, typical
Power Requirements 12–18 Vdc at 150 mA, supplied by external power supply
Dimensions (H x W x D) 1.65" (42mm) x 7.76" (197mm) x 5.28" (134mm)
Weight 1.79 lbs (816 g)
BETA87A
Cartridge Type Condenser
Frequency Response 50 to 20,000 Hz
Polar Pattern Supercardioid
Output Impedance 150 ohms
Sensitivity (at 1,000 Hz) Open Circuit Voltage -52.5 dBV/Pa (2 mV)
Clipping Level (at 1,000 Hz) 1000 ohm Load: -6 dBV (0.5 V)
Maximum SPL 140.5 dB (0.25% THD, 1000 ohm load)
Self-Noise 23.5 dB typical, A-weighted 25.5 dB typical, weighted per DIN 45 405
Dynamic Range 117 dB
Signal-to-Noise Ratio 70.5 dB at 94 dB SPL
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Connector Three-pin (XLR) professional audio
Weight 0.456 lbs (207 g)
SLX2 Handheld Transmitter
Audio Input Level +2 dBV maximum at -10dB position, -8 dBV maximum at 0dB position
Gain Adjustment Range 10dB
RF Transmitter Output 30 mW maximum (dependent on applicable country regulations)
Housing Molded PC/ABS handle and battery cup
Power Requirements 2 “AA” size alkaline or rechargeable batteries
Battery Life >8 hours (alkaline)
Dimensions (Dia x L) (Including BETA87A Cartridge) 10" (254 mm) x 2" (51 mm)
Weight (without Batteries) 0.64 lbs (290 g)

DOCUMENTS

System Includes

  • (1) SLX4 Diversity Receiver
  • (1) BETA 87A Vocal Microphone
  • (1) SLX2 Handheld Transmitter
