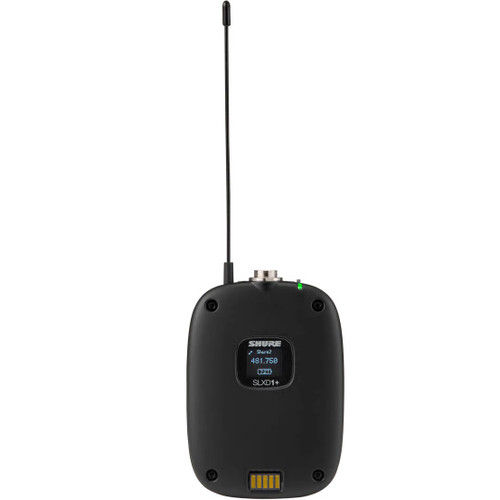

The SLXD14+/93 digital wireless system combines the SLXD1+ bodypack transmitter with the miniature WL93 omnidirectional lavalier microphone to provide clear, natural 24-bit digital audio with over 118 dB of dynamic range. Designed for both seasoned audio engineers and dedicated volunteers, this system delivers dependable wireless performance with a wide 138 MHz tuning range, supporting up to 14 simultaneous systems in 8 MHz TV bands.
With Automatic Setup, linked SLX-D+ receivers and transmitters maintain a stable connection even in challenging RF environments. ShowLink technology allows remote adjustment of transmitter parameters directly from the receiver, including frequency changes, power-level control, locking and unlocking controls, and firmware updates. Full system monitoring and control are available through Wireless Workbench desktop software or the WWB Mobile app, via Wi-Fi or Bluetooth.
Each SLX-D+ system includes AES-256 encryption for secure audio transmission and Shure's Digital Feedback Reducer to minimize unwanted feedback automatically. Powered by two AA batteries or optional Shure SB903 rechargeable Li-ion batteries, the system provides up to 8 hours of continuous operation, making it ideal for presentations, broadcasts, houses of worship, corporate events, and live performance.
| SLXD4+ | |
|---|---|
| Power Requirements | 15 VDC @ 360 mA |
| Connector Type | BNC |
| Impedance | 50Ω |
| Gain Adjustment Range | -18 to +42 dB in 1 dB steps |
| Network Interface | Single Port Ethernet 10/100 Mbps |
| Maximum Cable Length | 100 m (328 ft) |
| Dimensions (H x W x D) | 1.65" (42 mm) x 7.76" (197 mm) x 5.98" (152 mm) |
| Weight | 2 lbs (0.91 kg) |
| SLXD1+ | |
| Connector | 4-pin male mini connector (TA4M) |
| Impedance | 1 MΩ |
| Maximum Input Level | 8.2 dBV (2.57 Vrms, 7.27 Vpp) |
| Antenna Type | 1/4 Wave |
| Power | 1 mW or 10 mW |
| Battery Type | Rechargeable Li-Ion or 1.5 V AA batteries |
| Dimensions (H x W x D) | 3.86" (98 mm) x 2.68" (68 mm) x 1" (25.5 mm) |
| Weight | 0.20 lbs (0.09 kg) |
| WL93 | |
| Type | Condenser (electret bias) |
| Frequency Response | 50 Hz - 20,000 Hz |
| Polar Pattern | Omnidirectional |
| Maximum SPL | 120 dB |
| Signal-to-Noise Ratio | 76 dB at 94 dB SPL |
| Dynamic Range | 102 dB |
