Shure SLXD15+/85M Wireless Cardioid Lavalier System
The SLXD15+/85M portable digital camera-mount wireless cardioid lavalier microphone system delivers professional-grade wireless audio for videographers, ENG crews, filmmakers, and field production teams. Combining the SLXD5+ portable receiver, SLXD1+ bodypack transmitter, and low-profile WL185M cardioid lavalier microphone, this system ensures clear, focused vocal capture in demanding environments.
With transparent 24-bit digital audio and over 118 dB of dynamic range, the SLXD15+/85M provides natural sound reproduction and dependable UHF performance across a wide 138 MHz tuning range. ShowLink Ease technology keeps transmitters and receivers synchronized while allowing remote frequency coordination, power adjustments, lock control, and firmware updates directly from the receiver or via Wireless Workbench and the WWB Mobile app.
Designed for portability and durability, the rugged metal SLXD5+ mounts directly to a camera cold shoe or fits easily into an audio bag. Dual 1/8" outputs offer headphone monitoring and switchable line/mic output flexibility. With AES-256 encrypted transmission, Shure Digital Feedback Reducer technology, and up to 8 hours of battery life on the transmitter, the SLXD15+/85M is built to deliver secure, reliable wireless performance wherever production takes you.
- Features
Features
- Portable digital wireless lavalier system for video and field production
- Includes SLXD5+ receiver, SLXD1+ transmitter and WL185M cardioid lav mic
- 24-bit digital audio with >118 dB dynamic rang
- Wide 138 MHz UHF tuning range for reliable RF performance
- ShowLink Ease remote transmitter control and automatic frequency management
- Dual 1/8" outputs: headphone monitor + switchable line/mic output
- Multi-Mic Mode for fast multi-system syncing
- AES-256 encrypted wireless transmission for secure audio
- Shure Digital Feedback Reducer for automatic feedback control
- Rugged metal construction, camera-mount ready
- Up to 8 hrs. transmitter/5.5 hrs. receiver battery life
- Specification
SLXD5+ Spurious Rejection >75 dB (Typical) Impedance 50Ω Phantom Power Protection Yes Antenna Type 1/4 Wave Whip Audio Frequency Response 20 Hz - 20 kHz (+1, -3 dB) Connector Type 1/8" (3.5 mm), x2 Configuration Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground
Dual Mono: Tip = left, Ring = Right, Sleeve = GroundImpedance (Camera) Balanced (Mono) Line: 450Ω
Balanced (Mono) Mic: 240Ω
Dual Mono Line: 400Ω
Dual Mono Mic: 200ΩFull Scale Output Camera (Balanced Line): 15 dBV
Headphone: 13 mW @ 64Ω LoadPower Requirements Battery: Rechargeable Li-Ion or 1.5V AA batteries
Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-CHousing Aluminum Dimensions (H x W x D) 4.21" (107 mm) x 2.68" (68 mm) x 1" (25.3 mm) Weight 1.8 lbs (0.82 kg) SLXD1+ Connector 4-pin male mini connector (TA4M) Impedance 1 MΩ Maximum Input Level 8.2 dBV (2.57 Vrms, 7.27 Vpp) Antenna Type 1/4 Wave Power 1 mW or 10 mW Battery Type Rechargeable Li-Ion or 1.5 V AA batteries Dimensions (H x W x D) 3.86" (98 mm) x 2.68" (68 mm) x 1" (25.5 mm) Weight 0.20 lbs (0.09 kg) WL185m Type Condenser Frequency Response 70 to 20,000 Hz Output Impedance 95Ω (Using RPM400 preamplifier) Sensitivity -43.5 dBV/Pa Maximum SPL 140.5 dB SPL Dynamic Range 120.5 dB - Documents
Documents

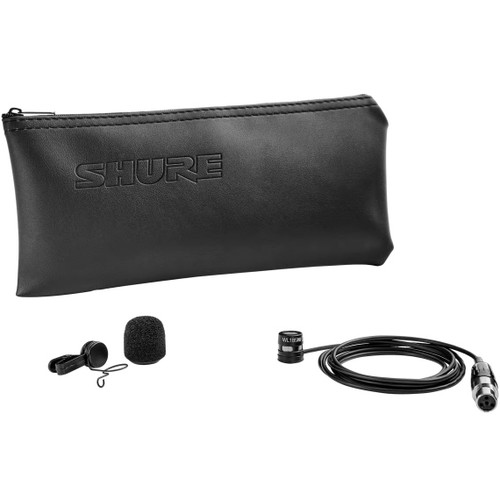

- In The Box
In The Box
- (1) SLXD5+ Single-Channel Portable Wireless Receiver
- (1) SLXD1+ Bodypack Transmitter
- (1) WL185m Low-Profile Cardioid Lavalier Microphone
- (1) Single-Mount Tie Clip
- (1) Snap-Fit Windscreen
- (4) AA Batteris
- (2) Audio Cables
- (1) WA311 Non-Conductive Cold Shoe Mount Adapter
