Shure ULXS14 Wireless Instrument Microphone System (Discontinued)

Part # ULXS14
Model # ULXS14

ULX® Standard UHF wireless represents a breakthrough in performance and price for both working musicians and professional sound installers.

Description

Details

ULX® Standard UHF wireless represents a breakthrough in performance and price for both working musicians and professional sound installers. Over 1400 selectable, pre-programmed frequencies are available, and Automatic Frequency Selection provides a straight shot to a clear channel. The ULXS14/85 includes ULXS4 Diversity Receiver, ULX1 Bodypack Transmitter and WL185 Lavalier Mic. The feature set of the versatile ULXS4 receiver offers a direct path to full, clear audio signals, unencumbered and unattached. The low-profile, highly durable body-pack ULX1 has all the characteristics to meet the demands of high performance. For use with headworn, lavalier and instrument microphones, as well as guitars and basses. Attaches to belt, waistband or guitar strap with clip for hands-free mobility. The WA302 instrument cable connects the body-pack transmitter to a guitar or other instrument. Features a 2.5 foot (.75 m), length with 1/4-inch plug and 4-pin mini connector (TA4F) (supplied with instrument systems).

Features

Features

ULXS4 Receiver:

  • Automatic Frequency Selection with group scan function
  • Over 1400 selectable frequencies
  • 5-segment transmitted audio signal strength meter
  • 3-segment transmitter battery fuel gauge
  • Advanced multi-function LCD displays group and channel
  • Remotable 1/2-wave antenna
  • XLR and 1/4-inch output

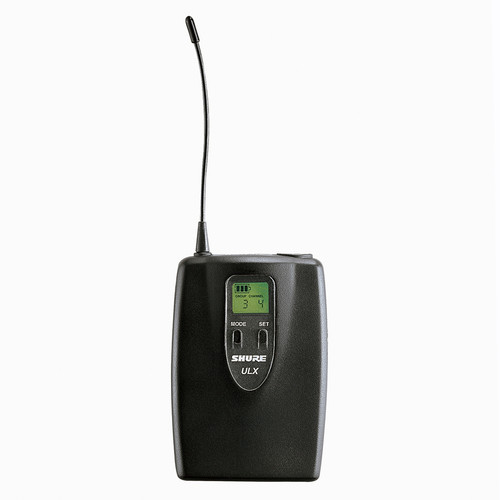

ULX1 Transmitter:

  • Three-segment battery fuel gauge
  • Flexible 1/4 wave antenna
  • TA4F mini four-pin input connector
  • Backlit LCD display shows group and channel setting
  • PEAK icon appears when audio input overloads the transmitter
  • 8 hour battery life (9V battery)
  • 300 foot (100m) operating range

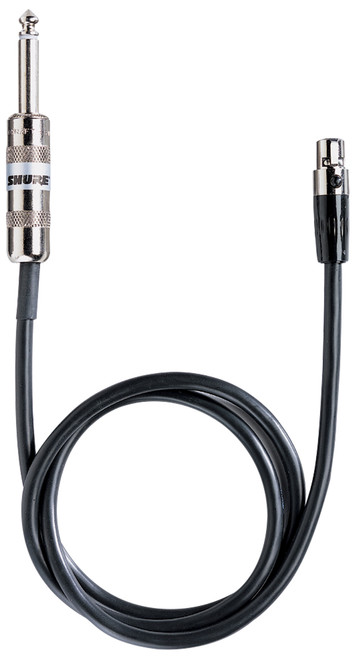

WA302 Guitar Cable:

  • 2.5 foot (.75 m), length with 1/4-inch plug and 4-pin mini connector (TA4F) (supplied with instrument systems)
Specification
ULXS4 Receiver
RF Carrier Frequency Range554.000 to 865.000 MHz
Effective Range100 m (300 ft.)
Audio Frequency Response25 to 15,000 Hz, ±2 dB
ULX1 Transmitter
Gain Adjustment Range25 dB
Impedance1 Megaohm
Modulation±38 kHz deviation compressor-expander system with pre- and de-emphasis
RF Power Output30 mW maximum
Dynamic Range>100 dB, A-weighted
RF Sensitivity1.26 µV for 12 dB SINAD (typical)
Image Rejection80 dB typical
Spurious Rejection75 dB typical
Ultimate Quieting>105 dB, A-weighted
System Distortion0.3% total harmonic distortion, typical
Power Requirements9V alkaline battery (Duracell MN1604 recommended); 8.4V Nicad optional
Battery Life8 to 9 hours
Dimensions (W x H x D) (ULXS4)8.56 x 1.72 x 6.52 inch
Dimensions (W x H x D) (ULXS1)2.68 x 3.86 x 1.10 Inch
Net Weight (ULXS4)1049 g (2 lbs, 5 oz)
Net Weight (ULX1)79 g (2.8 oz) without battery
