SoundTube CM52-BGM-II In-Ceiling Speaker

SoundTube CM52-BGM-II 5.25" In-Ceiling Speaker with Seamless Magnetic Grille - Black

By SoundTube

SoundTube CM52-BGM-II 5.25" In-Ceiling Speaker with Seamless Magnetic Grille - Black

Name: SoundTube CM52-BGM-II 5.25" In-Ceiling Speaker with Seamless Magnetic Grille - Black
Brand: SoundTube
SKU: SOUNDT-CM52-BGM-II-BK
Price: 292 USD
Availability: InStock

Write a Review

Part #:

CM52-BGM-II-WH + GRL-CM-BGM-II-BK

Model #:

CM52-BGM-II

Current Stock:

Availability: Limited Stock

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The SoundTube CM52-BGM-II features a 5.25" polypropylene woofer with rubber surround and one 0.75" silk dome tweeter. BroadBeam Ring™ technology for mid-range clarity and smooth off-axis performance. Easy-access six-position tap switch for 25 / 70.7 / 100V and transformer bypass settings allows for easy ordering, stocking and installation.

Description

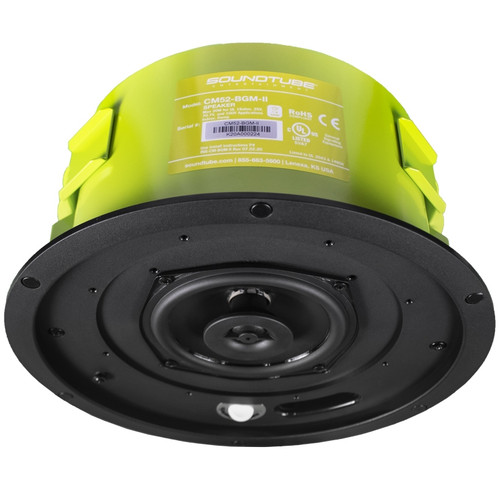

SoundTube CM52-BGM-II 5.25" In-Ceiling Speaker with Seamless Magnetic Black Grille

Features one 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. BroadBeam Ring™ technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 65 Hz (-10 dB). Reduced amplification costs and maximum efficiency of 84.5 dB sensitivity, 16 ohm impedance. Incorporates a painted steel grille for lasting durability. Adaptable to material thicknesses ranging from 0.035 in. (0.9 mm) to 1.6 in. (40.6 mm). UL 1480 and 2043 listed.

Included accessories: Color-coded (orange) tile bridge, UL listed conduit clamp, paint shield.

Features

One 5.25" (134 mm) polypropylene woofer with rubber surround and one 0.75" (19 mm) silk dome tweeter
BroadBeam Ring™ technology for mid-range clarity and smooth off axis performance

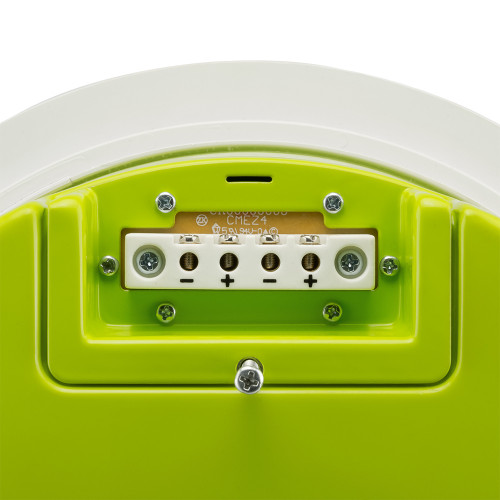

Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation
Tuned port on baffle for added musicality and bass response down to 65 Hz (-10 dB)
Reduced amplification costs and maximum efficiency of 84.5 dB sensitivity, 16 ohm impedance
Incorporates a painted steel grille for lasting durability

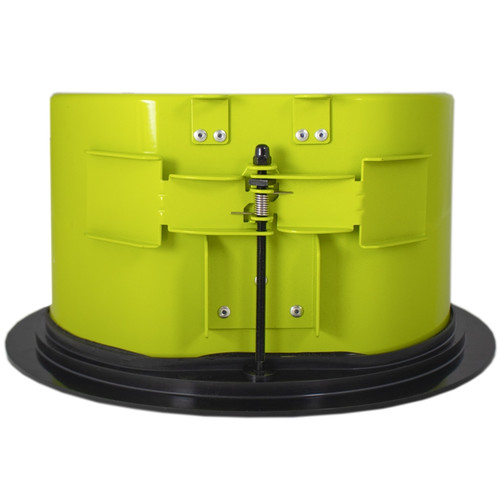

Adaptable to material thicknesses ranging from 0.035 in. (0.9 mm) to 1.6 in. (40.6 mm)
UL 1480 and 2043 approved
Included accessories: Color-coded (orange) tile bridge, UL listed conduit clamp, paint shield

Specifications

Frequency Response (- 3 dB)	67 Hz - 20 kHz
Frequency Response (-10 dB)	56 Hz - 22 kHz
Sensitivity	83.5 dB @ 1W/1M 80.4 dB @ 2.83V/1M
Max. Continuous Power RMS	40W
Max. Program Power	80W
Max SPL dB @ 1 M	100.5 dB
Woofer Driver	5.25" Polypropylene Cone w/Butyl Rubber Surround
Tweeter Driver	0.75" Silk Dome w/BroadBeam Ring®
Certifications	CE, RoHS, UL1480, UL2043
Included Accessories	Conduit Clamp, Cover Plate, Grille, Paint Mask
Optional Accessories	Black Grille (GRL-CM6/8EZ-II-BK) \| Tile Bridge (AC-CMEZ6/8-TB) \| Pre-Construction Bracket (AC-CMEZ6/8-PCB) \| Junction Box (AC-CM-EZ-JBOX)
Packaging	One per box
Backcan Diameter	9.67" (245.6 mm)
Backcan Height	5.75" (146.1 mm)
Visible Diameter	11.75" (298.5 mm)
Visible Height	0.34" (8.6 mm)
Cutout Width/Diameter	10.5" (266.7 mm)
Shipping Weight	9.55 lbs (4.33 kg)

DOCUMENTS

In the Box

(1) CM52-BGM-II
(1) GRL-CM-BGM-II-BK
