SoundTube CM62-BGM-II 6.5" In-Ceiling Speaker with Seamless Magnetic Grille - Black

SoundTube CM62-BGM-II 6.5-Inch In-Ceiling Speaker

The CM62-BGM-II is a high-efficiency 6.5" coaxial two-way blind-mount in-ceiling speaker designed for commercial and residential installations. It features a 6.5" polypropylene woofer with rubber surround and a 1" silk dome tweeter housed in a drawn steel backcan with a tuned port, delivering a full frequency response of 50 Hz - 22 kHz (±10 dB). BroadBeam Ring technology ensures clear mid-range and smooth off-axis dispersion for consistent sound coverage.

Designed for secure, easy installation, the CM62-BGM-II includes a constant-tension fixed-wing mounting system with a 21-gauge steel tile bridge, compatible with drop-tile or sheetrock ceilings. A six-position tap switch allows selection for 25, 70.7, or 100V applications, or transformer bypass, while its 85 dB sensitivity and 16Ω impedance reduce amplification costs and maximize efficiency.

The speaker is shipped with a white magnetic grille for a clean, professional appearance, and includes a black grille for alternative styling. Its powder-coated steel construction ensures durability and long-lasting performance. UL1480 and UL2043 approvals guarantee safe, reliable operation, making the CM62-BGM-II ideal for commercial, hospitality, and residential spaces where both high-quality audio and visual flexibility are essential.

• Shipped in white with an included black magnetic grille for aesthetic versatility

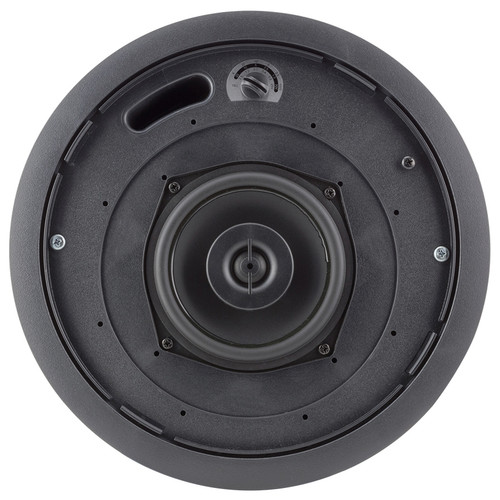

• 6.5" polypropylene woofer + 1" silk dome tweeter for full-range, high-efficiency sound
• BroadBeam Ring technology for clear mid-range and wide off-axis coverage
• Tuned port on baffle enhances bass response down to 50 Hz (±10 dB)

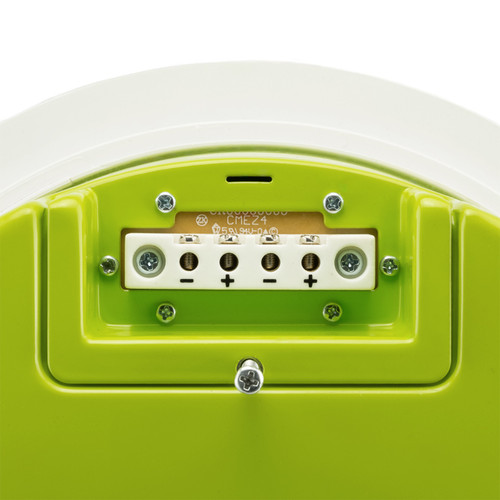

• Six-position tap switch for 25, 70.7, 100V, and transformer bypass
• Constant-tension fixed-wing mounting system with steel tile bridge for secure installation
• Powder-coated steel, flange-less magnetic grille for durability and professional appearance
• UL1480 and UL2043 approved for commercial safety and reliability
• Included accessories: black magnetic grille, tile bridge, UL-listed 0.5" conduit clamp

Tech Sheet

Manual

• (1) CM62-BGM-II-WH Speaker
• (1) GRL-CM-BGM-II-BK Grille
• (1) Flexible Conduit Clamp
• (1) Cover Plate
• (1) Paint Mask
• (1) Tile Bridge
